IPC Rackmount / FS-14840

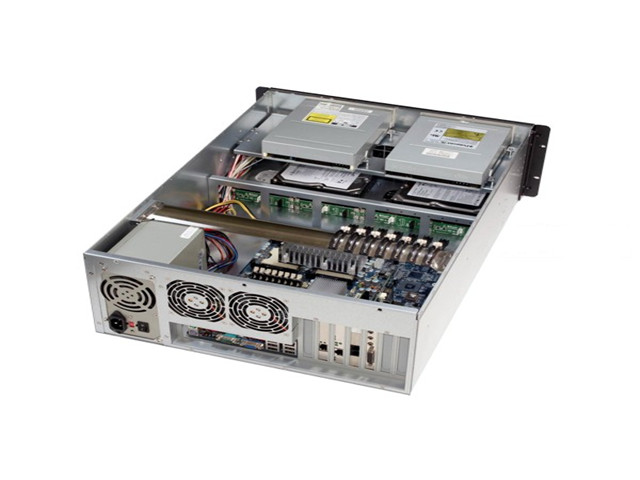

4U Rackmount Chassis for Server Boards
4U 12" × 13" server-board chassis, 24.67 inches deep, seven slots, 5×80 mm, PS2 ATX or mini-redundant.
Product Overview
What the FS-14840 is built for.
FS-14840 is the deep 4U server-board chassis: 19.00 × 6.82 × 24.67 inches, 12" × 13" motherboard support, seven expansion slots, five 80 mm fans, PS2 ATX or mini-redundant PSU, two 5.25" optical bays, internal 2 × 2.5" or 2 × 3.5", and four front 3.5" hot-swap trays. Depth is the integration constraint.
Key Features
Engineered for reliability and integration.
- 4U rackmount server chassis for server motherboards (12" x 13")
- Supports: 7 x expansion slots, 4 x SATA2 drive trays
- Steel construction design for industrial application
- Board support: Server
- Storage: Internal Drive Bay: 2 x 2.5" OR 2 x 3.5" · Optical Drive Bay: 2 x 5.25" · Hot-swap: 4 x 3.5" HDD Tray (Front)
- Expansion: 7
- Cooling: 5 x 80mm fan
- PSU: PS2 ATX or Mini Redundant
Specifications
Technical specifications.
| Model Number | FS-14840 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 4U |
| Motherboard Support | Server |
| Drive Bays | Internal Drive Bay: 2 x 2.5" OR 2 x 3.5" · Optical Drive Bay: 2 x 5.25" · Hot-swap: 4 x 3.5" HDD Tray (Front) |
| Expansion Slots | 7 |
| Cooling | 5 x 80mm fan |
| PSU Support | PS2 ATX or Mini Redundant |
| Front Panel | LED: 1 x Activity; 1 x Power · USB: 2 · Power SW: 1 |
| I/O Shield | Standard I/O |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 40 |
| Mounting | Optional Sliding rails |
| Memory Height | Accepts standard size |
| Dimensions | 19.00" x 6.82" x 24.67" · 482.6 mm x 173.2 mm x 626.6 mm |
| Certification | RoHS compliant |
Applications
Where the FS-14840 is deployed.
Industrial Control
4U IPC chassis for PLC, SCADA, and line controllers.
Machine Vision Host
7 for capture and GPU/FPGA cards.
Factory Storage Node
Internal Drive Bay: 2 x 2.5" OR 2 x 3.5" · Optical Drive Bay: 2 x 5.25" · Hot-swap: 4 x 3.5" HDD Tray (Front)
OEM/ODM Rack IPC
Bezel, PSU, and bay options under a FactorySmith drawing.
Customization Options
Adapt the FS-14840 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-14840 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-14840 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-14840 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
