IPC Rackmount / FS-14940
4U Rackmount Chassis for Server Boards
Shorter 4U server-board chassis (18.10 inches) with fourteen slots and three 12 cm rear fans.
Product Overview
What the FS-14940 is built for.

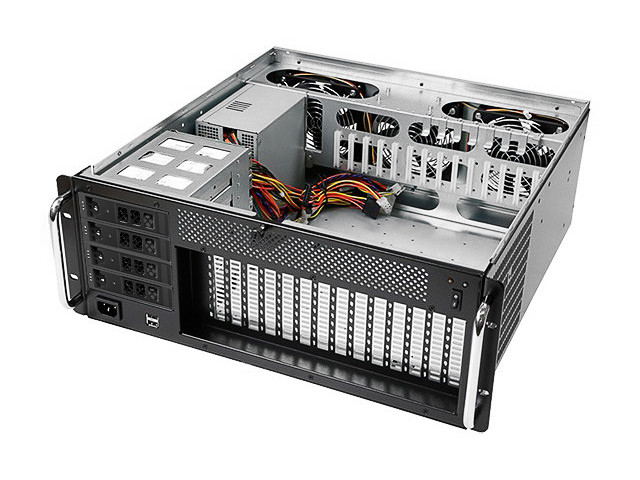

FS-14940 keeps 12" × 13" server-board support in a 18.10 inch-deep 4U with fourteen expansion slots, three 12 cm rear fans, PS2 ATX or mini-redundant PSU, front multi-I/O, and four 3.5" SATA trays. Slot count is the reason to choose it over seven-slot FS-14840/FS-14941.
Key Features
Engineered for reliability and integration.
- 4U rackmount server chassis with 12"x13" server board system
- Support 4 x 3.5" Serial ATA trays
- Multi I/O in the front
- Excellent cooling with 3 x 12cm fan
- Board support: Server board
- Storage: Hot-swap: 4 x 3.5"HDD
- Expansion: 14

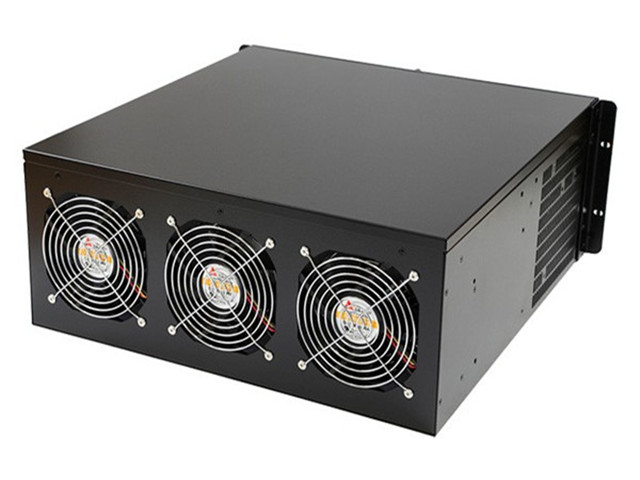

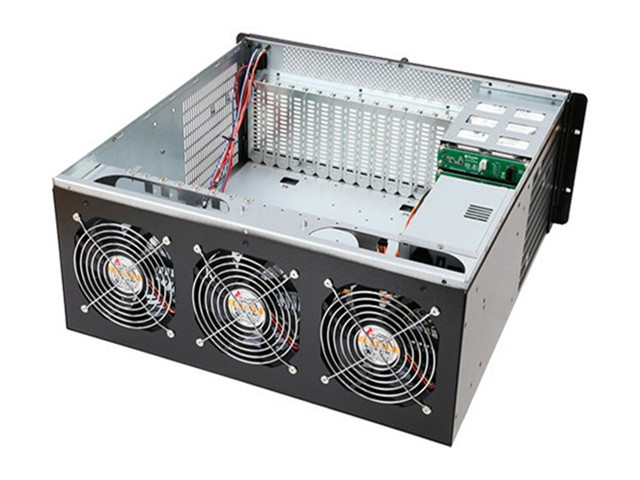

- Cooling: 12cm fan x 3 (at back panel)
Specifications
Technical specifications.
| Model Number | FS-14940 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 4U |
| Motherboard Support | Server board |
| Drive Bays | Hot-swap: 4 x 3.5"HDD |
| Expansion Slots | 14 |
| Cooling | 12cm fan x 3 (at back panel) |
| PSU Support | PS2 ATX or Mini Redundant |
| Front Panel | LED: 2 x disk activity (Orange light) ; 2 x power on (Blue light) · USB: 2 · Power SW: 1 |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint with texture coat |
| Color | Black. Customizable colour |
| Memory Height | Accept standard size |
| Dimensions | 19.00" x 6.92" x 18.10" · 482.6 mm x 175.8 mm x 459.7 mm |
| Certification | RoHS compliant |
Applications
Where the FS-14940 is deployed.
Industrial Control
4U IPC chassis for PLC, SCADA, and line controllers.
Machine Vision Host
14 for capture and GPU/FPGA cards.
Factory Storage Node
Hot-swap: 4 x 3.5"HDD
OEM/ODM Rack IPC
Bezel, PSU, and bay options under a FactorySmith drawing.
Customization Options
Adapt the FS-14940 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-14940 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-14940 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-14940 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
