IPC Rackmount / FS-14941
4U Rackmount Chassis for Server Boards
4U server-board chassis with seven slots, three 12 cm rear fans (features also list 2×8 cm), and PSII.
Product Overview
What the FS-14941 is built for.

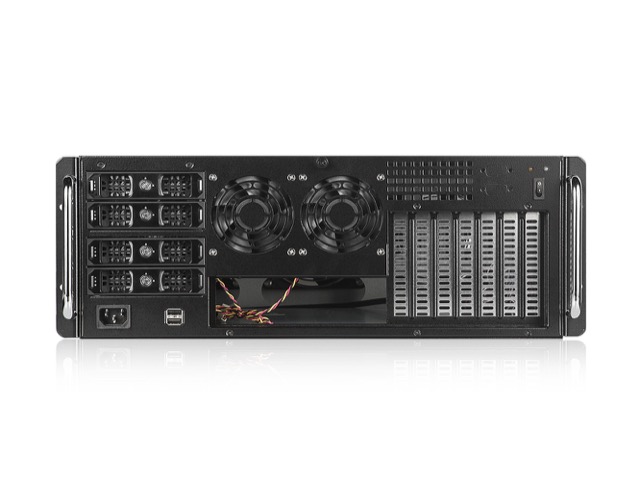

FS-14941 shares FS-14940’s 19.00 × 6.92 × 18.10 inch 4U server-board envelope and four 3.5" trays, but expansion is seven slots and PSU is listed as PSII. Feature text calls out 3 × 12 cm plus 2 × 8 cm cooling; the spec table lists 12 cm ×3 at the back panel. Front multi-I/O matches the FS-14940 family.
Key Features
Engineered for reliability and integration.
- 4U rackmount server chassis with 12"x13" server board system
- Support 4 x 3.5" Serial ATA trays
- Multi I/O in the front
- Excellent cooling with 3 x 12cm and 2 x 8cm fan
- Board support: Server board
- Storage: Hot-swap: 4 x 3.5"HDD
- Expansion: 7

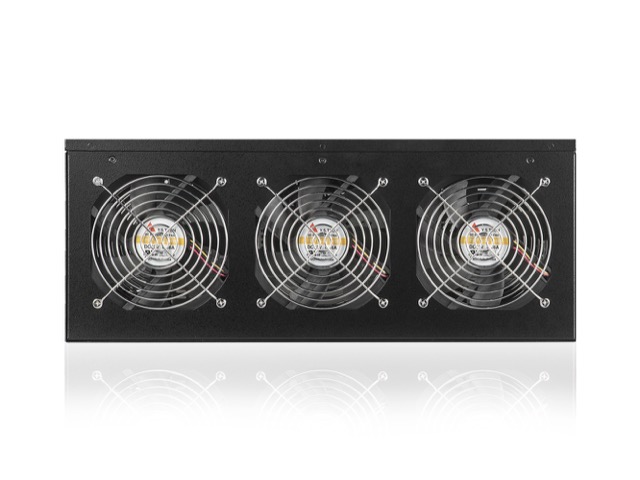

- Cooling: 12cm fan x 3 (at back panel)
Specifications
Technical specifications.
| Model Number | FS-14941 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 4U |
| Motherboard Support | Server board |
| Drive Bays | Hot-swap: 4 x 3.5"HDD |
| Expansion Slots | 7 |
| Cooling | 12cm fan x 3 (at back panel) |
| PSU Support | PSII Supply |
| Front Panel | LED: 2 x disk activity (Orange light) ; 2 x power on (Blue light) · USB: 2 · Power SW: 1 |
| I/O Shield | 1 (not included) |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint with texture coat |
| Color | Black. Customizable colour |
| Memory Height | Accept standard size |
| Dimensions | 19.00" x 6.92" x 18.10" · 482.6 mm x 175.8 mm x 459.7 mm |
| Certification | RoHS compliant |
Applications
Where the FS-14941 is deployed.
Industrial Control
4U IPC chassis for PLC, SCADA, and line controllers.
Machine Vision Host
7 for capture and GPU/FPGA cards.
Factory Storage Node
Hot-swap: 4 x 3.5"HDD
OEM/ODM Rack IPC
Bezel, PSU, and bay options under a FactorySmith drawing.
Customization Options
Adapt the FS-14941 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
