IPC Rackmount / FS-19110
1.5U Mini-ITX Chassis
The shortest 1.5U Mini-ITX — 10.02 inches deep — with one expansion slot and a 3.5" hot-swap tray.
Product Overview
What the FS-19110 is built for.

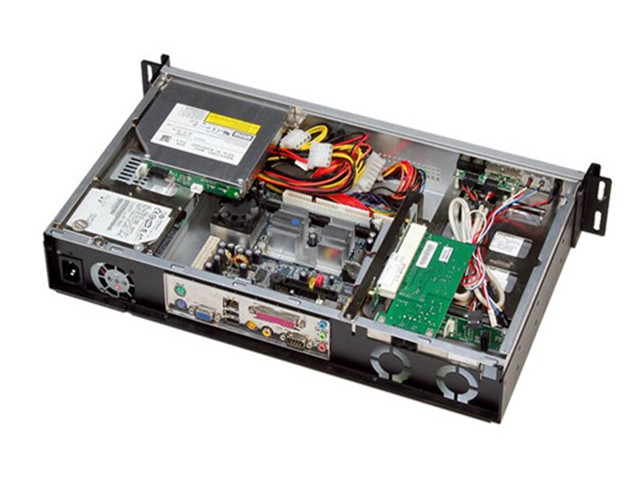

FS-19110 is a 1.5U Mini-ITX in aluminum alloy and CRS: 19.00 × 2.65 × 10.02 inches, Flex ATX, two 40 mm fans, one expansion slot, two internal 2.5", and one 3.5" hot-swap tray. Front USB is 2.0; audio in/out is present. It is the shallow cabinet member of the 1.5U trio.
Key Features
Engineered for reliability and integration.
- 1.5U rackmount server chassis with mini-ITX system
- Design for easy access
- Support hot-swap tray
- Steel construction design for industrial environment
- Board support: Mini-ITX
- Storage: Internal Drive Bay: 2 x 2.5"HDD · Hot-swap: 1 x 3.5"HDD
- Expansion: 1
- Cooling: 4cm fan x 2
Specifications
Technical specifications.
| Model Number | FS-19110 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 1.5U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: 2 x 2.5"HDD · Hot-swap: 1 x 3.5"HDD |
| Expansion Slots | 1 |
| Cooling | 4cm fan x 2 |
| PSU Support | Flex ATX |
| Front Panel | LED: 2 x disk activity (Orange light) ; 2 x power on (Blue light) · USB: 2 (USB 2.0) · Power SW: 1 · Audio: 1 |
| I/O Shield | 1 |
| Material | Aluminum alloy and CRS |
| Finish | Black wet paint textured coat |
| Color | Black. Customizable colour |
| Memory Height | Accept standard size |
| Dimensions | 19.00" x 2.65" x 10.02" · 482.6 mm x 67.3 mm x 254.5 mm |
| Certification | RoHS compliant |
Applications
Where the FS-19110 is deployed.
Industrial Control
1.5U IPC chassis for PLC, SCADA, and line controllers.
Machine Vision Host
1 for capture and GPU/FPGA cards.
Factory Storage Node
Internal Drive Bay: 2 x 2.5"HDD · Hot-swap: 1 x 3.5"HDD
OEM/ODM Rack IPC
Bezel, PSU, and bay options under a FactorySmith drawing.
Customization Options
Adapt the FS-19110 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-19110 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-19110 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-19110 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
