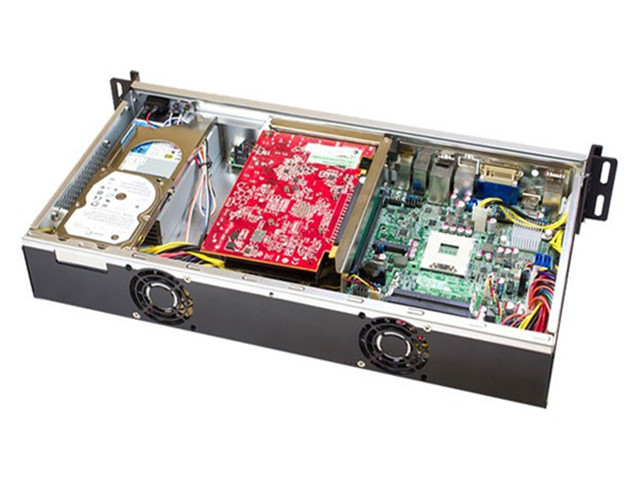

IPC Rackmount / FS-19112
1.5U Mini-ITX Chassis
1.5U Mini-ITX with three internal 3.5", one external 2.5", and 2× PCI or 1× PCI-E.
Product Overview
What the FS-19112 is built for.
FS-19112 trades depth (11.40 inches, 2.55 inch height) for storage and slots: internal 3.5" ×3 plus external 2.5" ×1, two 60 mm fans, and expansion listed as 2× PCI or 1× PCI-E. Flex ATX, front multi-I/O, and customizable color sit on the same 1.5U Mini-ITX program as FS-19110/19120.
Key Features
Engineered for reliability and integration.
- 1.5U rackmount server chassis with mini-ITX system
- Design for easy access
- Support 1 x 2.5" hot-swap tray
- Support 2 x expansion slots
- Multi I/O in the front panel
- Board support: Mini-ITX
- Storage: Internal Drive Bay: Internal: 3.5" x 3; External: 2.5" x 1
- Expansion: 2 x PCI or 1 x PCI-E
Specifications
Technical specifications.
| Model Number | FS-19112 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 1.5U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: Internal: 3.5" x 3; External: 2.5" x 1 |
| Expansion Slots | 2 x PCI or 1 x PCI-E |
| Cooling | 6cm fan x 2 |
| PSU Support | Flex ATX |
| Front Panel | LED: 2 x disk activity (Orange light) ; 2 x power on (Blue light) · USB: 2 · Power SW: 1 |
| I/O Shield | 1 |
| Material | Aluminum alloy and CRS |
| Finish | Black wet paint textured coat |
| Color | Black. Customizable colour |
| Memory Height | Accept standard size |
| Dimensions | 19.00" x 2.55" x 11.40" · 482.6 mm x 64.8 mm x 289.6 mm |
| Certification | RoHS compliant |
Applications
Where the FS-19112 is deployed.
Industrial Control
1.5U IPC chassis for PLC, SCADA, and line controllers.
Machine Vision Host
2 x PCI or 1 x PCI-E for capture and GPU/FPGA cards.
Factory Storage Node
Internal Drive Bay: Internal: 3.5" x 3; External: 2.5" x 1
OEM/ODM Rack IPC
Bezel, PSU, and bay options under a FactorySmith drawing.
Customization Options
Adapt the FS-19112 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-19112 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-19112 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-19112 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
