Drive Cages & Hot-swap Modules / T-CA125-U2
Custom Size 2.5" U.2 NVMe Hot-swap Rack
T-CA125-U2 — Custom Size 2.5" U.2 NVMe Hot-swap Rack. Custom Size; 2.5" U.2 NVMe SSD; U.2 NVMe; Key Lock; 2.85" x 0.81" x 4.11". Listed as Coming Soon on iStarUSA.
Product Overview
What the T-CA125-U2 is built for.

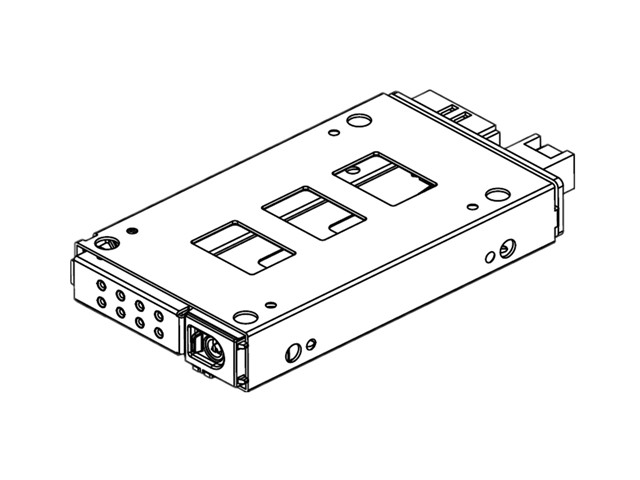

Industrial grade hot-swappable iStarUSA T-CA125-U2 mobile rack. Unique compact in size, high performance U.2 (SFF-8643) interface. T-CA125-U2 is tough in strength, but flexible in functionality. LED indicator enables monitor power and hard drive activities. Security lock prevents intrusion and theft to the most important data. T-CA125-U2 mobile rack construct with quality and versatility. T-CA125-U2 is filed as an Anhsin Internal HDD Cage under Custom Size. Host opening: None. Hot-swap map: 2.5" U.2 NVMe SSD. Interface language on the original spec/feature list: U.2 NVMe · SFF-8643 · SAS. Security: Key Lock. Envelope (W×H×D): 2.85" x 0.81" x 4.11" · 72.4 mm x 20.6 mm x 104.4 mm. Availability on iStarUSA: Coming Soon.
Key Features
Engineered for reliability and integration.
- With mini SAS HDD(SFF-8643) connector
- transmission performance upto 32GT/s
- LED for Power and HDD Accessing
- Tray design with All Metal Parts (Industrial grade)
Specifications
Technical specifications.
| Model Number | T-CA125-U2 |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Custom Size |
| Host Bay | None |
| Drive Bays | 2.5" U.2 NVMe SSD |
| Interface | U.2 NVMe · SFF-8643 · SAS |
| Indicators | Power and HDD activity |
| Security | Key Lock |
| Material of Main Chassis | Metal |
| Dimensions | 2.85" x 0.81" x 4.11" · 72.4 mm x 20.6 mm x 104.4 mm |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" |
Applications
Where the T-CA125-U2 is deployed.
T-CA125-U2 U.2 NVMe refresh
Drop 2.5" U.2 NVMe SSD into None so an existing chassis can take U.2 NVMe without a new backplane drawing.
T-CA125-U2 OEM custom envelope
Custom-size module for chassis that do not use a standard 5.25" or 3.5" optical bay — match the host opening on the drawing.
T-CA125-U2 locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
T-CA125-U2 OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-CA125-U2 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-CA125-U2: custom envelope and mounting to the host opening (not a standard 5.25"/3.5" drop-in unless the drawing says so)
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The T-CA125-U2 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the T-CA125-U2 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the T-CA125-U2 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
