Drive Cages & Hot-swap Modules / T-CE325-HD
Custom Size 3x 2.5" 12Gb/s HDD SSD Hot-swap Rack
T-CE325-HD — Custom Size 3x 2.5" 12Gb/s HDD SSD Hot-swap Rack. Custom Size; 3x2.5" SAS I/II/III & SATA I/II/III HDD/SSD; 12Gb/s; Key Lock; 2.85" x 1.58" x 5.53".
Product Overview
What the T-CE325-HD is built for.
Industrial grade hot-swappable iStarUSA T-CE325-HD mobile rack. Unique compact in size, high performance 12Gb/s SATA interface. T-CE325-HD is tough in strength, but flexible in functionality. LED indicator enables monitor power and hard drive activities. Security lock prevents intrusion and theft to the most important data. T-CE325-HD mobile rack construct with quality and versatility. T-CE325-HD is filed as an Anhsin Internal HDD Cage under Custom Size. Host opening: None. Hot-swap map: 3x2.5" SAS I/II/III & SATA I/II/III HDD/SSD. Interface language on the original spec/feature list: 12Gb/s · SATA 6Gb/s · SAS. Security: Key Lock. Envelope (W×H×D): 2.85" x 1.58" x 5.53" · 72.4 mm x 40.1 mm x 140.5 mm.
Key Features
Engineered for reliability and integration.
- Supports HDD Thickness 9 mm

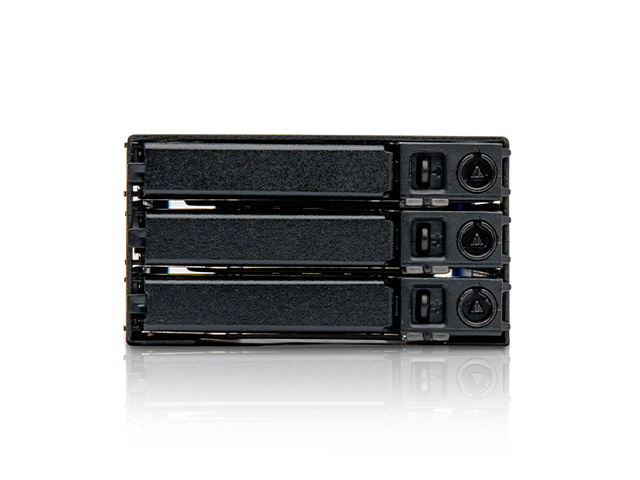

- Mechanical lock keeps HDD working securely
- LED indicator let users check working status any time
- Supports 3x 2.5" SAS I/II/III and SATA I/II/III HDD/SSD
- High Performance Transfer Rate up to 12Gb/s
Specifications
Technical specifications.
| Model Number | T-CE325-HD |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Custom Size |
| Host Bay | None |
| Drive Bays | 3x2.5" SAS I/II/III & SATA I/II/III HDD/SSD |
| Interface | 12Gb/s · SATA 6Gb/s · SAS |
| Indicators | Power and HDD activity |
| Security | Key Lock |
| Material of Main Chassis | Metal |
| Dimensions | 2.85" x 1.58" x 5.53" · 72.4 mm x 40.1 mm x 140.5 mm |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" |
Applications
Where the T-CE325-HD is deployed.
T-CE325-HD SAS 12Gb/s expansion
Add 3x2.5" SAS I/II/III & SATA I/II/III HDD/SSD at SAS 12Gb/s (SATA 6Gb/s where listed) inside None for RAID/HBA storage growth.
T-CE325-HD OEM custom envelope
Custom-size module for chassis that do not use a standard 5.25" or 3.5" optical bay — match the host opening on the drawing.
T-CE325-HD locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
T-CE325-HD OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-CE325-HD to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-CE325-HD: custom envelope and mounting to the host opening (not a standard 5.25"/3.5" drop-in unless the drawing says so)
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The T-CE325-HD is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the T-CE325-HD with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the T-CE325-HD and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
