Drive Cages & Hot-swap Modules / T-CTE125-SS

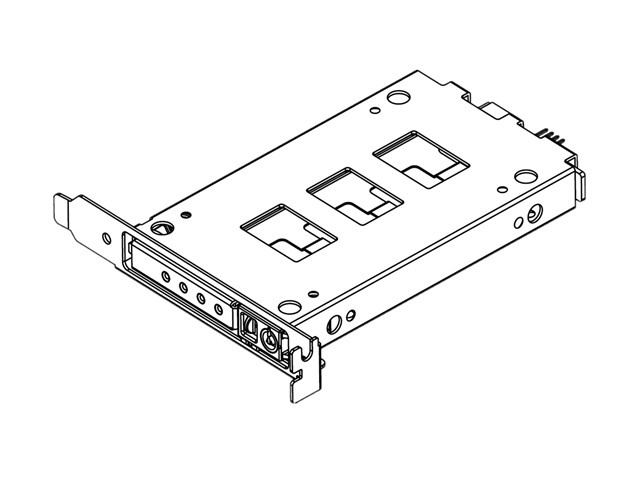

Custom Size PCI-slot 2.5" SAS/SATA 6Gb/s Hot-swap Rack (9 mm)
T-CTE125-SS — Custom Size PCI-slot 2.5" SAS/SATA 6Gb/s Hot-swap Rack (9 mm). Custom Size; 2.5" SAS I/II/III & SATA I/II/III; SATA 6Gb/s; PCIe / PCI-slot; 2.85" x 0.57" x 5.44". Listed as Coming Soon on iStarUSA.
Product Overview
What the T-CTE125-SS is built for.
Industrial grade hot-swappable iStarUSA T-CTE125-SS mobile rack. Unique compact in size. T-CTE125-SS is tough in strength, but flexible in functionality. LED indicator enables monitor power and hard drive activities. Security lock prevents intrusion and theft to the most important data. T-CTE125-SS mobile rack construct with quality and versatility. T-CTE125-SS is filed as an Anhsin Internal HDD Cage under Custom Size. Host opening: None. Hot-swap map: 2.5" SAS I/II/III & SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s · SAS · PCIe. Envelope (W×H×D): 2.85" x 0.57" x 5.44" · 72.4 mm x 14.5 mm x 138.2 mm. Availability on iStarUSA: Coming Soon.
Key Features
Engineered for reliability and integration.
- Supports HDD Thickness 9 mm
- LED for Power and HDD Accessing
- High Performance Transfer Rate up to 6Gb/s
- Supports 1 x 2.5" SAS I/II/III and SATA I/II/III HDD/SSD
- PCI Slot Style
Specifications
Technical specifications.
| Model Number | T-CTE125-SS |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Custom Size |
| Host Bay | None |
| Drive Bays | 2.5" SAS I/II/III & SATA I/II/III |
| Interface | SATA 6Gb/s · SAS · PCIe |
| Indicators | Power and HDD activity |
| Material of Main Chassis | Metal |
| Dimensions | 2.85" x 0.57" x 5.44" · 72.4 mm x 14.5 mm x 138.2 mm |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" |
Applications
Where the T-CTE125-SS is deployed.
T-CTE125-SS SATA/SAS bay conversion
Convert None into 2.5" SAS I/II/III & SATA I/II/III hot-swap capacity for workstation and industrial storage.
T-CTE125-SS OEM custom envelope
Custom-size module for chassis that do not use a standard 5.25" or 3.5" optical bay — match the host opening on the drawing.
T-CTE125-SS industrial storage cell
Metal chassis (Metal) for 24×7 hot-swap in industrial PCs and storage servers.
T-CTE125-SS OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-CTE125-SS to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-CTE125-SS: custom envelope and mounting to the host opening (not a standard 5.25"/3.5" drop-in unless the drawing says so)
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The T-CTE125-SS is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the T-CTE125-SS with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the T-CTE125-SS and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
