Audio & Video Racks / WG-790-S
Build-to-Order — 7U 900mm Depth Rack-mount Server Cabinet
Build-to-order 7U × 900 mm Claytek WG cabinet in silver — one RU more than WG-690 at the same 29" chassis class.
Product Overview
What the WG-790-S is built for.
WG-790-S is a build-to-order 7U × 900 mm Claytek WG enclosed cabinet, finished in silver — 23.60" × 23.00" × 35.40" (599.4 × 584.2 × 899.2 mm). Supported chassis depth is 29" and under; internal 29" max. Loading 2200 lbs. Same WG aluminum-frame construction, vented lockable doors, optional top fans. Sliding-rail option: WG-790S-EX. Order as BTO; silver is the published color (special color on request).
Key Features
Engineered for reliability and integration.

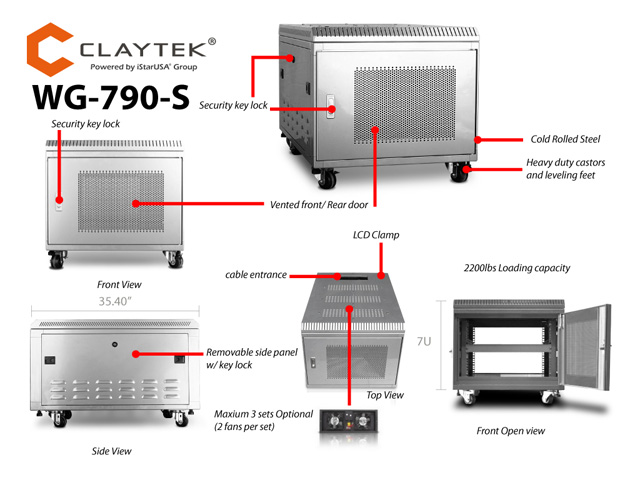

- Build-to-order 7U enclosed cabinet — 900 mm (35.40") deep
- Fits chassis 29" and under (internal 29" max)
- Overall size 23.60" W × 23.00" H × 35.40" D (599.4 × 584.2 × 899.2 mm)
- One more RU than WG-690 at the same 900 mm depth
- Silver finish (special color on request) · 2200 lbs loading
- Sliding-rail variant WG-790S-EX

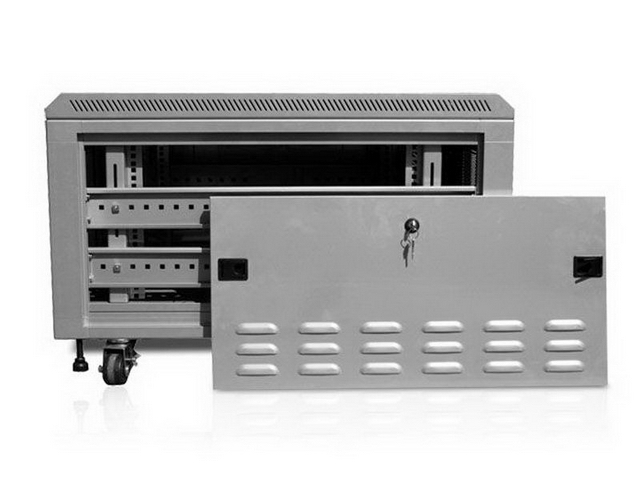

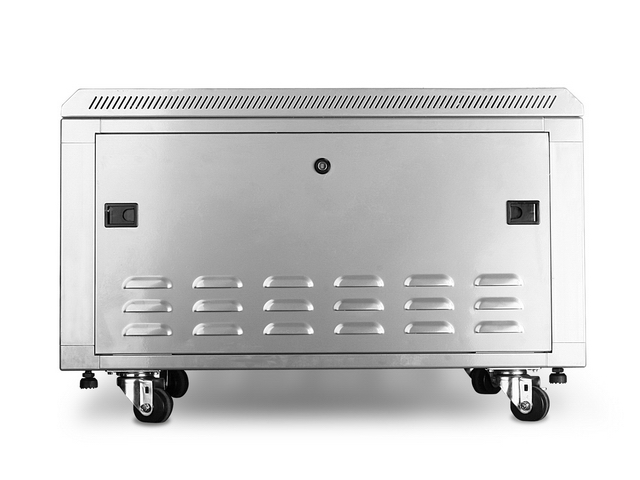

- Front, rear, and side-panel locks
- Cable entry from top and bottom

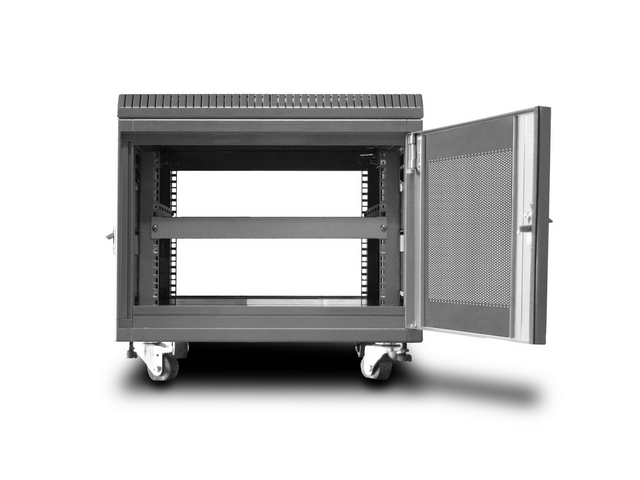

- Horizontally adjustable 19" mounting rails

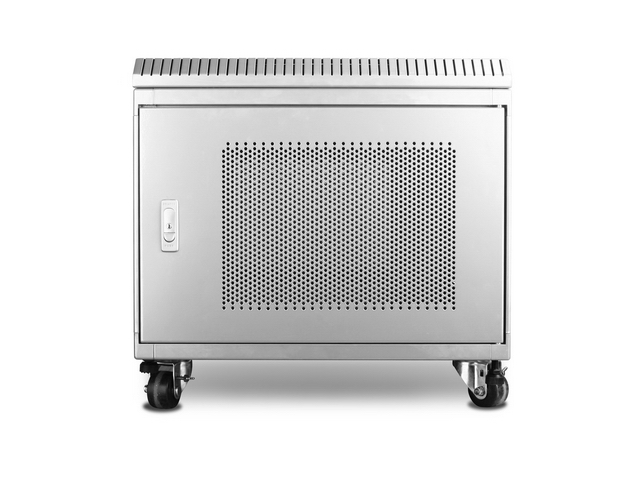

- Vented doors for airflow
- Optional 3 × 120mm 120V AC fan sets on top (p/n WA-SF120-2FAN)

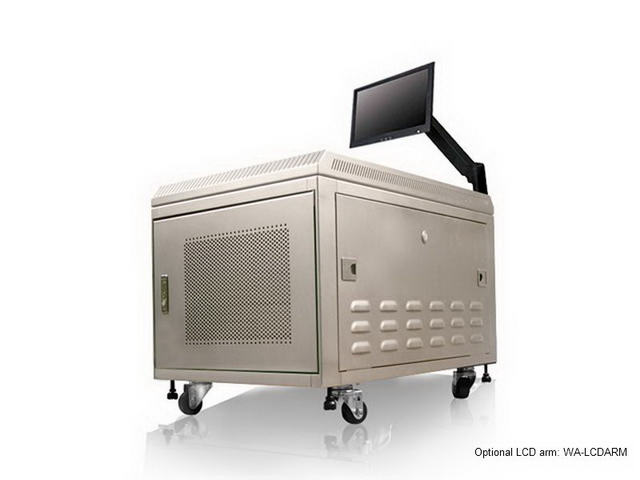

- Optional monitor mount and silk-screen front door
- Locking casters · M5 screws and cage nuts included
Specifications
Technical specifications.
| Model Number | WG-790-S |
|---|---|
| Product Category | Audio/Video Rack |
| Brand | Claytek |
| Series | WG — Audio/Video Rack |
| Form Factor | 7U |
| Industry Standard | EIA-310 |
| Cabinet Depth | 900 mm (35.40") |
| Supported Chassis Depth | 29" and under |
| Internal Dimensions | 29" max height and depth |
| Loading Capacity | 2200 lbs |
| Material | Frame: aluminum · Base/top/side: SPCC 1.2mm · Doors: SPCC 1.5mm · Mounting rails: SPCC 2.0mm |
| Color | Silver (special color on request) |
| Cooling | Optional 3 sets of 120mm 120V AC fans on top (p/n WA-SF120-2FAN) |
| Availability | Build-to-order |
| Certification | RoHS compliant |
| Dimensions | 23.60" × 23.00" × 35.40" · 599.4 mm × 584.2 mm × 899.2 mm |
| Notes | BTO. For HP/Dell/IBM sliding rails, ask sales about WG-790S-EX. HTS 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WG-790-S is deployed.
BTO 7U AV Racks
Silver 7U when 6U is short and 9U is more height than needed.
Studio / Demo
Lockable 900 mm cabinet, optional monitor mount.
OEM Color Programs
Published silver; special color on request.
Sliding-Rail Servers
Ask sales for WG-790S-EX.
Customization Options
Adapt the WG-790-S to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WG-790-S is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WG-790-S with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WG-790-S and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
