Audio & Video Racks / WG-690
6U 900mm Depth Rack-mount Server Cabinet
The compact Claytek WG AV cabinet: 6U high and 900 mm deep, lockable, for chassis 29" and under.
Product Overview
What the WG-690 is built for.
WG-690 is the 6U × 900 mm Claytek WG enclosed cabinet — 23.60" × 21.00" × 35.40" (599.4 × 533.4 × 899.2 mm). Supported chassis depth is 29" and under; internal clearance 29" max. Loading 2200 lbs. Aluminum frame with SPCC panels, vented lockable doors, optional top 120 mm fans (WA-SF120-2FAN), optional monitor mount. Sliding-rail option: WG-690-EX. Lowest WG height in this import.
Key Features
Engineered for reliability and integration.
- 6U enclosed AV cabinet — 900 mm (35.40") deep
- Fits chassis 29" and under (internal 29" max)
- Overall size 23.60" W × 21.00" H × 35.40" D (599.4 × 533.4 × 899.2 mm)
- Shortest WG here — 6U vs 7U/9U/12U at the same 900 mm depth
- 2200 lbs loading · black (special color on request)
- Sliding-rail variant WG-690-EX

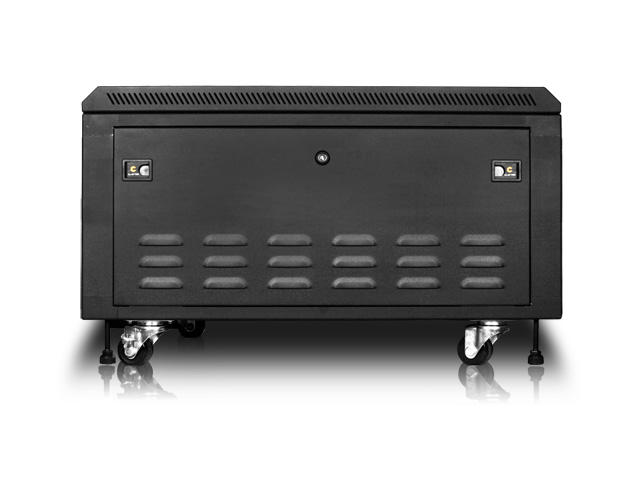

- Front, rear, and side-panel locks
- Cable entry from top and bottom

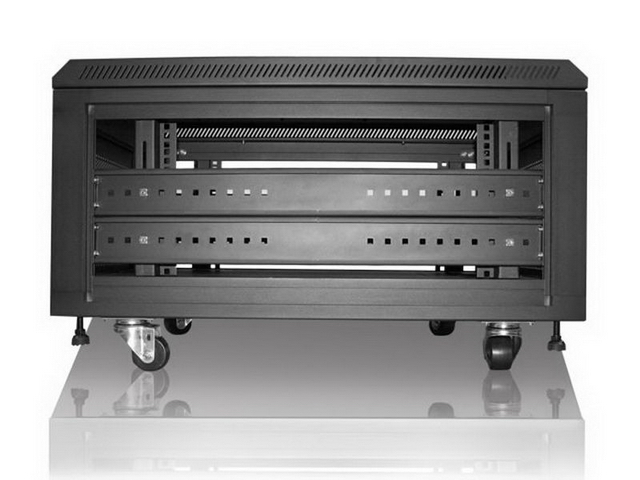

- Horizontally adjustable 19" mounting rails

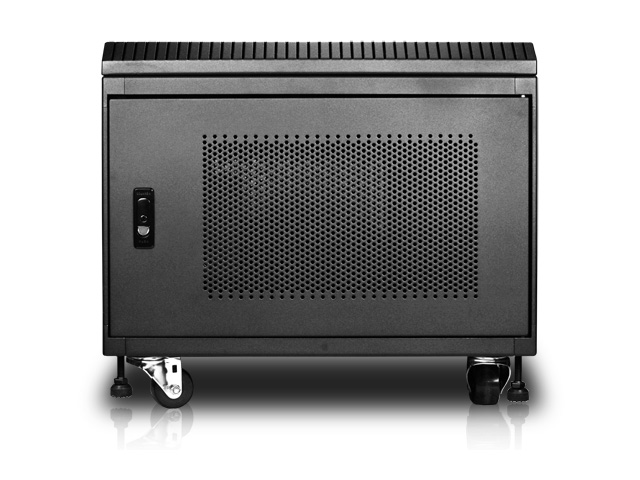

- Vented doors for airflow
- Optional 3 × 120mm 120V AC fan sets on top (p/n WA-SF120-2FAN)

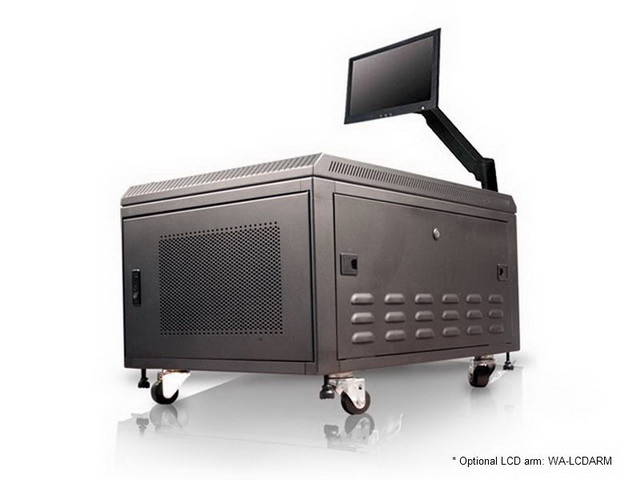

- Optional monitor mount and silk-screen front door
- Locking casters · M5 screws and cage nuts included
Specifications
Technical specifications.
| Model Number | WG-690 |
|---|---|
| Product Category | Audio/Video Rack |
| Brand | Claytek |
| Series | WG — Audio/Video Rack |
| Form Factor | 6U |
| Industry Standard | EIA-310 |
| Cabinet Depth | 900 mm (35.40") |
| Supported Chassis Depth | 29" and under |
| Internal Dimensions | 29" max height and depth |
| Loading Capacity | 2200 lbs |
| Material | Frame: aluminum · Base/top/side: SPCC 1.2mm · Doors: SPCC 1.5mm · Mounting rails: SPCC 2.0mm |
| Color | Black (special color on request) |
| Cooling | Optional 3 sets of 120mm 120V AC fans on top (p/n WA-SF120-2FAN) |
| Certification | RoHS compliant |
| Dimensions | 23.60" × 21.00" × 35.40" · 599.4 mm × 533.4 mm × 899.2 mm |
| Notes | For HP/Dell/IBM sliding rails, ask sales about WG-690-EX. HTS 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WG-690 is deployed.
Compact AV / Studio
6U lockable 900 mm cabinet for a short 19" stack.
Deep Chassis in Low Height
29" chassis class without a tall rack.
Office / Demo
Optional monitor mount and silk-screen door.
OEM/ODM
Special color; WG-690-EX for HP/Dell/IBM sliding rails.
Customization Options
Adapt the WG-690 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
