Audio & Video Racks / WG-990
9U 900mm Depth Rack-mount Server Cabinet
A 9U × 900 mm Claytek WG AV cabinet — more RU than WG-690 at the same 29" chassis and 2200 lb class.
Product Overview
What the WG-990 is built for.
WG-990 is the 9U × 900 mm Claytek WG enclosed cabinet — 23.60" × 26.50" × 35.40" (599.4 × 673.1 × 899.2 mm). Supported chassis depth is 29" and under. Loading 2200 lbs. Black, vented lockable doors, optional top 120 mm fans, optional monitor mount. Sliding-rail option: WG-990-EX. Same 900 mm depth as WG-690/WG-129 with a mid-height 9U envelope — compare with WQ-990 if you need the quiet (foam + rear-door fans) variant instead of this vented WG cabinet.
Key Features
Engineered for reliability and integration.
- 9U enclosed AV cabinet — 900 mm (35.40") deep
- Fits chassis 29" and under
- Overall size 23.60" W × 26.50" H × 35.40" D (599.4 × 673.1 × 899.2 mm)
- Same 9U × 900 mm class as WQ-990, without the quiet-foam / glass-door package
- 2200 lbs loading · black (special color on request)
- Sliding-rail variant WG-990-EX
- Front, rear, and side-panel locks
- Cable entry from top and bottom

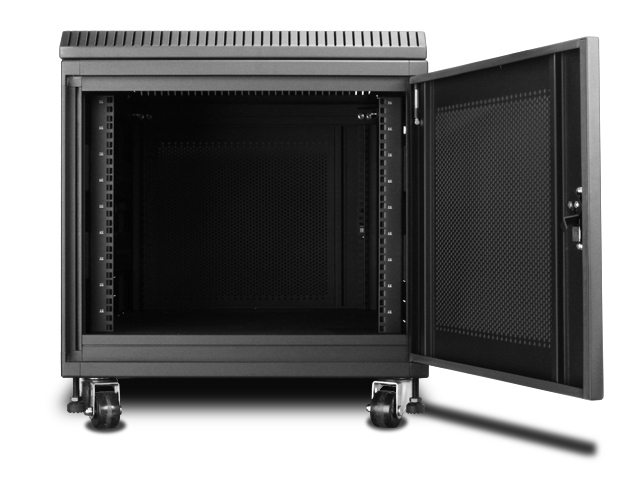

- Horizontally adjustable 19" mounting rails

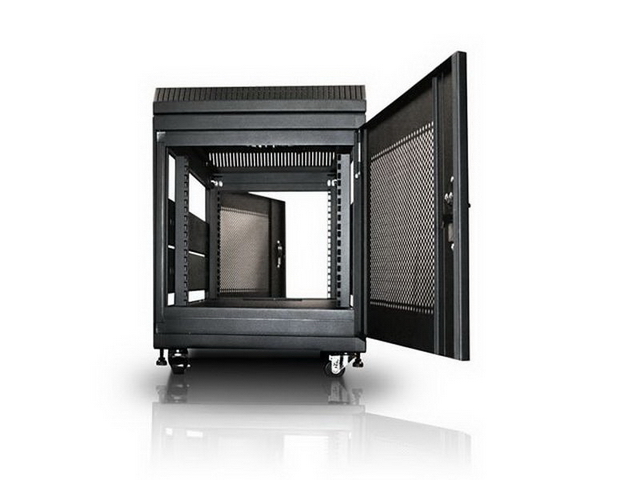

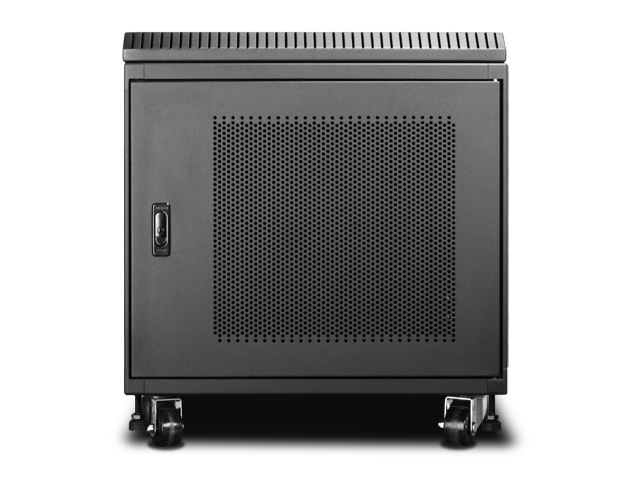

- Vented doors for airflow
- Optional 3 × 120mm 120V AC fan sets on top (p/n WA-SF120-2FAN)

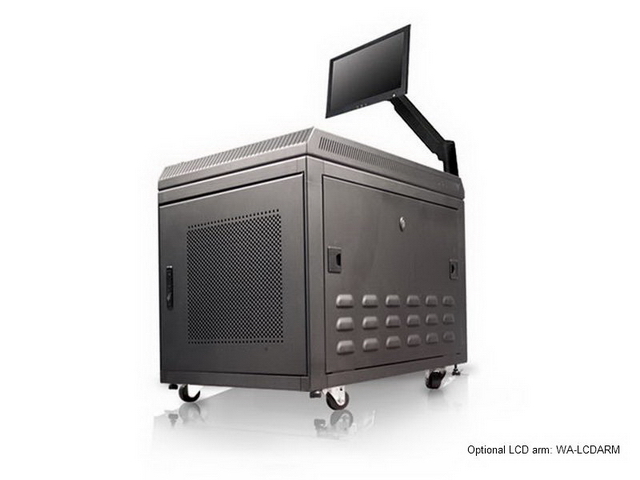

- Optional monitor mount and silk-screen front door
- Locking casters · M5 screws and cage nuts included
Specifications
Technical specifications.
| Model Number | WG-990 |
|---|---|
| Product Category | Audio/Video Rack |
| Brand | Claytek |
| Series | WG — Audio/Video Rack |
| Form Factor | 9U |
| Industry Standard | EIA-310 |
| Cabinet Depth | 900 mm (35.40") |
| Supported Chassis Depth | 29" and under |
| Loading Capacity | 2200 lbs |
| Material | Frame: aluminum · Base/top/side: SPCC 1.2mm · Doors: SPCC 1.5mm · Mounting rails: SPCC 2.0mm |
| Color | Black (special color on request) |
| Cooling | Optional 3 sets of 120mm 120V AC fans on top (p/n WA-SF120-2FAN) |
| Certification | RoHS compliant |
| Dimensions | 23.60" × 26.50" × 35.40" · 599.4 mm × 673.1 mm × 899.2 mm |
| Notes | For HP/Dell/IBM sliding rails, ask sales about WG-990-EX. HTS 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WG-990 is deployed.
Mid-Height AV Racks
9U lockable 900 mm cabinet for mixed 19" AV and IT.
Studio / Office
Optional monitor mount and silk-screen door.
Vs Quiet Cabinet
Choose WQ-990 when you need sound-absorbing foam and rear-door fans.
OEM/ODM
WG-990-EX for HP/Dell/IBM sliding rails.
Customization Options
Adapt the WG-990 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WG-990 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WG-990 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WG-990 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
