Quiet Racks / WQ-990
9U 900mm Depth Ultimate Quiet Server Cabinet
A 9U × 900 mm Claytek quiet cabinet: sound-absorbing foam, tempered glass door, and six rear-door 120 mm fans.
Product Overview
What the WQ-990 is built for.

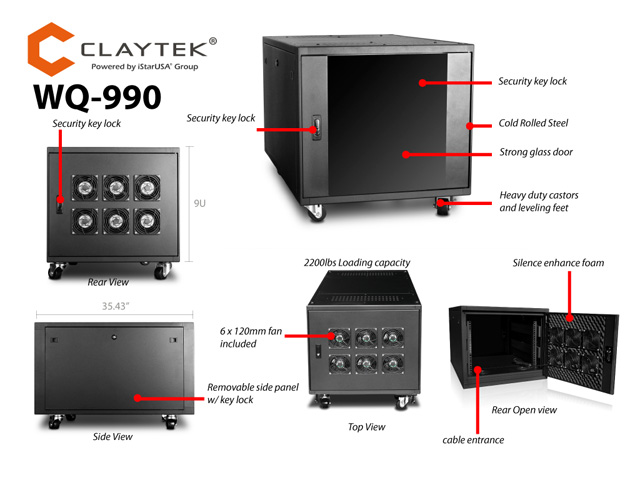

WQ-990 is the 9U × 900 mm Claytek Ultimate Quiet Server Cabinet — 23.62" × 24.21" × 35.43" (599.9 × 614.9 × 899.9 mm). Supported chassis depth is 30" and under; internal post-to-post is 29.2". Loading 2200 lbs. It uses sound-absorbing foam inside the cabinet (official wording: to lower dBA — no dB figure is published) plus 6 × 120 mm 120V AC fans on the rear door, a tempered glass front door with key lock, bottom cable entry, and locking casters. Official note: not compatible with Dell/HP/IBM sliding-rail servers. Compare with WG-990 if you want a vented 9U × 900 mm cabinet without the quiet package.
Key Features
Engineered for reliability and integration.
- 9U quiet enclosed cabinet — 900 mm (35.43") deep
- Fits chassis 30" and under (internal 29.2" post-to-post)
- Overall size 23.62" W × 24.21" H × 35.43" D (599.9 × 614.9 × 899.9 mm)

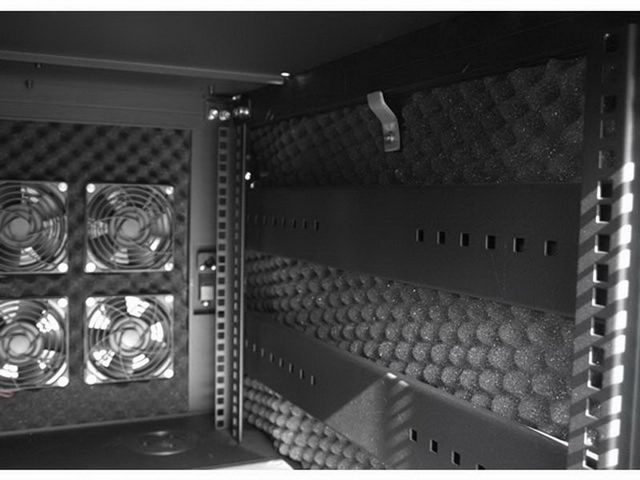

- Sound-absorbing foam inside the cabinet to lower dBA (no published dB rating)

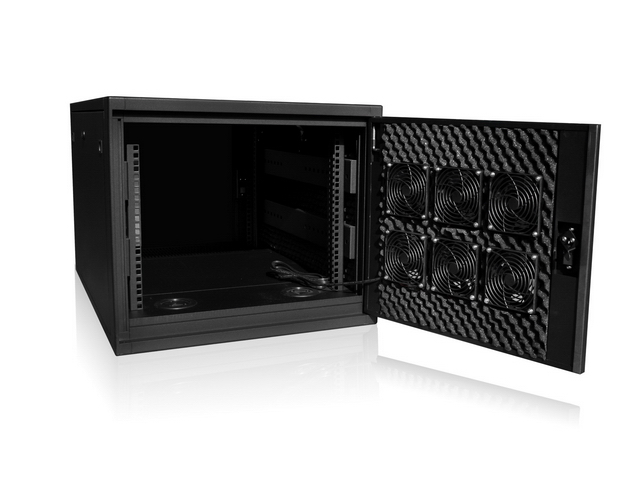

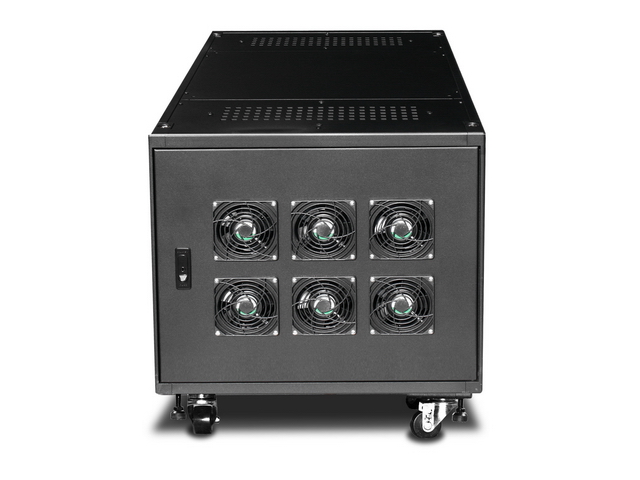

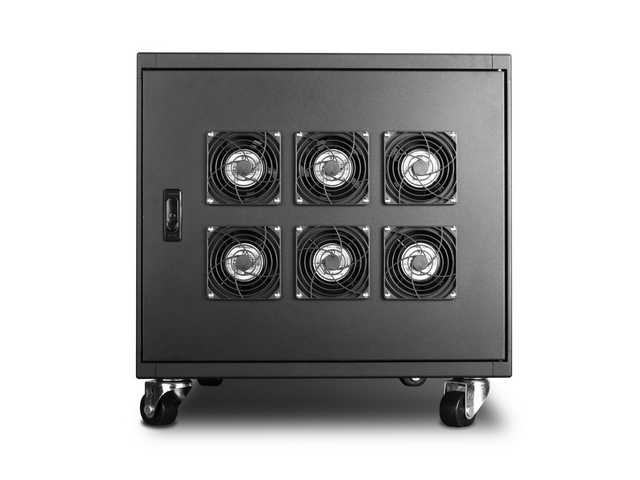

- 6 × 120mm 120V AC fans on the rear door

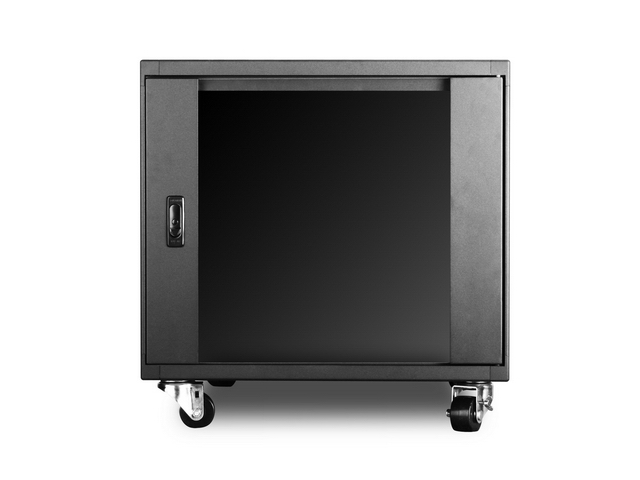

- Tempered glass front door with security key lock
- Cable entry from the bottom · locking casters · M5 screws/cage nuts
- Not compatible with Dell/HP/IBM sliding-rail servers
Specifications
Technical specifications.
| Model Number | WQ-990 |
|---|---|
| Product Category | Quiet Rack |
| Brand | Claytek |
| Series | WQ — Quiet Rack |
| Form Factor | 9U |
| Cabinet Depth | 900 mm (35.43") |
| Supported Chassis Depth | 30" and under |
| Internal Dimensions | 29.2" mounting-post front-to-back (height and depth) |
| Loading Capacity | 2200 lbs |
| Color | Black (special color on request) |
| Cooling | 6 × 120mm 120V AC fans on the rear door |
| Acoustics | Sound-absorbing foam inside cabinet to lower dBA (no published dB figure) |
| Door | Tempered glass with security key lock |
| Certification | RoHS compliant |
| Dimensions | 23.62" × 24.21" × 35.43" · 599.9 mm × 614.9 mm × 899.9 mm |
| Notes | Not compatible with Dell/HP/IBM servers with sliding rails. HTS 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WQ-990 is deployed.
Quiet Offices / Edit Rooms
Foam-lined 9U cabinet with rear-door fans; no published dB number.
Studio Adjacent IT
Glass door + locks for a visible 19" stack that should stay quieter than a vented WG rack.
9U × 900 mm Quiet vs Vented
Same height/depth class as WG-990; pick WG-990 if you need sliding-rail EX options.
OEM/ODM
Special color on request.
Customization Options
Adapt the WQ-990 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WQ-990 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WQ-990 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WQ-990 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
