Drive Cages & Hot-swap Modules / BPN-124K-SA

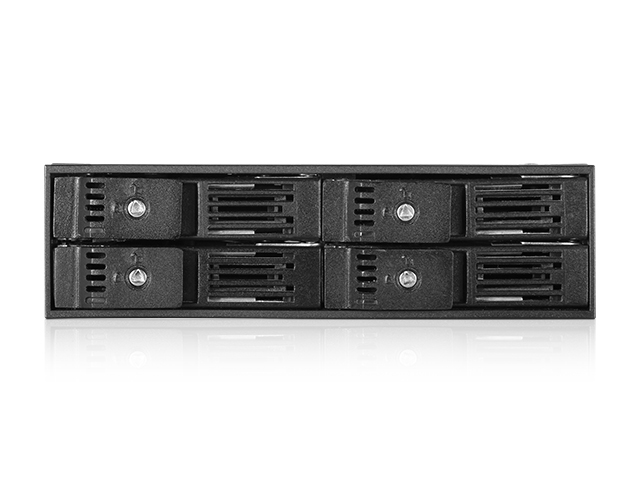

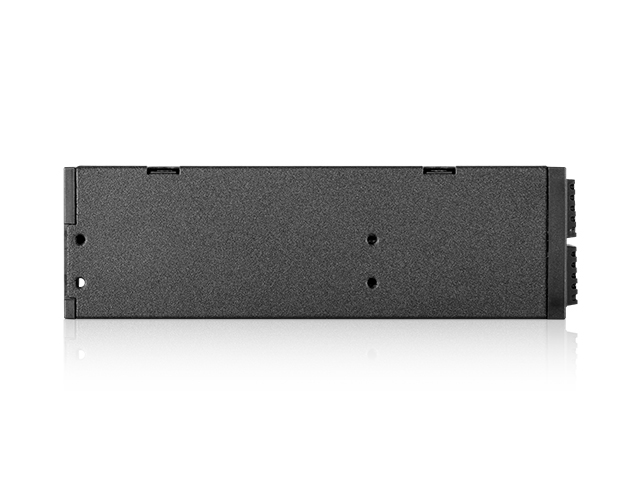

Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPN-124K-SA — Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack. COMBO; Hotswap 2.5": 1 · 5.25" host 1; 2.5" SATA I/II/III; SATA 6Gb/s; Key Lock.
Product Overview
What the BPN-124K-SA is built for.

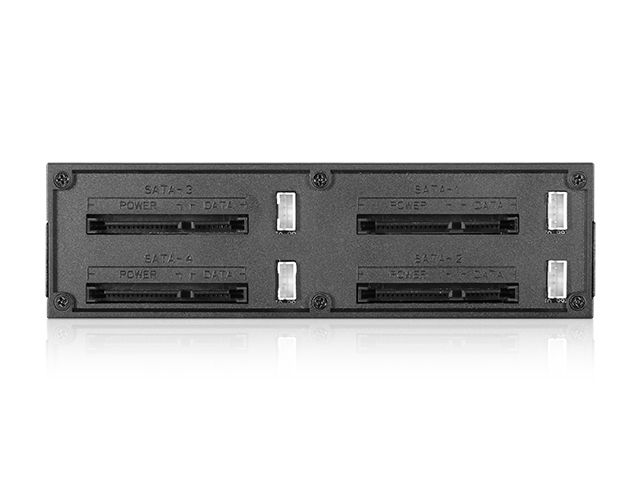

The 2.5" Disk Array BPN-124K-SA to be set up in various configurations as RAID 0, RAID 1, RAID 5 or JBOD as individual drives. The unit is featured with HDD hot-swappable, which can remove or add HDDs to the system without turning off the computers. The back plane connection include SATA connectors and each drive is equipped with power and drive activity LEDs. BPN-124K-SA is filed as an Anhsin Internal HDD Cage under COMBO. Host opening: Hotswap 2.5": 1 · 5.25" Drives: 1. Hot-swap map: 2.5" SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s. Security: Key Lock. Envelope (W×H×D): 5.83" x 1.65" x 5.59" · 148.1 mm x 41.9 mm x 142.0 mm.
Key Features
Engineered for reliability and integration.
- Plug & Play, Hot Swappable
- LED for Power & HDD Activity
- High Performance Transfer Rate up to 6.0 Gb/s
- Support 4 x 2.5" SATA I/II/III HDDs
- Constructed with metal body, plastic ABS front panel, and metal latch for heavy use
- Support 2.5" HDD/SSD thickness from 9.5 to 12.5mm
Specifications
Technical specifications.
| Model Number | BPN-124K-SA |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | COMBO |
| Host Bay | Hotswap 2.5": 1 · 5.25" Drives: 1 |
| Drive Bays | 2.5" SATA I/II/III |
| Interface | SATA 6Gb/s |
| Indicators | Power On: solid blue/ · HDD Access: blue blinking |
| Security | Key Lock |
| Material of Handle | Plastic with Metal Latch |
| Material of Main Chassis | SECC Steel |
| Color of Main Chassis | Black |
| Dimensions | 5.83" x 1.65" x 5.59" · 148.1 mm x 41.9 mm x 142.0 mm |
| Notes | - not compatible with D Storm chassis on the right 5.25" drive bays when facing the chassis |
| Certification | RoHS compliant |
| Drive Size Class | COMBO |
Applications
Where the BPN-124K-SA is deployed.
BPN-124K-SA SATA/SAS bay conversion
Convert Hotswap 2.5": 1 · 5.25" Drives: 1 into 2.5" SATA I/II/III hot-swap capacity for workstation and industrial storage.
BPN-124K-SA combo 5.25" bay
Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack — official host map Hotswap 2.5": 1 · 5.25" Drives: 1.
BPN-124K-SA locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
BPN-124K-SA OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPN-124K-SA to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPN-124K-SA: combo bay mix and front-port layout matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPN-124K-SA is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPN-124K-SA with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPN-124K-SA and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
