Drive Cages & Hot-swap Modules / T-5K225T-SA
Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K225T-SA — Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack. COMBO; Hotswap 2.5": 1 · 5.25" host 1 · Slim 5.25" Optical: 1; 2.5" SATA I/II/III; SATA 6Gb/s; Key Lock.
Product Overview
What the T-5K225T-SA is built for.

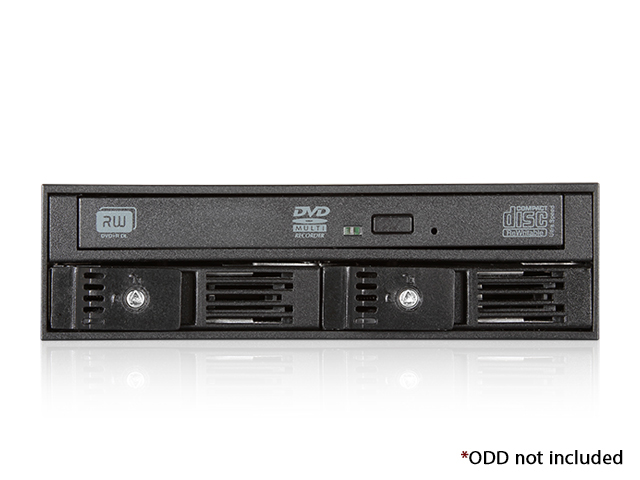

T-5K225T-SA is a combo drive cage that takes a standard 5.25" drive space to give one slim optical drive bay (12.7mm height) and 2x 2.5" hotswappable SATA drive bay. This device provides flexibility to fully utilize your system chassis. T-5K225T-SA is filed as an Anhsin Internal HDD Cage under COMBO. Host opening: Hotswap 2.5": 1 · 5.25" Drives: 1 · Slim 5.25" Optical: 1. Hot-swap map: 2.5" SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s. Security: Key Lock. Envelope (W×H×D): 5.83" x 1.65" x 5.59" · 148.1 mm x 41.9 mm x 142.0 mm.
Key Features
Engineered for reliability and integration.
- High performance transfer rate up to 6.0 Gb/s
- Two 2.5" hotswappable and trayless drive bays with key lock
- Supports SATA I/II/III 6.0 Gb/s hard drive
- Supports slim optical drive (12.7mm height)
- Constructed with metal body, plastic ABS front panel, and metal latch for heavy use
- Support 2.5" HDD thickness from 7 to 12.5mm
Specifications
Technical specifications.
| Model Number | T-5K225T-SA |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | COMBO |
| Host Bay | Hotswap 2.5": 1 · 5.25" Drives: 1 · Slim 5.25" Optical: 1 |
| Drive Bays | 2.5" SATA I/II/III |
| Interface | SATA 6Gb/s |
| Indicators | HDD Access: blue |
| Security | Key Lock |
| Material of Handle | Plastic with Metal Latch |
| Material of Main Chassis | Stainless & SECC |
| Color of Main Chassis | Black |
| Dimensions | 5.83" x 1.65" x 5.59" · 148.1 mm x 41.9 mm x 142.0 mm |
| Notes | - compatible with 12.5mm optical drive with SATA interface only · - no optical drive bay cover included |
| Certification | RoHS compliant |
| Drive Size Class | COMBO |
Applications
Where the T-5K225T-SA is deployed.
T-5K225T-SA SATA/SAS bay conversion
Convert Hotswap 2.5": 1 · 5.25" Drives: 1 · Slim 5.25" Optical: 1 into 2.5" SATA I/II/III hot-swap capacity for workstation and industrial storage.
T-5K225T-SA combo 5.25" bay
Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack — official host map Hotswap 2.5": 1 · 5.25" Drives: 1 · Slim 5.25" Optical: 1.
T-5K225T-SA locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
T-5K225T-SA OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-5K225T-SA to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-5K225T-SA: combo bay mix and front-port layout matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Two Ways to Buy
Order the standard model — or use it as a platform.
The T-5K225T-SA is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the T-5K225T-SA with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the T-5K225T-SA and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
