Drive Cages & Hot-swap Modules / T-5K3525U-SA

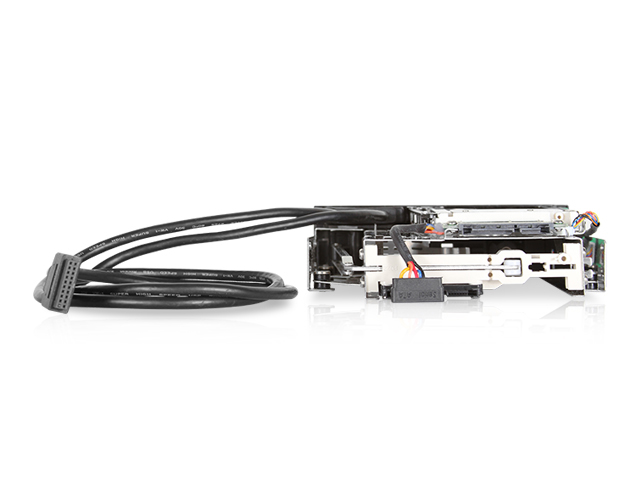

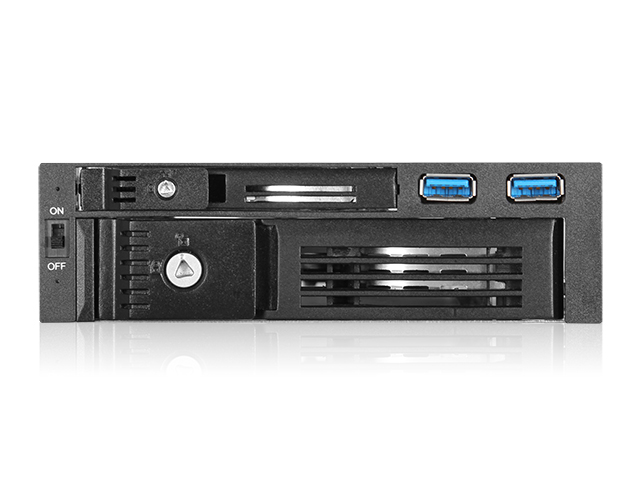

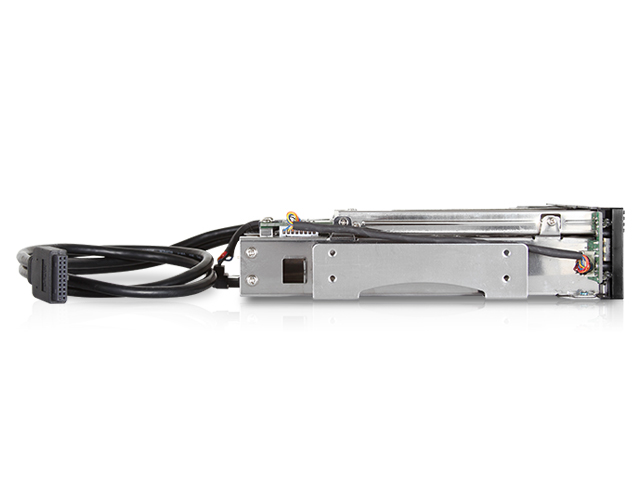

Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K3525U-SA — Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0. COMBO; Hotswap 2.5": 1 · Hotswap 3.5": 1 · 5.25" host 1; 3.5" SATA I/II/III; SATA 6Gb/s; Key Lock.
Product Overview
What the T-5K3525U-SA is built for.
T-5K3525U-SA is a combo drive cage that takes a standard 5.25" drive space to give one 2.5" and one 3.5" hotswappable trayless SATA drive bay. Also, it supports two USB 3.0 ports in the front for easy access. This device provides flexibility to fully utilize your system chassis. T-5K3525U-SA is filed as an Anhsin Internal HDD Cage under COMBO. Host opening: Hotswap 2.5": 1 · Hotswap 3.5": 1 · 5.25" Drives: 1. Hot-swap map: 3.5" SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s · USB 3.0. Security: Key Lock. Front connector: 2x USB 3.0. Envelope (W×H×D): 5.83" x 1.65" x 7.44" · 148.1 mm x 41.9 mm x 189.0 mm.
Key Features
Engineered for reliability and integration.
- Stainless steel material to avoid rust problem after use
- High performance transfer rate up to 6.0 Gb/s
- 3.5" and 2.5" hotswappable and trayless drive bay with key lock
- Supports SATA I/II/III 6.0 Gb/s hard drive
- Supports two USB 3.0 ports
- Constructed with metal body, plastic ABS front panel, and metal latch for heavy use
- Anti-vibration silicon rubbers on both sides of rack to absorb vibration and resonance
- Support standard 2.5" HDD/SSD with 9.5mm thickness
Specifications
Technical specifications.
| Model Number | T-5K3525U-SA |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | COMBO |
| Host Bay | Hotswap 2.5": 1 · Hotswap 3.5": 1 · 5.25" Drives: 1 |
| Drive Bays | 3.5" SATA I/II/III |
| Interface | SATA 6Gb/s · USB 3.0 |
| Indicators | Power On: solid blue/ · HDD Access: amber |
| Security | Key Lock |
| Material of Handle | Plastic with Metal Latch |
| Material of Main Chassis | Stainless Steel |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 3.0 |
| Dimensions | 5.83" x 1.65" x 7.44" · 148.1 mm x 41.9 mm x 189.0 mm |
| Certification | RoHS compliant |
| Drive Size Class | COMBO |
Applications
Where the T-5K3525U-SA is deployed.
T-5K3525U-SA SATA/SAS bay conversion
Convert Hotswap 2.5": 1 · Hotswap 3.5": 1 · 5.25" Drives: 1 into 3.5" SATA I/II/III hot-swap capacity for workstation and industrial storage.
T-5K3525U-SA combo 5.25" bay
Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 — official host map Hotswap 2.5": 1 · Hotswap 3.5": 1 · 5.25" Drives: 1, with 2x USB 3.0 on the front.
T-5K3525U-SA locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
T-5K3525U-SA OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-5K3525U-SA to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-5K3525U-SA: combo bay mix and front-port layout matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Front connector (2x USB 3.0) placement and cable exit
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Two Ways to Buy
Order the standard model — or use it as a platform.
The T-5K3525U-SA is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the T-5K3525U-SA with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the T-5K3525U-SA and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
