Drive Cages & Hot-swap Modules / T-5K25TU-SA
Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K25TU-SA — Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0. COMBO; Hotswap 2.5": 1 · 5.25" host 1 · Slim 5.25" Optical: 1; 2.5" SATA I/II/III; SATA 6Gb/s; Key Lock.
Product Overview
What the T-5K25TU-SA is built for.

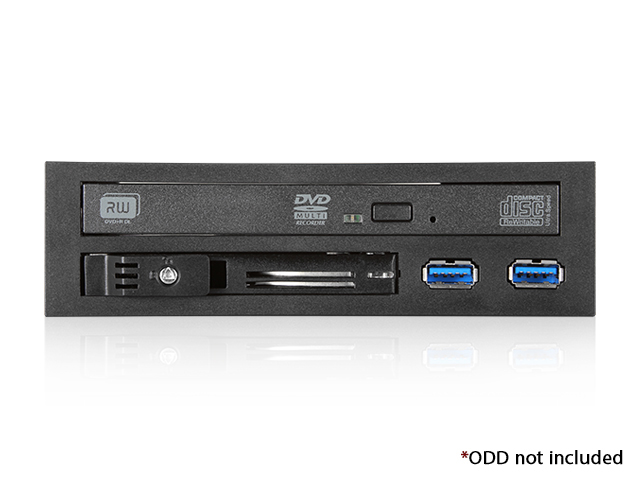

T-5K25TU-SA is a combo drive cage that takes a standard 5.25" drive space to give one slim optical drive bay (12.7mm height) and one 2.5" hotswappable SATA drive bay. Also, it supports two USB 3.0 ports in the front for easy access. This device provides flexibility to fully utilize your system chassis. T-5K25TU-SA is filed as an Anhsin Internal HDD Cage under COMBO. Host opening: Hotswap 2.5": 1 · 5.25" Drives: 1 · Slim 5.25" Optical: 1. Hot-swap map: 2.5" SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s · USB 3.0. Security: Key Lock. Front connector: 2x USB 3.0. Envelope (W×H×D): 5.83" x 1.65" x 5.43" · 148.1 mm x 41.9 mm x 137.9 mm.
Key Features
Engineered for reliability and integration.
- High performance transfer rate up to 6.0 Gb/s
- 2.5" hotswappable and trayless drive bays with key lock
- Supports SATA I/II/III 6.0 Gb/s hard drive
- Supports slim optical drive (12.7mm height)
- Supports two USB 3.0 ports
- Constructed with metal body, plastic ABS front panel, and metal latch for heavy use
- Support standard 2.5" HDD/SSD with 9.5mm thickness
Specifications
Technical specifications.
| Model Number | T-5K25TU-SA |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | COMBO |
| Host Bay | Hotswap 2.5": 1 · 5.25" Drives: 1 · Slim 5.25" Optical: 1 |
| Drive Bays | 2.5" SATA I/II/III |
| Interface | SATA 6Gb/s · USB 3.0 |
| Indicators | Power On: solid blue/ · HDD Access: amber |
| Security | Key Lock |
| Material of Handle | Plastic with Metal Latch |
| Material of Main Chassis | SECC |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 3.0 |
| Dimensions | 5.83" x 1.65" x 5.43" · 148.1 mm x 41.9 mm x 137.9 mm |
| Notes | - no optical drive bay cover included · - compatible with 12.5mm optical drive with SATA interface only |
| Certification | RoHS compliant |
| Drive Size Class | COMBO |
Applications
Where the T-5K25TU-SA is deployed.
T-5K25TU-SA SATA/SAS bay conversion
Convert Hotswap 2.5": 1 · 5.25" Drives: 1 · Slim 5.25" Optical: 1 into 2.5" SATA I/II/III hot-swap capacity for workstation and industrial storage.
T-5K25TU-SA combo 5.25" bay
Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 — official host map Hotswap 2.5": 1 · 5.25" Drives: 1 · Slim 5.25" Optical: 1, with 2x USB 3.0 on the front.
T-5K25TU-SA locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
T-5K25TU-SA OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-5K25TU-SA to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-5K25TU-SA: combo bay mix and front-port layout matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Front connector (2x USB 3.0) placement and cable exit
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
