Fanless Enclosure / FS-1004
Fanless Desktop for Mini-ITX
A Mini-ITX fanless desktop with no drive bays — DisplayPort, HDMI, and VGA on a C4 9–24V / 150W converter.
Product Overview
What the FS-1004 is built for.
FS-1004 is the diskless Mini-ITX fanless desktop: 8.90 × 3.50 × 10.30 inches, no internal drive bay, powered by a 9–24V DC C4/150W converter. Rear cutouts cover USB 3.0 ×4, dual LAN, HDMI, DisplayPort, VGA, two DB9 holes, MIC, and line-out — a video-forward kiosk box rather than a storage cell.
Key Features
Engineered for reliability and integration.
- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: Mini-ITX
- Power: 9V-24V DC In C4/150W converter
- Envelope (W×H×D): 8.90" x 3.50" x 10.30"
- Front power, LED, and USB service cluster as specified
Specifications
Technical specifications.
| Model Number | FS-1004 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | Desktop |
| Motherboard Support | Mini-ITX |
| Cooling | Fanless |
| PSU Support | 9V-24V DC In C4/150W converter |

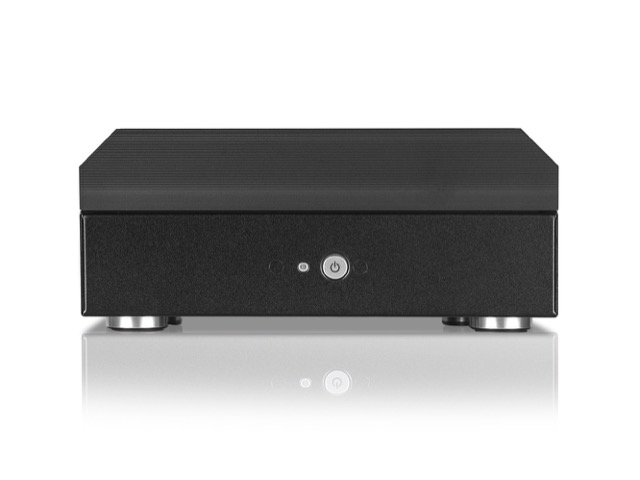

| Front Panel | Power SW · Power LED · HDD LED |
| Rear Panel | USB 3.0 x 4 · LAN x 2 · HDMI x 1 · DP x 1 · VGA X1 · DB9 cutoff hole x 2 · MIC x1 · Line out x 1 |
| Dimensions | 8.90" x 3.50" x 10.30" · 226.1 mm x 88.9 mm x 261.6 mm |
| Certification | RoHS compliant |
Applications
Where the FS-1004 is deployed.
Fanless Desktop IPC
Silent Mini-ITX / microATX cell for bench, kiosk, and wall-mount.
Factory Automation
COM-rich and slot-capable SKUs in the same desktop family.
Digital Signage Engine
HDMI / DP / VGA cutouts on the compact Mini-ITX desktops.
OEM Fanless Box
Color, silk-screen, and converter matching under FactorySmith.
Customization Options
Adapt the FS-1004 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-1004 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-1004 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-1004 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
