Fanless Enclosure / FS-1005
Fanless Desktop for Mini-ITX
The smallest Mini-ITX fanless desktop in the line — 7.00 × 3.00 × 7.30 inches with four LAN and a C7 80W 12V converter.
Product Overview
What the FS-1005 is built for.
FS-1005 shrinks Mini-ITX fanless to 7.00 × 3.00 × 7.30 inches and runs from a DC 12V C7/80W converter. Four LAN ports, four USB, HDMI, VGA, four DB9 cutoffs, MIC/line in/out, and PS/2 are on the rear; there is no drive bay, so the SKU is for network appliances that live on flash or external storage.
Key Features
Engineered for reliability and integration.
- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: Mini-ITX
- Power: DC 12V in C7/80W converter
- Envelope (W×H×D): 7.00" x 3.00" x 7.30"
- Front power, LED, and USB service cluster as specified
Specifications
Technical specifications.
| Model Number | FS-1005 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | Desktop |
| Motherboard Support | Mini-ITX |
| Cooling | Fanless |
| PSU Support | DC 12V in C7/80W converter |

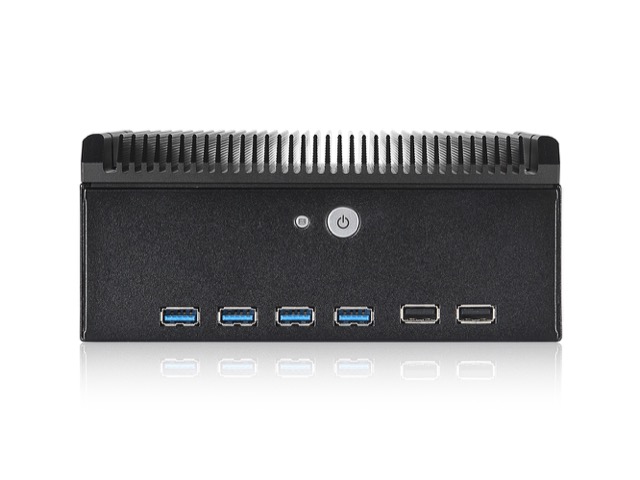

| Front Panel | Power SW · Power LED · HDD LED |

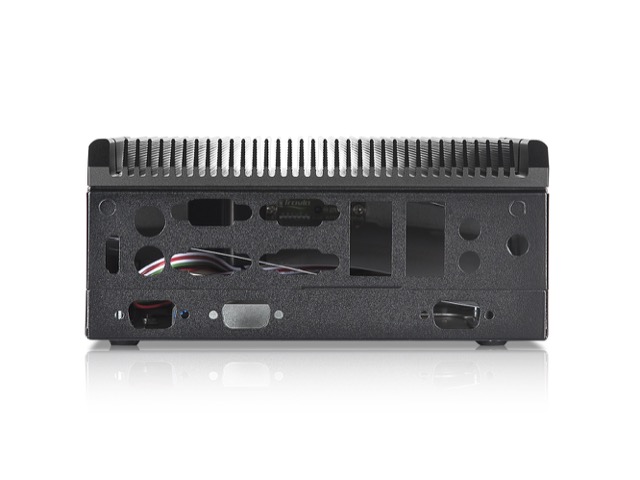

| Rear Panel | USB x 4 · LAN x 4 · HDMI x 1 · VGA X1 · DB9 cutoff hole x 4 · MIC x1 · Line out x 1 · Line in x 1 · PS/2 x1 |
| Dimensions | 7.00" x 3.00" x 7.30" · 177.8 mm x 76.2 mm x 185.4 mm |
| Certification | RoHS compliant |
Applications
Where the FS-1005 is deployed.
Fanless Desktop IPC
Silent Mini-ITX / microATX cell for bench, kiosk, and wall-mount.
Factory Automation
COM-rich and slot-capable SKUs in the same desktop family.
Digital Signage Engine
HDMI / DP / VGA cutouts on the compact Mini-ITX desktops.
OEM Fanless Box
Color, silk-screen, and converter matching under FactorySmith.
Customization Options
Adapt the FS-1005 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-1005 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-1005 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-1005 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
