Fanless Enclosure / FS-1006
Fanless Desktop for Mini-ITX
Low-profile Mini-ITX fanless (7.00 × 2.70 × 8.20 inches) for IMB-150, with a 2.5" bay and front COM/LPT.
Product Overview
What the FS-1006 is built for.
FS-1006 is the thin IMB-150 Mini-ITX fanless: 7.00 × 2.70 × 8.20 inches, 9–19V DC-in, and one internal 2.5" bay. Front panel adds two USB 2.0, three COM, and an LPT, so serial-heavy factory I/O does not have to come off the rear I/O shield.
Key Features
Engineered for reliability and integration.
- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: IMB-150
- Drive map: Internal Drive Bay: 2.5" HDD x 1
- Power: 9V-19V DC In
- Envelope (W×H×D): 7.00" x 2.70" x 8.20"
- Front power, LED, and USB service cluster as specified
Specifications
Technical specifications.
| Model Number | FS-1006 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | Desktop |
| Motherboard Support | IMB-150 |
| Drive Bays | Internal Drive Bay: 2.5" HDD x 1 |
| Cooling | Fanless |
| PSU Support | 9V-19V DC In |

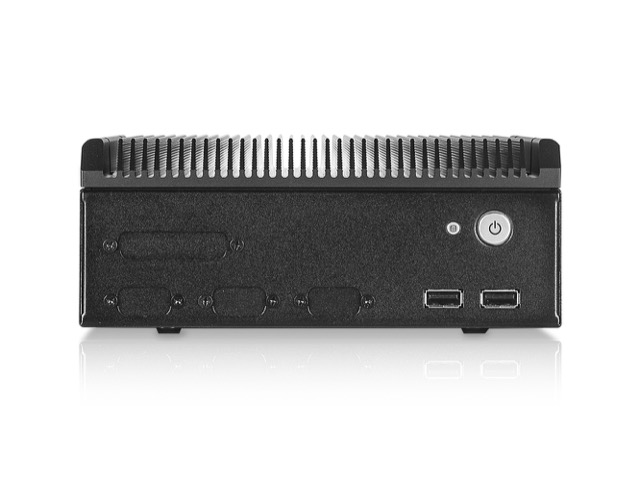

| Front Panel | Power SW · Power LED · HDD LED · USB 2.0 Port x2 · COM port x3 · LPT x1 |

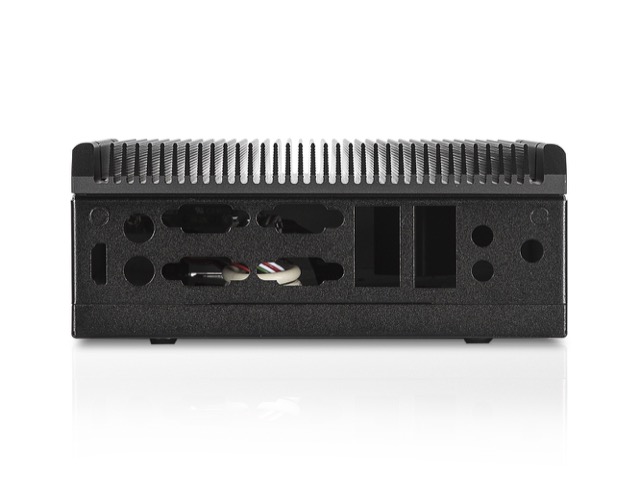

| Rear Panel | HDMI x1 · PS/2 x 2 (1 x keyboard, 1 x mouse) · COM port x3 · VGA x 1 · Gigabit LAN x 2 · USB 2.0 Port x2 · USB 3.0 Port x2 · ANT x 2 · Audio IN/OUT · 9V-36V DC-in |
| Dimensions | 7.00" x 2.70" x 8.20" · 177.8 mm x 68.6 mm x 208.3 mm |
| Certification | RoHS compliant |
Applications
Where the FS-1006 is deployed.
Fanless Desktop IPC
Silent Mini-ITX / microATX cell for bench, kiosk, and wall-mount.
Factory Automation
COM-rich and slot-capable SKUs in the same desktop family.
Digital Signage Engine
HDMI / DP / VGA cutouts on the compact Mini-ITX desktops.
OEM Fanless Box
Color, silk-screen, and converter matching under FactorySmith.
Customization Options
Adapt the FS-1006 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
