Drive Cages & Hot-swap Modules / T-7-SA
Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
T-7-SA — Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack. Tray; Hotswap 3.5": 1 · 5.25" host 1; 3.5" SAS I/II & SATA I/II/III; SATA 6Gb/s; Key Lock.
Product Overview
What the T-7-SA is built for.
Military type aluminum hot-swappable iStarUSA T-7-SA mobile rack. Unique compact in size, high performance SAS/SATA interface. T-7-SA is tough in strength, but flexible in functionality. Additional cooling fan provides extra cooling in worst operating condition. LED indicator enables monitor power and hard drive activities. Security lock prevents intrusion and theft to the most important data. T-7-SA military mobile rack construct with quality and versatility. T-7-SA is filed as an Anhsin Internal HDD Cage under Tray. Host opening: Hotswap 3.5": 1 · 5.25" Drives: 1. Hot-swap map: 3.5" SAS I/II & SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s · SAS. Security: Key Lock. Cooling: 1x40mm. Envelope (W×H×D): 5.75" x 1.65" x 7.48" · 146.1 mm x 41.9 mm x 190.0 mm.
Key Features
Engineered for reliability and integration.

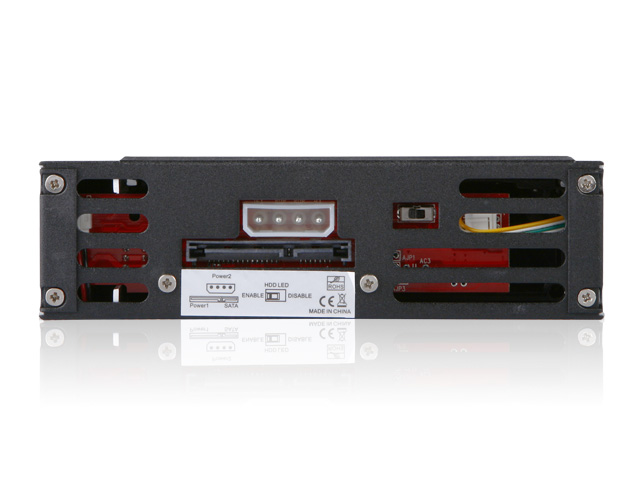

- Cableless Connection, Support Plug & Play, Hot-Swappable
- Power Control & Security Key Lock That Reduces From Potential Electronic Points of Failure
- Best Air Ventilation with 1 Front Fan
- Point to Point, Free from Master/Slave Setting
- Unique 7.5" Depth Compact Size
- Military Grade Quality Aluminum Frame & Tray
- High Performance Transfer Rate up to 6.0 Gb/s
- Support 3.5" SAS I/II & SATA I/II/III HDD
- 12TB Hard Drives Compatible
Specifications
Technical specifications.
| Model Number | T-7-SA |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | Hotswap 3.5": 1 · 5.25" Drives: 1 |
| Drive Bays | 3.5" SAS I/II & SATA I/II/III |
| Interface | SATA 6Gb/s · SAS |

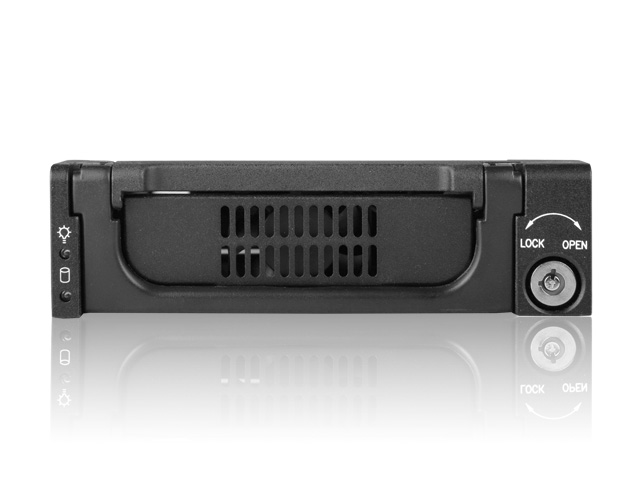

| Indicators | Power and HDD activity |
| Security | Key Lock |
| Material of Handle | Plastic |
| Material of Main Chassis | All Aluminum Design |
| Color of Main Chassis | Black |
| Cooling Fan | 1x40mm |
| Dimensions | 5.75" x 1.65" x 7.48" · 146.1 mm x 41.9 mm x 190.0 mm |
| Notes | - HTS code: 8473.30.5100. ECCN code:EAR99 |
| Certification | RoHS compliant |
| Drive Size Class | 3.5" |
Applications
Where the T-7-SA is deployed.
T-7-SA SATA/SAS bay conversion
Convert Hotswap 3.5": 1 · 5.25" Drives: 1 into 3.5" SAS I/II & SATA I/II/III hot-swap capacity for workstation and industrial storage.
T-7-SA serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
T-7-SA locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
T-7-SA OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-7-SA to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-7-SA: tray / carrier finish and backplane connector matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Fan option around the published 1x40mm configuration
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Two Ways to Buy
Order the standard model — or use it as a platform.
The T-7-SA is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the T-7-SA with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the T-7-SA and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
