Fanless Enclosure / FS-1010
Fanless Desktop for Mini-ITX
The matching 7.00 × 5.40 × 10.30 inch IMB-194-L fanless cell — same C7 80W and DP I/O as FS-1009, as its own FactorySmith SKU.
Product Overview
What the FS-1010 is built for.
FS-1010 shares the FS-1009 envelope (7.00 × 5.40 × 10.30 inches), IMB-194-L motherboard window, C7 80W converter, and dual DisplayPort rear map. It is listed as a distinct FactorySmith model so OEM programs can lock a SKU without substituting FS-1009 on the drawing.
Key Features
Engineered for reliability and integration.

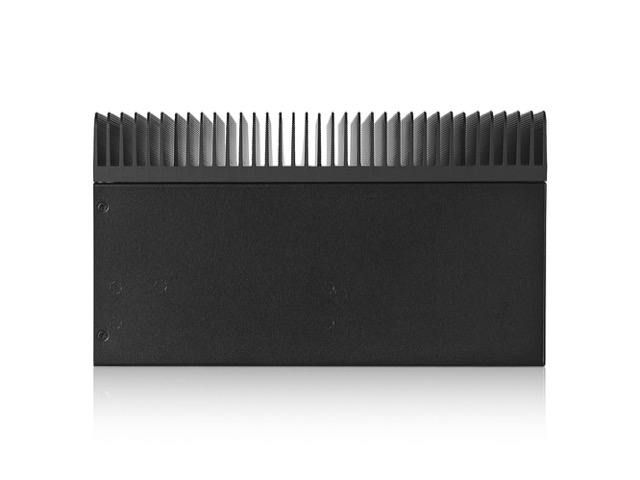

- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: IMB-194-L Mother
- Drive map: Internal Drive Bay: 2.5" HDD x 1
- Expansion: Expansion PCI/PCI-E Raw slot x1
- Power: C7(80W)
- Envelope (W×H×D): 7.00" x 5.40" x 10.30"
- Front power, LED, and USB service cluster as specified
Specifications
Technical specifications.
| Model Number | FS-1010 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | Desktop |
| Motherboard Support | IMB-194-L Mother |
| Drive Bays | Internal Drive Bay: 2.5" HDD x 1 |
| Expansion Slots | Expansion PCI/PCI-E Raw slot x1 |
| Cooling | Fanless |
| PSU Support | C7(80W) |

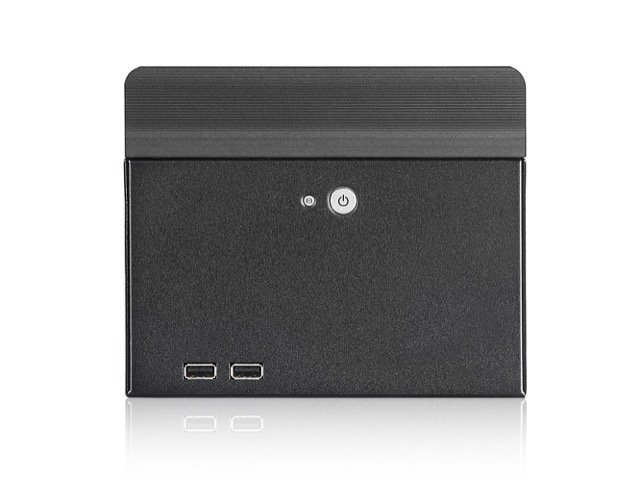

| Front Panel | Power SW · Power LED · HDD LED · USB 2.0 Port x2 |

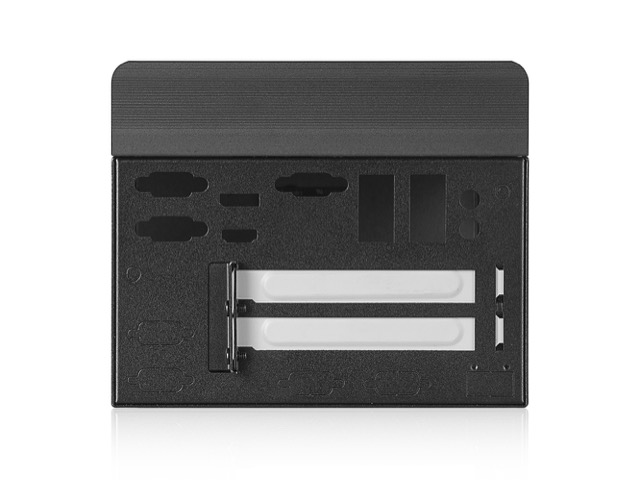

| Rear Panel | Expansion PCI/PCI-E Raw slot x1 · USB 3.0 Port x4 · VGA x 1 · COM port x6 · HDMI x1 · Gigabit LAN x 2 · Display Port x2 · MIC x 1 · Line out x1 · 12V DC in |
| Dimensions | 7.00" x 5.40" x 10.30" · 177.8 mm x 137.2 mm x 261.6 mm |
| Certification | RoHS compliant |
Applications
Where the FS-1010 is deployed.
Fanless Desktop IPC
Silent Mini-ITX / microATX cell for bench, kiosk, and wall-mount.
Factory Automation
COM-rich and slot-capable SKUs in the same desktop family.
Digital Signage Engine
HDMI / DP / VGA cutouts on the compact Mini-ITX desktops.
OEM Fanless Box
Color, silk-screen, and converter matching under FactorySmith.
Customization Options
Adapt the FS-1010 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-1010 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-1010 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-1010 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
