Fanless Enclosure / FS-1011
Fanless Desktop for Mini-ITX
A vertical Mini-ITX fanless tower — 6.50 × 9.00 × 10.30 inches — IMB-194-L I/O on a C7 80W converter.
Product Overview
What the FS-1011 is built for.
FS-1011 stands the IMB-194-L fanless desktop on end: 6.50 × 9.00 × 10.30 inches, one PCI/PCI-E slot, a 2.5" bay, and C7 80W 12V. Use the tall body when floor or shelf depth is tighter than the 7.00 inch-wide FS-1009/1010 brick.
Key Features
Engineered for reliability and integration.

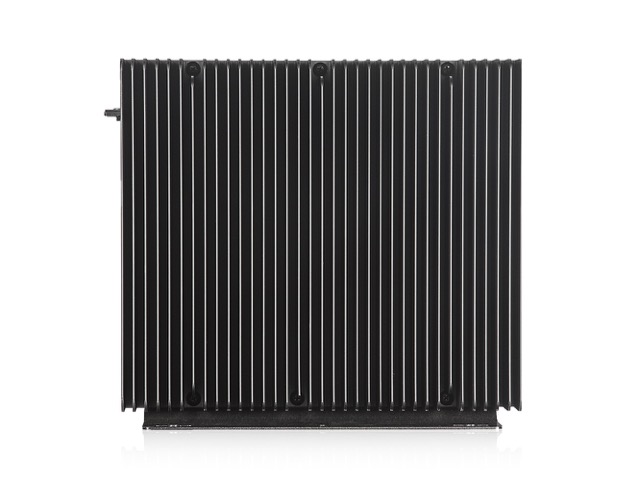

- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: IMB-194-L Mother
- Drive map: Internal Drive Bay: 2.5" HDD x 1
- Expansion: Expansion PCI/PCI-E Raw slot x1
- Power: C7(80W)
- Envelope (W×H×D): 6.50" x 9.00" x 10.30"
- Front power, LED, and USB service cluster as specified
Specifications
Technical specifications.
| Model Number | FS-1011 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | Desktop |
| Motherboard Support | IMB-194-L Mother |
| Drive Bays | Internal Drive Bay: 2.5" HDD x 1 |
| Expansion Slots | Expansion PCI/PCI-E Raw slot x1 |
| Cooling | Fanless |
| PSU Support | C7(80W) |

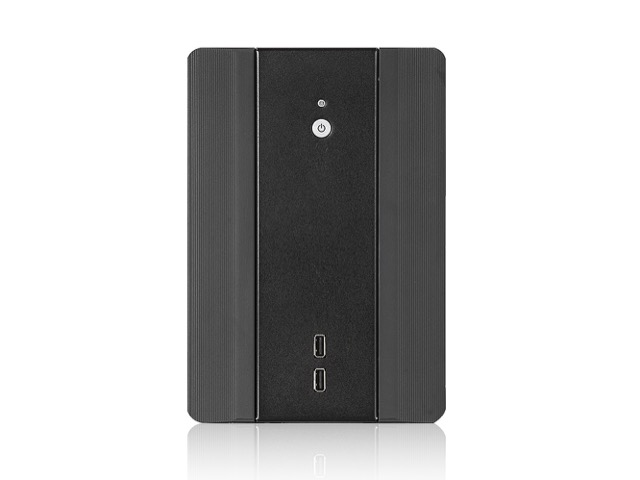

| Front Panel | Power SW · Power LED · HDD LED · USB 2.0 Port x2 |

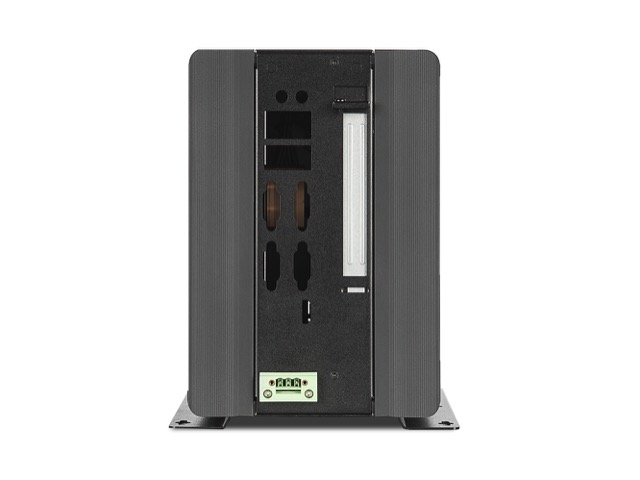

| Rear Panel | Expansion PCI/PCI-E Raw slot x1 · USB 3.0 Port x4 · VGA x 1 · COM port x6 · HDMI x1 · Gigabit LAN x 2 · Display Port x2 · Audio IN/OUT · 12V DC in |
| Dimensions | 6.50" x 9.00" x 10.30" · 165.1 mm x 228.6 mm x 261.6 mm |
| Certification | RoHS compliant |
Applications
Where the FS-1011 is deployed.
Fanless Desktop IPC
Silent Mini-ITX / microATX cell for bench, kiosk, and wall-mount.
Factory Automation
COM-rich and slot-capable SKUs in the same desktop family.
Digital Signage Engine
HDMI / DP / VGA cutouts on the compact Mini-ITX desktops.
OEM Fanless Box
Color, silk-screen, and converter matching under FactorySmith.
Customization Options
Adapt the FS-1011 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
