Fanless Enclosure / FS-1013
Fanless Desktop for Mini-ITX
The 5.10 inch-tall sibling of FS-1012 — Mini-ITX, C4 150W, hot-swap 3.5", and one slot-card opening.
Product Overview
What the FS-1013 is built for.
FS-1013 keeps the 15.00 × 10.20 inch Mini-ITX fanless plan and C4 19–24V 150W converter, but height grows to 5.10 inches to clear a rear slot-card opening. Internal 2.5" plus hot-swap 3.5" stay in the FS-1012 storage language.
Key Features
Engineered for reliability and integration.

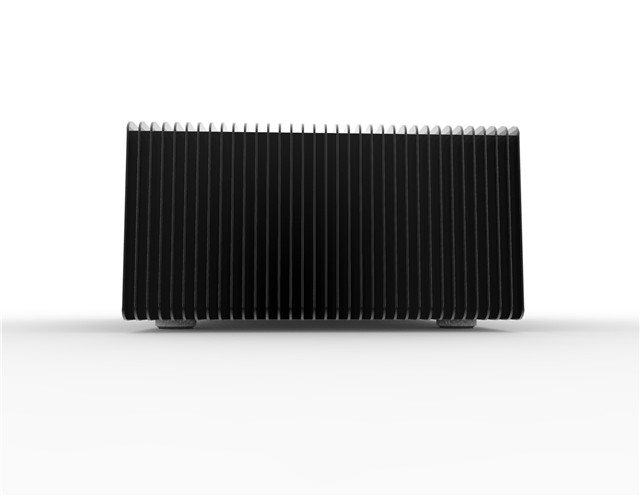

- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: Mini-ITX
- Drive map: Internal Drive Bay: 2.5" HDD x 1 · Hot-swap: SATA 3.5" HDD tray x1 (Hot-swap)
- Expansion: Solt-card x1
- Power: C4 DCV 19V - 24V 150W
- Envelope (W×H×D): 15.00" x 5.10" x 10.20"
- Front power, LED, and USB service cluster as specified
Specifications
Technical specifications.
| Model Number | FS-1013 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | Desktop |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: 2.5" HDD x 1 · Hot-swap: SATA 3.5" HDD tray x1 (Hot-swap) |
| Expansion Slots | Solt-card x1 |
| Cooling | Fanless |
| PSU Support | C4 DCV 19V - 24V 150W |

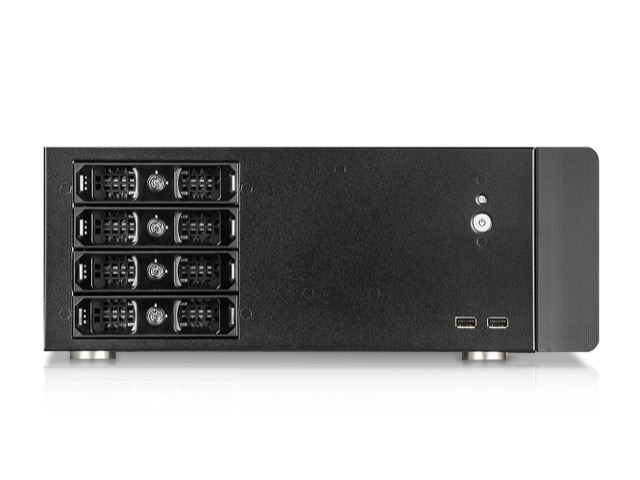

| Front Panel | Power SW x1 + LED + HDD LCD · USB 2.0 Port x2 (USB3.0 optional) |

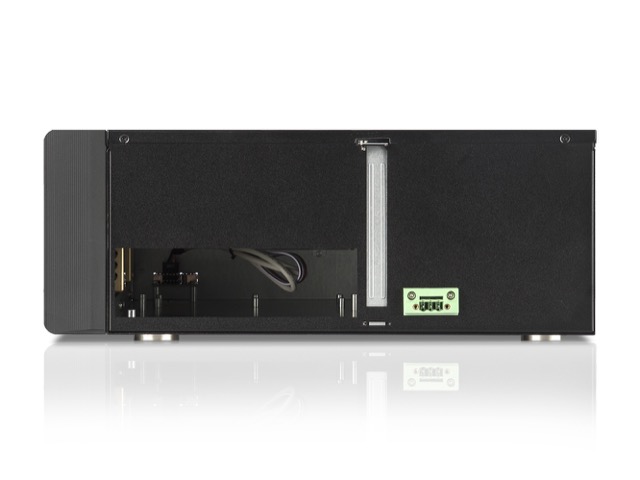

| Rear Panel | Standard I/O shield · Solt-card x1 |
| Dimensions | 15.00" x 5.10" x 10.20" · 381.0 mm x 129.5 mm x 259.1 mm |
| Certification | RoHS compliant |
Applications
Where the FS-1013 is deployed.
Fanless Desktop IPC
Silent Mini-ITX / microATX cell for bench, kiosk, and wall-mount.
Factory Automation
COM-rich and slot-capable SKUs in the same desktop family.
Digital Signage Engine
HDMI / DP / VGA cutouts on the compact Mini-ITX desktops.
OEM Fanless Box
Color, silk-screen, and converter matching under FactorySmith.
Customization Options
Adapt the FS-1013 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-1013 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-1013 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-1013 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
