IPC Rackmount / FS-11160
1U Industrial Rackmount Platform for Mini-ITX
1U Mini-ITX IPC with dual PCI, four front 3.5" hot-swap trays, slim ODD, and Flex ATX power.
Product Overview
What the FS-11160 is built for.

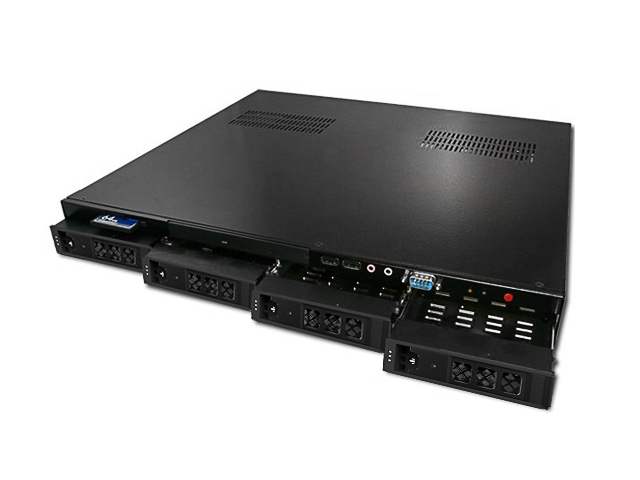

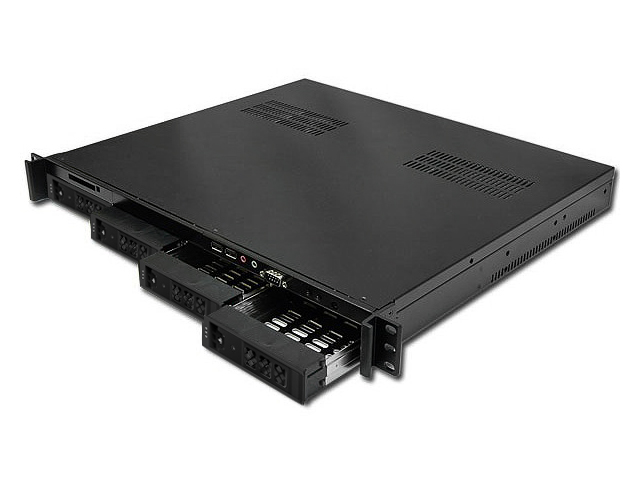

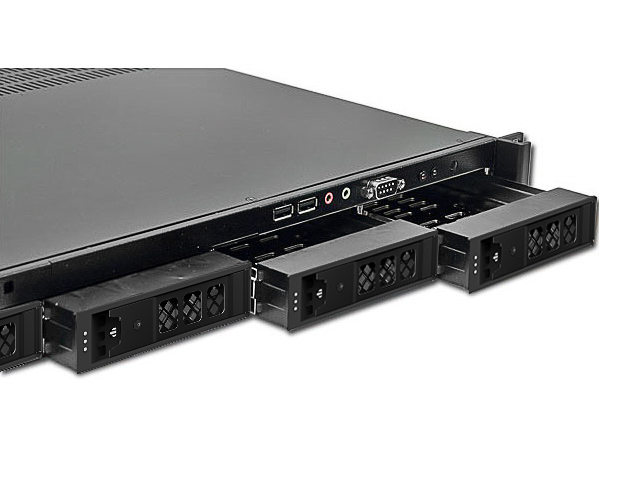

FS-11160 is a steel 1U Mini-ITX industrial chassis: 19.00 × 1.73 × 16.06 inches, two PCI slots, Flex ATX PSU, two 40 mm fans, and a storage mix of 2 × 2.5" IDE/SATA internal, four front 3.5" hot-swap trays, and a slim optical bay. Front CF cutoff and an extra RS232 mounting port sit on the bezel.
Key Features
Engineered for reliability and integration.
- External HDD trays for mini-itx motherboards, both internal & external hot-sawppable storage capacities
- Dual PCI expansion slots enabled; Supoprts up to 4 x SATA drive trays & 2 x IDE/SATA brackets.
- Board support: Mini-ITX
- Storage: Internal Drive Bay: 2 x 2.5" IDE/SATA HDD · Optical Drive Bay: 1 (Slim) · Hot-swap: 4 x 3.5" HDD Tray (Front)
- Expansion: 2 x PCI
- Cooling: 2 x 40mm fan
- PSU: Flex ATX
- Chassis: Heavy duty cold-rolled steel
Specifications
Technical specifications.
| Model Number | FS-11160 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 1U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: 2 x 2.5" IDE/SATA HDD · Optical Drive Bay: 1 (Slim) · Hot-swap: 4 x 3.5" HDD Tray (Front) |
| Expansion Slots | 2 x PCI |
| Cooling | 2 x 40mm fan |
| PSU Support | Flex ATX |
| Front Panel | LED: 1 x Activity; 1 x Power · USB: 2 · Power SW: 1 · Audio: 1 |
| I/O Shield | 2 x Universal I/O |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 23 |
| Memory Height | Accepts standard size |
| Compact Flash | 1 x CF Cutoff (Front) |
| Extra Mounting | 1 x RS232 |
| Dimensions | 19.00" x 1.73" x 16.06" · 482.6 mm x 43.9 mm x 407.9 mm |
| Certification | RoHS compliant |
Applications
Where the FS-11160 is deployed.
Industrial Control
1U IPC chassis for PLC, SCADA, and line controllers.
Machine Vision Host
2 x PCI for capture and GPU/FPGA cards.
Factory Storage Node
Internal Drive Bay: 2 x 2.5" IDE/SATA HDD · Optical Drive Bay: 1 (Slim) · Hot-swap: 4 x 3.5" HDD Tray (Front)
OEM/ODM Rack IPC
Bezel, PSU, and bay options under a FactorySmith drawing.
Customization Options
Adapt the FS-11160 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-11160 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-11160 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-11160 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
