iStarUSA

1U

1U IPC platforms — single, dual, and quad-board Mini-ITX / Pico-ITX cells.

Discuss OEM / ODMStart a Project

Browse by attribute

1U1.5U2U3U4U≤4 Bays8 Bays16 Bays24+ BaysSingle PSURedundant PSUAir CoolingFanlessHigh-airflowEdge AIMachine VisionFactory AutomationStorage ServerData CenterStandardModifiedActiveLong Lifecycle

Products

iStarUSA FS-11160 — 1U Industrial Rackmount Platform for Mini-ITX

FS-11160

Active

1U Industrial Rackmount Platform for Mini-ITX

1U · Mini-ITX · Internal Drive Bay: 2 x 2.5" IDE/SATA HDD ·… · 2 x PCI · 2 x 40mm fan

View Product Detail

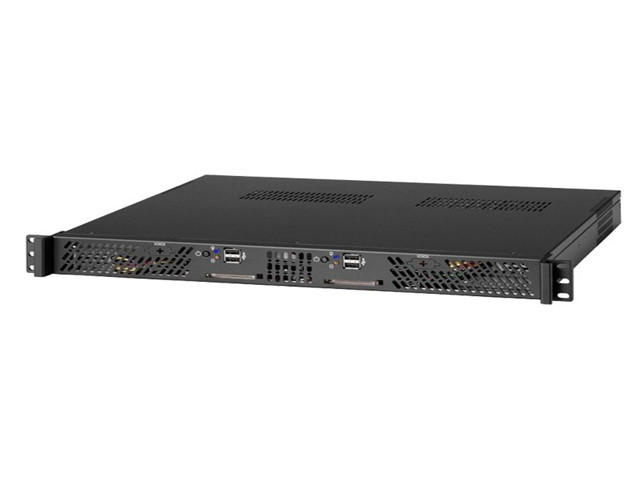

iStarUSA FS-11200 — 1U Rackmount Chassis with Two Mini-ITX Systems

FS-11200

Active

1U Rackmount Chassis with Two Mini-ITX Systems

1U · Mini-ITX · Internal Drive Bay: 2 x 3.5" · 2 x 40mm fan

View Product Detail

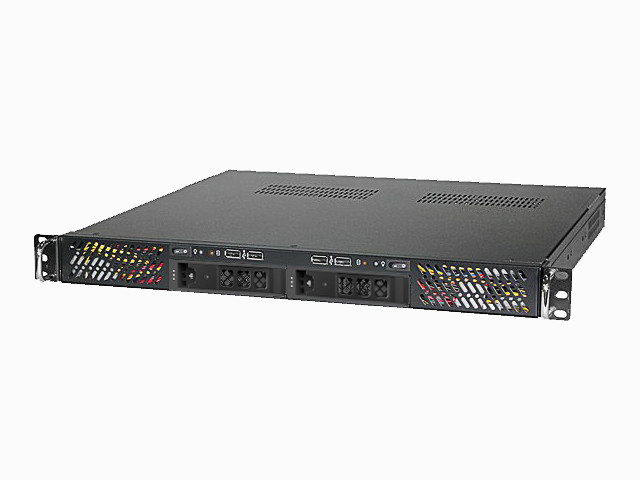

iStarUSA FS-11220 — 1U Dual Mini-ITX Chassis with Dual Hot-swap Trays

FS-11220

Active

1U Dual Mini-ITX Chassis with Dual Hot-swap Trays

1U · Mini-ITX · Internal Drive Bay: 2 x 2.5" HDD · Hot-swap:… · 4 x 40mm fan

View Product Detail

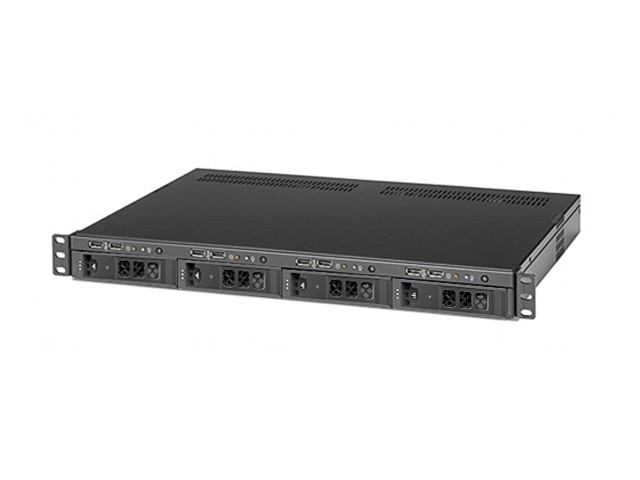

iStarUSA FS-1140 — 1U Chassis for 4 × Pico-ITX Boards

FS-1140

Active

1U Chassis for 4 × Pico-ITX Boards

1U · Pico-ITX · Internal Drive Bay: 4 x 2.5" HDD (When CF… · 2 x 40mm fan

View Product Detail

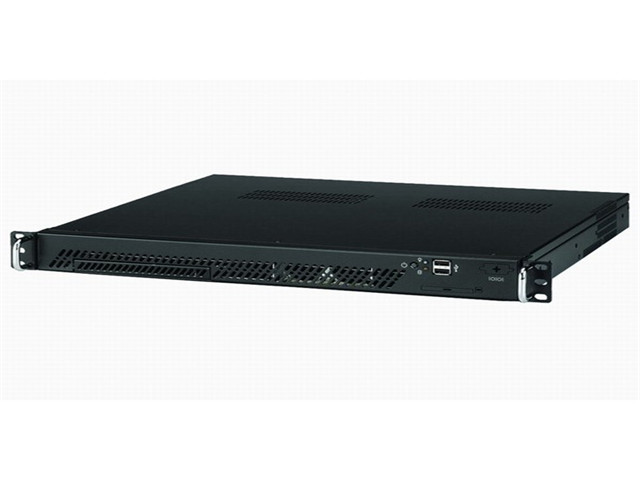

iStarUSA FS-1146 — 1U Industrial Rackmount Dual-PCI Slots

FS-1146

Active

1U Industrial Rackmount Dual-PCI Slots

1U · Mini-ITX · Internal Drive Bay: 4 x 3.5" / 2.5" · Optical… · 2 x PCI

View Product Detail

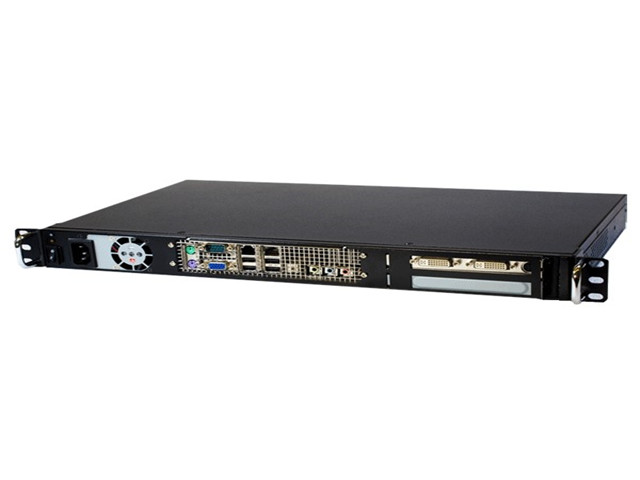

iStarUSA FS-11900 — 1U Chassis with Multi I/O on Front Panel

FS-11900

Active

1U Chassis with Multi I/O on Front Panel

1U · Mini-ITX · Internal Drive Bay: 1 x 3.5" OR 2 x 2.5" · expansion · 2 x 40mm fan

View Product Detail

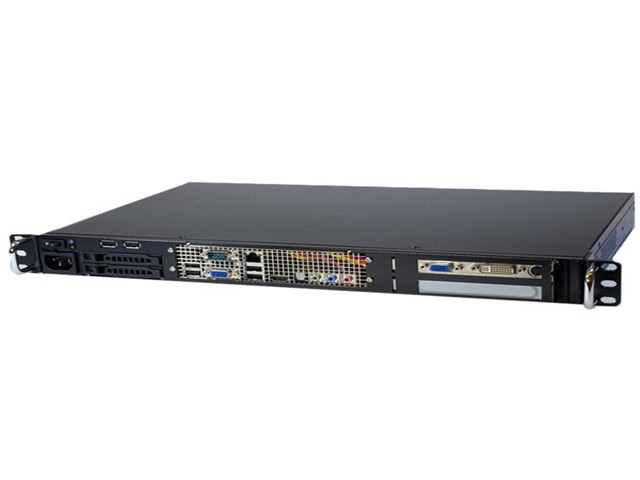

iStarUSA FS-11901 — 1U Rackmount with Multi I/O on the Front Panel

FS-11901

Active

1U Rackmount with Multi I/O on the Front Panel

1U · Mini-ITX · Internal Drive Bay: 2 x 2.5" HDD · Hot-swap:… · expansion · 2 x 40mm fan

View Product Detail

Spec Comparison

ModelForm FactorMotherboardDrive BaysExpansion SlotsCoolingPSUDimensions
FS-111601UMini-ITXInternal Drive Bay: 2 x 2.5" IDE/SATA HDD · Optical Drive Bay: 1…2 x PCI2 x 40mm fanFlex ATX19.00" x 1.73" x 16.06" · 482.6 mm x 43.9 mm x 407.9 mm
FS-112001UMini-ITXInternal Drive Bay: 2 x 3.5"—2 x 40mm fanDC Solution or Flex ATX19.00" x 1.73" x 15.27" · 482.6 mm x 43.9 mm x 387.9 mm
FS-112201UMini-ITXInternal Drive Bay: 2 x 2.5" HDD · Hot-swap: 2 x 3.5" HDD Tray—4 x 40mm fanDC Solution or Flex ATX19.00" x 1.73" x 16.06" · 482.6 mm x 43.9 mm x 407.9 mm
FS-11401UPico-ITXInternal Drive Bay: 4 x 2.5" HDD (When CF card readers are not…—2 x 40mm fan—19.00" x 1.73" x 12.52" · 482.6 mm x 43.9 mm x 318.0 mm
FS-11461UMini-ITXInternal Drive Bay: 4 x 3.5" / 2.5" · Optical Drive Bay: 1 (Slim)2 x PCI—DC Solution or Flex ATX · AC 100V - 240V19.00" x 1.73" x 15.27" · 482.6 mm x 43.9 mm x 387.9 mm
FS-119001UMini-ITXInternal Drive Bay: 1 x 3.5" OR 2 x 2.5"2 x PCI cards OR 1 x PCIe card2 x 40mm fanDC Solution or Flex ATX19.00" x 1.73" x 11.10" · 482.6 mm x 43.9 mm x 281.9 mm
FS-119011UMini-ITXInternal Drive Bay: 2 x 2.5" HDD · Hot-swap: 2 x 2.5" HDD2 x PCI cards OR 1 x PCIe card2 x 40mm fanFlex ATX19.00" x 1.73" x 11.50" · 482.6 mm x 43.9 mm x 292.1 mm

Start a project

Need a variant of this platform?

Quote this model on its product page, or start a project for OEM/ODM, system build and integration, or data center planning and deployment.

Start a Project
