IPC Rackmount / FS-1146
1U Industrial Rackmount Dual-PCI Slots
1U Mini-ITX with dual PCI (7" × 4.2" card allowance), four 3.5"/2.5" internals, slim ODD, DC or Flex ATX.
Product Overview
What the FS-1146 is built for.
FS-1146 is the dual-PCI 1U Mini-ITX workhorse: 19.00 × 1.73 × 15.27 inches, PCI card length allowance 7" × 4.2", four mixed 3.5"/2.5" internal bays, slim optical, CF cutoff, and DC or Flex ATX with AC 100–240V adapter input. Front I/O is two USB plus serial-friendly layout rather than the multi-I/O of FS-11900.
Key Features
Engineered for reliability and integration.
- 1U industrial rackmount platform that accepts mini-itx form factor motherboard

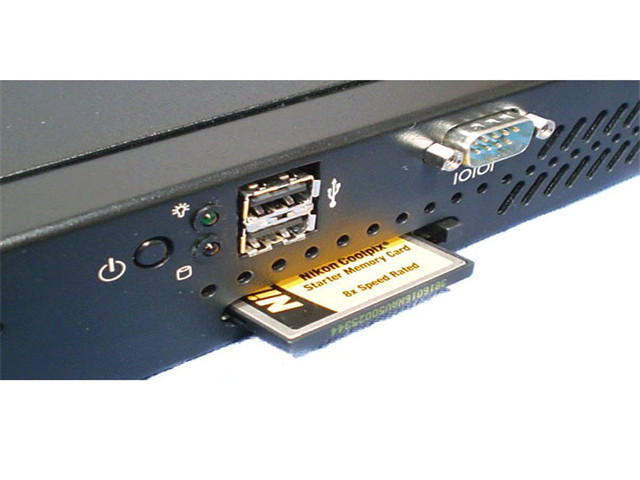

- Front accessible: 1 x Serial port, 1 x Power, 2 x USB 2.0 ports
- Dual PCI expansion slot
- Board support: Mini-ITX

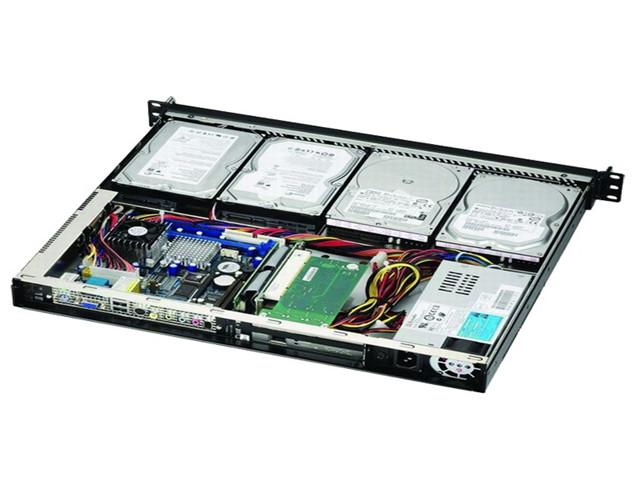

- Storage: Internal Drive Bay: 4 x 3.5" / 2.5" · Optical Drive Bay: 1 (Slim)
- Expansion: 2 x PCI
- PSU: DC Solution or Flex ATX · AC 100V - 240V
- Chassis: Heavy duty cold-rolled steel
Specifications
Technical specifications.
| Model Number | FS-1146 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 1U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: 4 x 3.5" / 2.5" · Optical Drive Bay: 1 (Slim) |
| Expansion Slots | 2 x PCI |
| Expansion Notes | PCI card length allowance 7" x 4.2" (L x H) |

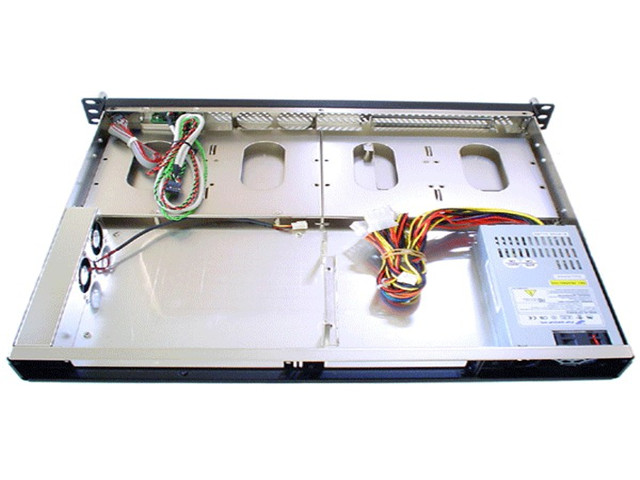

| PSU Support | DC Solution or Flex ATX · AC 100V - 240V |
| Front Panel | LED: 1 x Activity; 1 x Power · USB: 2 · Power SW: 1 |
| I/O Shield | 2 x Universal I/O |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 20 |
| Mounting | Optional sliding rail, rear/center mount brackets |
| Memory Height | Accepts standard size |
| Compact Flash | 1 x CF Cutoff (Front) |
| Dimensions | 19.00" x 1.73" x 15.27" · 482.6 mm x 43.9 mm x 387.9 mm |
| Certification | RoHS compliant |
Applications
Where the FS-1146 is deployed.
Industrial Control
1U IPC chassis for PLC, SCADA, and line controllers.
Machine Vision Host
2 x PCI for capture and GPU/FPGA cards.
Factory Storage Node
Internal Drive Bay: 4 x 3.5" / 2.5" · Optical Drive Bay: 1 (Slim)
OEM/ODM Rack IPC
Bezel, PSU, and bay options under a FactorySmith drawing.
Customization Options
Adapt the FS-1146 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-1146 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-1146 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-1146 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
