IPC Rackmount / FS-11200
1U Rackmount Chassis with Two Mini-ITX Systems
A 1U dual Mini-ITX chassis — two boards in one rack unit, two internal 3.5", Flex ATX or DC.
Product Overview
What the FS-11200 is built for.

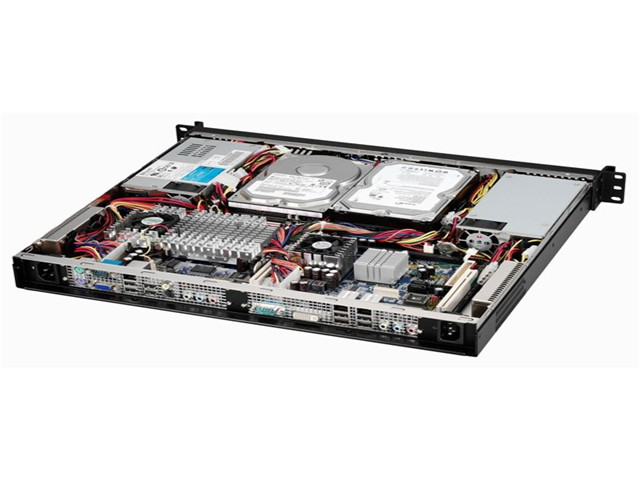

FS-11200 puts two Mini-ITX systems in a 19.00 × 1.73 × 15.27 inch 1U steel body. Front USB count is four; cooling is two 40 mm fans; PSU is DC solution or Flex ATX; extra mounting includes two RS232 ports. Internal storage is two 3.5" bays — a twin-node cell, not a tray-dense storage 1U.
Key Features
Engineered for reliability and integration.
- Compatible with 2 x Mini-ITX motherboards for maximum utilization for business
- Easy integration; Front accessible connectors
- Both internal & external storage capacity
- Board support: Mini-ITX
- Storage: Internal Drive Bay: 2 x 3.5"
- Cooling: 2 x 40mm fan
- PSU: DC Solution or Flex ATX
- Chassis: Heavy duty cold-rolled steel
Specifications
Technical specifications.
| Model Number | FS-11200 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 1U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: 2 x 3.5" |
| Cooling | 2 x 40mm fan |
| PSU Support | DC Solution or Flex ATX |
| Front Panel | LED: 1 x Activity; 1 x Power · USB: 4 · Power SW: 1 |
| I/O Shield | 2 x Universal I/O |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 23 |
| Mounting | Optional sliding rail, rear/center mount brackets |
| Memory Height | Accepts standard size |
| Compact Flash | 1 x CF Cutoff (Front) |
| Extra Mounting | 2 x RS232 |
| Dimensions | 19.00" x 1.73" x 15.27" · 482.6 mm x 43.9 mm x 387.9 mm |
| Certification | RoHS compliant |
Applications
Where the FS-11200 is deployed.
Dual-node Gateway
Two Mini-ITX systems in one rack unit for redundant or paired roles.
Split Workloads
Independent power switches and LED pairs where specified.
Industrial Storage Pair
Hot-swap trays shared or split across the two boards.
OEM Twin Cell
FactorySmith dual Mini-ITX program with Flex ATX or DC.
Customization Options
Adapt the FS-11200 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-11200 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-11200 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-11200 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
