Heavy-duty Network & Server Racks / WN1510
15U 1000mm Depth Rack-mount Server Cabinet
The deeper 15U Claytek WN cabinet: 1000 mm overall depth and 34" chassis clearance for longer rackmount servers, without stepping up to 22U.
Product Overview
What the WN1510 is built for.
WN1510 is the deeper 15U WN cabinet. It keeps the same 15U / 35.25" height as WN158, but is 1000 mm (39.50") deep — 23.50" × 35.25" × 39.50" (596.9 × 895.4 × 1,003.3 mm). Supported chassis depth is 34" and under; internal post-to-post clearance is 34.25" max. Choose this when 800 mm is too short for longer servers and you still want a half-height 15U footprint instead of 22U. Series locks, double rear doors, fans, and casters are unchanged. Sliding-rail option: WN1510-EX.

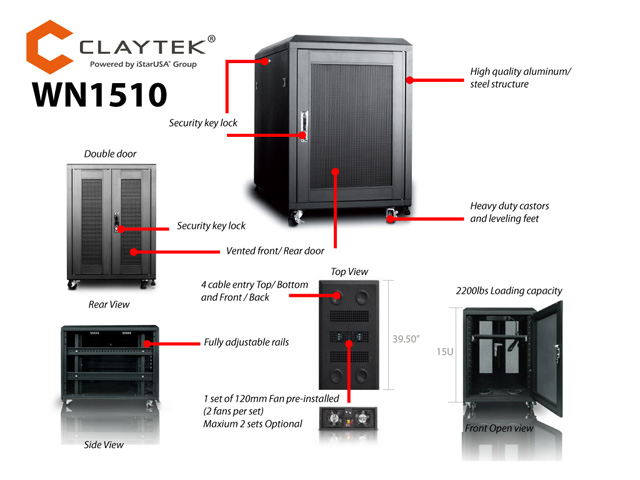

Key Features
Engineered for reliability and integration.
- 15U enclosed cabinet with 1000 mm (39.50") external depth
- Fits chassis 34" and under (internal post-to-post 34.25" max)
- Overall size 23.50" W × 35.25" H × 39.50" D (596.9 × 895.4 × 1,003.3 mm)
- Same 15U height as WN158, 200 mm deeper for longer servers

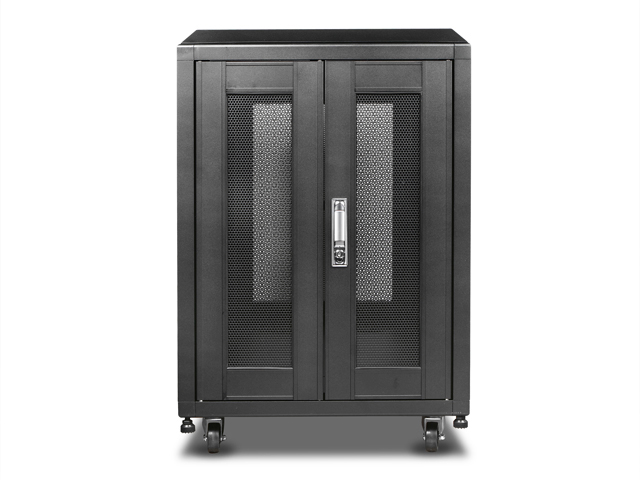

- Double rear doors for service access with less swing clearance

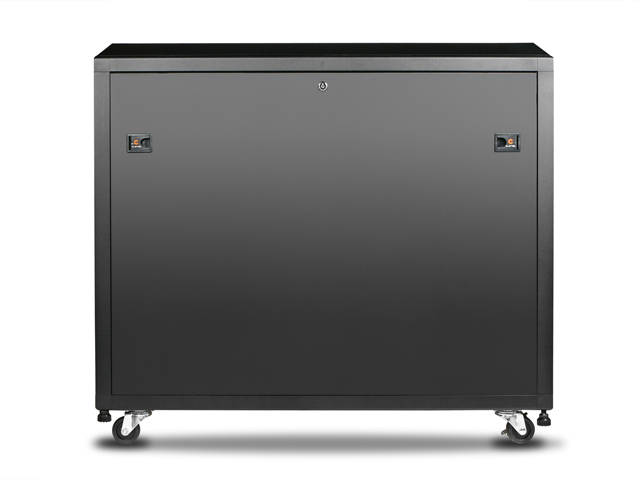

- Front, rear, and side-panel locks to prevent unauthorized access
- Cable entry from top/bottom and front/back

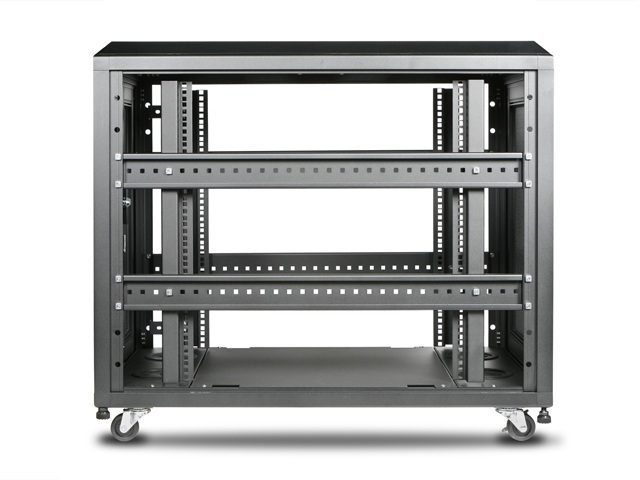

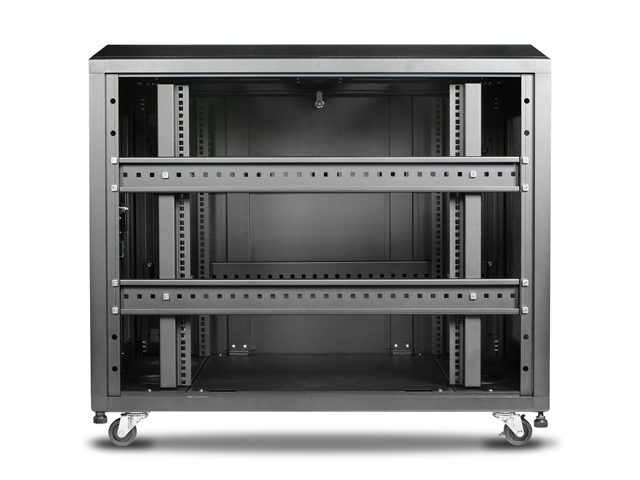

- Horizontally adjustable 19" mounting rails
- Vented doors plus a pre-installed 120mm AC fan set (up to 3 sets, p/n WA-SF120-2FAN)
- Locking casters and 50 sets of M5 screws and cage nuts included
- Optional silk-screen front door for OEM branding
- Sliding-rail variant available as WN1510-EX
Specifications
Technical specifications.
| Model Number | WN1510 |
|---|---|
| Product Category | Server Cabinet |
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Industry Standard | EIA-310 |
| Color | Black (RAL9011) |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm |
| Cooling | Pre-installed 1 × 120mm 120V AC fan set · up to 3 sets on top (p/n WA-SF120-2FAN) |
| Security | Front, rear, and side-panel locks |
| Mounting | Fully adjustable 19" rails · 50× M5 screws and cage nuts included |
| Certification | RoHS compliant |
| Form Factor | 15U |
| Cabinet Depth | 1000 mm (39.50") |
| Supported Chassis Depth | 34" and under |
| Internal Dimensions | Outer post-to-post 34.25" max (height and depth) |
| Dimensions | 23.50" × 35.25" × 39.50" · 596.9 mm × 895.4 mm × 1,003.3 mm |
| Notes | For HP/Dell/IBM servers with sliding rails, ask sales about WN1510-EX. HTS code: 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WN1510 is deployed.
Longer Rackmount Servers
34" chassis clearance and 34.25" post-to-post depth for deeper 1U/2U servers.
15U Where Height Is Capped
Adds depth instead of RU — use when 22U will not fit under a ceiling or in a short closet.
Data Center / Lab
Lockable 19" enclosure with 1000 mm depth for mixed server and network gear.
OEM/ODM Cabinet Programs
Silk-screen doors; sliding-rail option WN1510-EX for HP/Dell/IBM rails.
Customization Options
Adapt the WN1510 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WN1510 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WN1510 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WN1510 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
