Heavy-duty Network & Server Racks / WN228
22U 800mm Depth Rack-mount Server Cabinet
A 22U Claytek WN cabinet at 800 mm depth — more RU for mixed server, switch, and PDU layouts without a 1000 mm footprint.
Product Overview
What the WN228 is built for.
WN228 adds vertical space, not depth: 22U high and 800 mm (31.50") deep — 23.50" × 47.75" × 31.50" (596.9 × 1,212.9 × 800.1 mm). Chassis clearance stays 27.5" and under (internal 26.5" max), the same depth class as WN158. Use it when you need more rack units for mixed server, switch, and PDU layouts, but the room still cannot take a 1000 mm cabinet. Series doors, locks, casters, and 120 mm top fans are unchanged. Sliding-rail option: WN228-EX.
Key Features
Engineered for reliability and integration.
- 22U / 47.75" high enclosed cabinet, 800 mm (31.50") deep
- Fits chassis 27.5" and under (internal post-to-post 26.5" max) — same depth class as WN158
- Overall size 23.50" W × 47.75" H × 31.50" D (596.9 × 1,212.9 × 800.1 mm)
- Seven more RU than the 15U cabinets at the same 800 mm floor depth

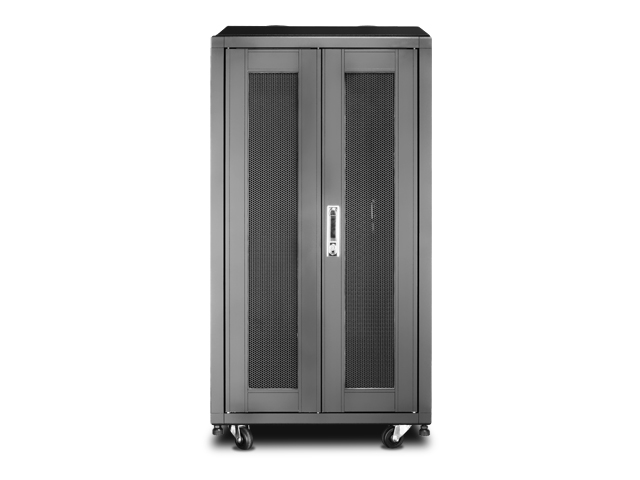

- Double rear doors for service access with less swing clearance

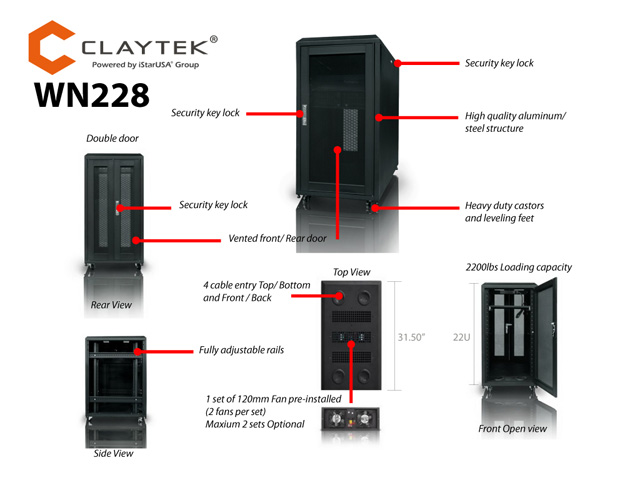

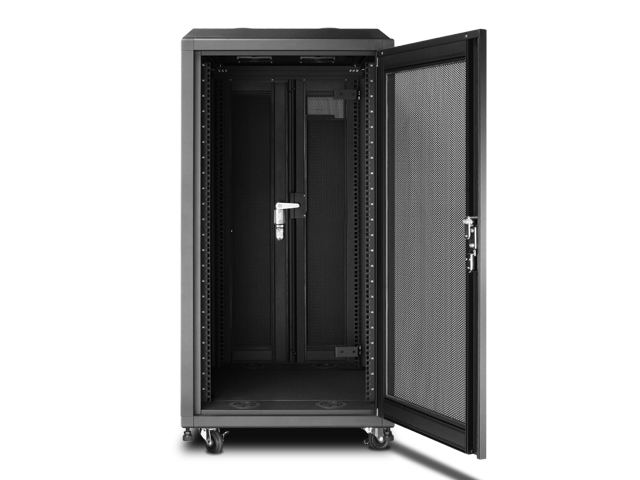

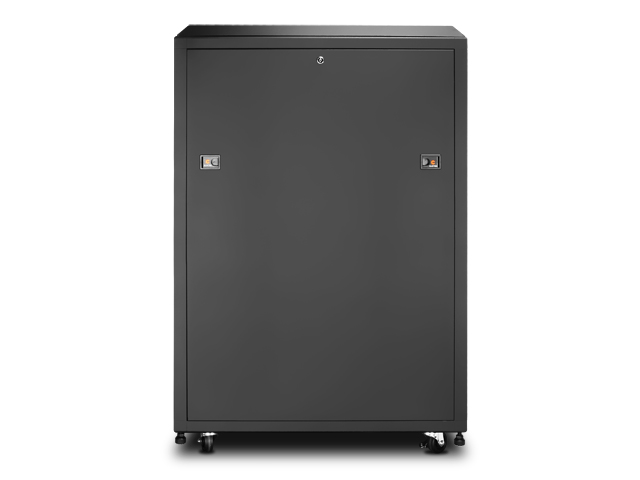

- Front, rear, and side-panel locks to prevent unauthorized access
- Cable entry from top/bottom and front/back

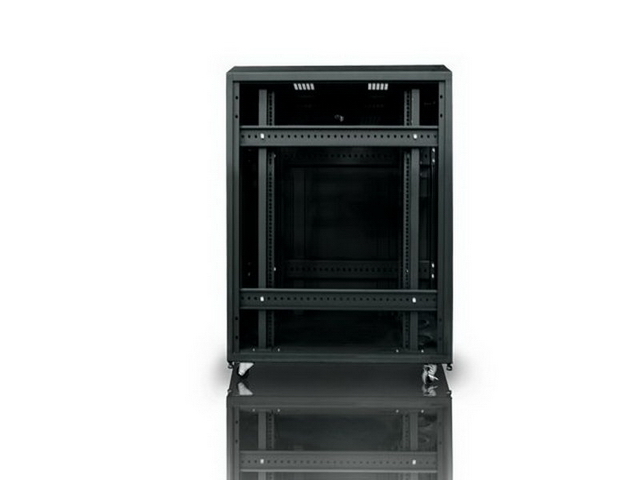

- Horizontally adjustable 19" mounting rails

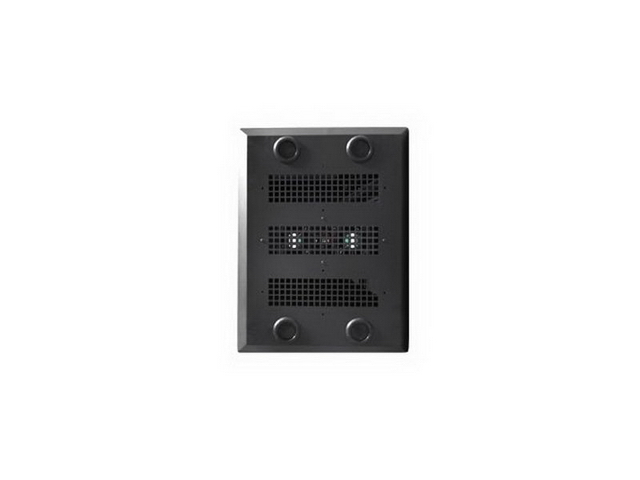

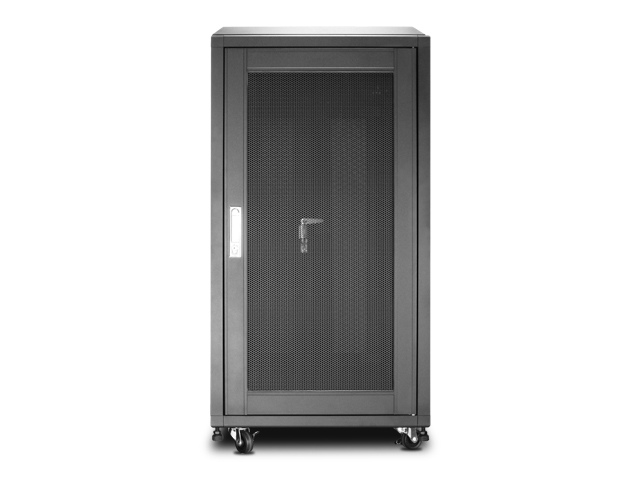

- Vented doors plus a pre-installed 120mm AC fan set (up to 3 sets, p/n WA-SF120-2FAN)
- Locking casters and 50 sets of M5 screws and cage nuts included
- Optional silk-screen front door for OEM branding
- Sliding-rail variant available as WN228-EX
Specifications
Technical specifications.
| Model Number | WN228 |
|---|---|
| Product Category | Server Cabinet |
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Industry Standard | EIA-310 |
| Color | Black (RAL9011) |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm |
| Cooling | Pre-installed 1 × 120mm 120V AC fan set · up to 3 sets on top (p/n WA-SF120-2FAN) |
| Security | Front, rear, and side-panel locks |
| Mounting | Fully adjustable 19" rails · 50× M5 screws and cage nuts included |
| Certification | RoHS compliant |
| Form Factor | 22U |
| Cabinet Depth | 800 mm (31.50") |
| Supported Chassis Depth | 27.5" and under |
| Internal Dimensions | Outer post-to-post 26.5" max (height and depth) |
| Dimensions | 23.50" × 47.75" × 31.50" · 596.9 mm × 1,212.9 mm × 800.1 mm |
| Notes | For HP/Dell/IBM servers with sliding rails, ask sales about WN228-EX. HTS code: 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WN228 is deployed.
Mixed Server + Network Stacks
22U of RU for servers, switches, and PDUs in an 800 mm-deep footprint.
Rooms That Cannot Take 1000 mm
Same 27.5" chassis class as WN158, with more vertical space.
MDF / IDF
Lockable 19" cabinet when you need height more than depth.
OEM/ODM Cabinet Programs
Silk-screen doors; sliding-rail option WN228-EX.
