Heavy-duty Network & Server Racks / WN2210
22U 1000mm Depth Rack-mount Server Cabinet
The largest of these four Claytek WN cabinets: 22U high and 1000 mm deep, for longer chassis plus switches and PDUs in one lockable 19" enclosure.
Product Overview
What the WN2210 is built for.
WN2210 combines WN228’s extra RU with WN1510’s extra depth: 22U high and 1000 mm (39.50") deep — 23.50" × 47.75" × 39.50" (596.9 × 1,212.9 × 1,003.3 mm). Supported chassis depth is 34" and under; internal post-to-post is 34.25" max. Use it for longer HP/Dell/IBM-class chassis plus switches and PDUs in one lockable 19" cabinet. Series hardware is the same. Sliding-rail option: WN2210-EX.
Key Features
Engineered for reliability and integration.
- 22U high and 1000 mm (39.50") deep enclosed cabinet
- Fits chassis 34" and under (internal post-to-post 34.25" max)
- Overall size 23.50" W × 47.75" H × 39.50" D (596.9 × 1,212.9 × 1,003.3 mm)
- Same height class as WN228, same depth class as WN1510

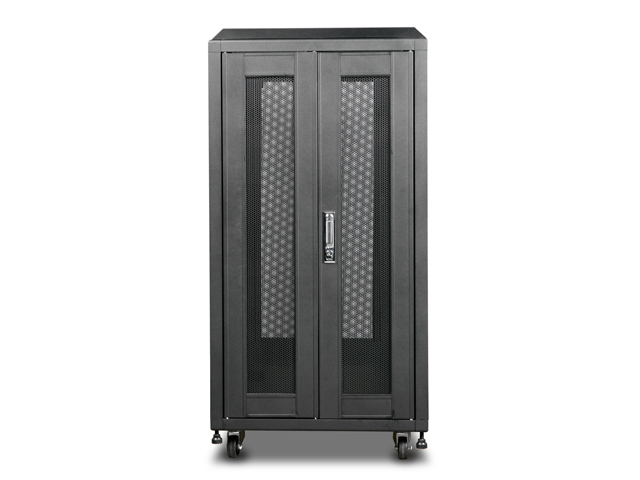

- Double rear doors for service access with less swing clearance

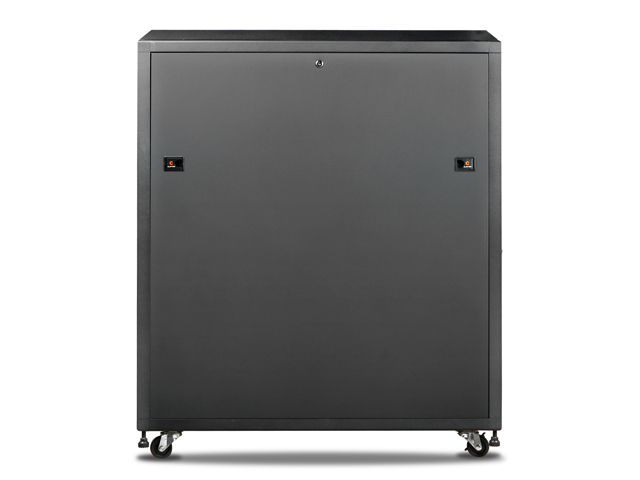

- Front, rear, and side-panel locks to prevent unauthorized access
- Cable entry from top/bottom and front/back

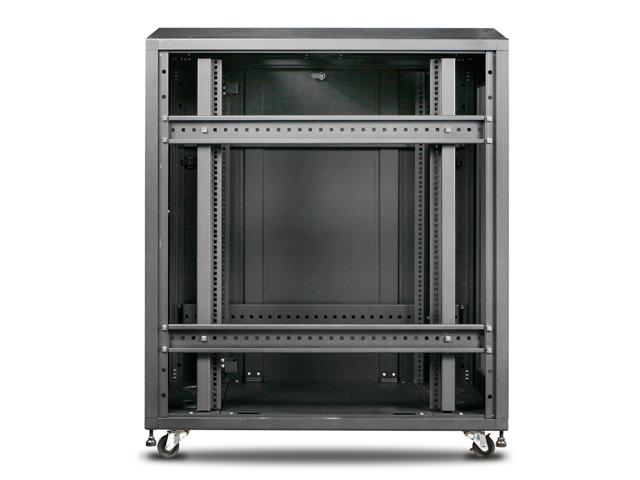

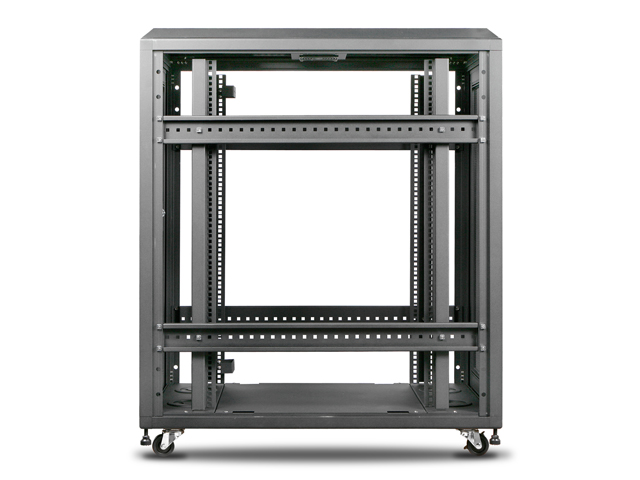

- Horizontally adjustable 19" mounting rails
- Vented doors plus a pre-installed 120mm AC fan set (up to 3 sets, p/n WA-SF120-2FAN)
- Locking casters and 50 sets of M5 screws and cage nuts included
- Optional silk-screen front door for OEM branding
- Sliding-rail variant available as WN2210-EX
Specifications
Technical specifications.
| Model Number | WN2210 |
|---|---|
| Product Category | Server Cabinet |
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Industry Standard | EIA-310 |
| Color | Black (RAL9011) |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm |
| Cooling | Pre-installed 1 × 120mm 120V AC fan set · up to 3 sets on top (p/n WA-SF120-2FAN) |
| Security | Front, rear, and side-panel locks |
| Mounting | Fully adjustable 19" rails · 50× M5 screws and cage nuts included |
| Certification | RoHS compliant |
| Form Factor | 22U |
| Cabinet Depth | 1000 mm (39.50") |
| Supported Chassis Depth | 34" and under |
| Internal Dimensions | Outer post-to-post 34.25" max (height and depth) |
| Dimensions | 23.50" × 47.75" × 39.50" · 596.9 mm × 1,212.9 mm × 1,003.3 mm |
| Notes | For HP/Dell/IBM servers with sliding rails, ask sales about WN2210-EX. HTS code: 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WN2210 is deployed.
Deeper Enterprise Servers
34" chassis clearance in 22U for longer HP/Dell/IBM-class systems.
Full Mixed Racks
Height of WN228 plus depth of WN1510 for servers, switches, and PDUs together.
Data Center / Lab
Lockable 19" cabinet when both RU count and chassis length matter.
OEM/ODM Cabinet Programs
Silk-screen doors; sliding-rail option WN2210-EX.
Customization Options
Adapt the WN2210 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WN2210 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WN2210 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WN2210 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
