Heavy-duty Network & Server Racks / WN158
15U 800mm Depth Rack-mount Server Cabinet
The compact Claytek WN cabinet: 15U high, 800 mm deep, for shorter rackmount servers in rooms that cannot take a 1000 mm cabinet.
Product Overview
What the WN158 is built for.
WN158 is the compact Claytek WN enclosed cabinet — 15U high and 800 mm (31.50") deep, measuring 23.50" × 35.25" × 31.50" (596.9 × 895.4 × 800.1 mm). Supported chassis depth is 27.5" and under, with internal post-to-post clearance of 26.5" max. Choose it for shorter rackmount servers and network gear in closets or branch rooms where a 1000 mm cabinet will not fit. Front/rear/side locks, vented doors, and a pre-installed 120 mm AC fan set are the same WN-series hardware as the deeper 15U model. For HP/Dell/IBM sliding-rail servers, ask sales about WN158-EX.
Key Features
Engineered for reliability and integration.

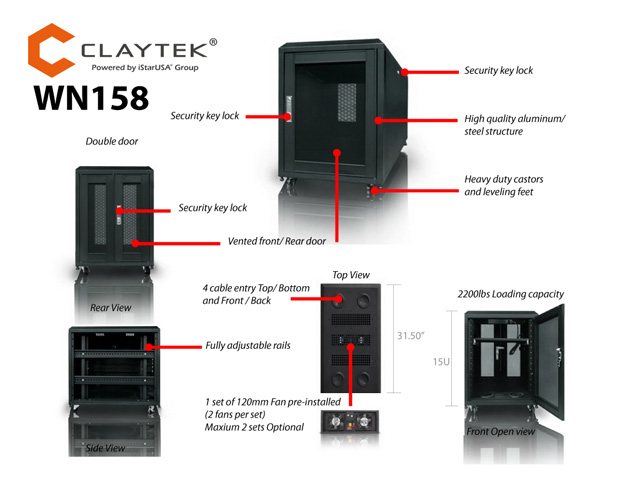

- 15U enclosed 19" cabinet — external depth 800 mm (31.50")
- Fits rackmount chassis 27.5" and under (internal post-to-post 26.5" max)
- Overall size 23.50" W × 35.25" H × 31.50" D (596.9 × 895.4 × 800.1 mm)
- Same 15U height as WN1510, 200 mm shallower — use when floor depth is limited

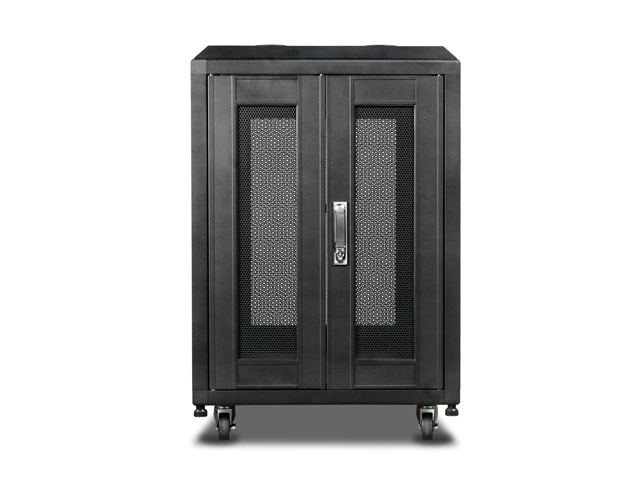

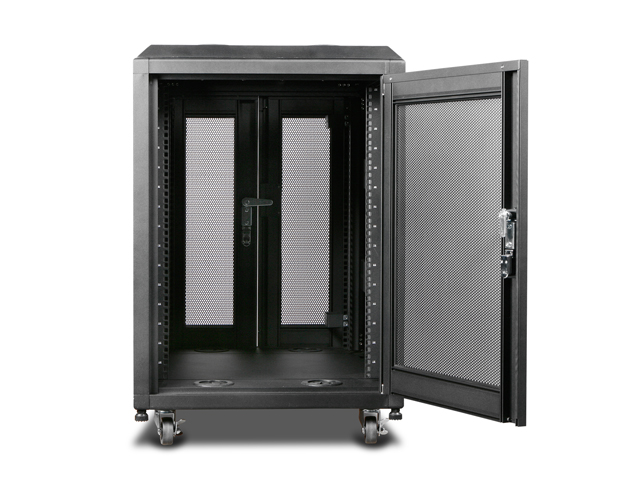

- Double rear doors for service access with less swing clearance

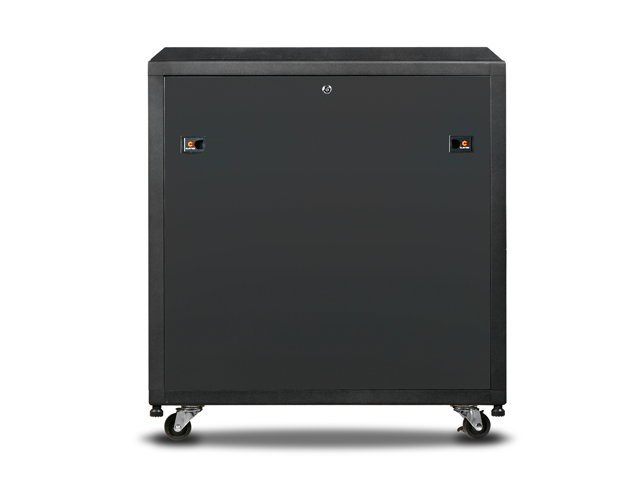

- Front, rear, and side-panel locks to prevent unauthorized access
- Cable entry from top/bottom and front/back

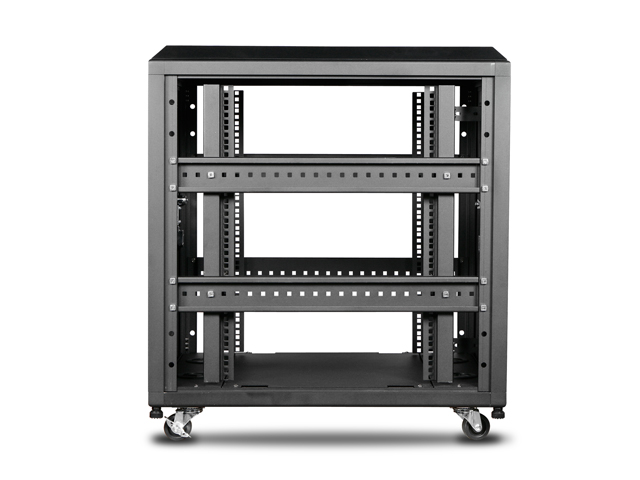

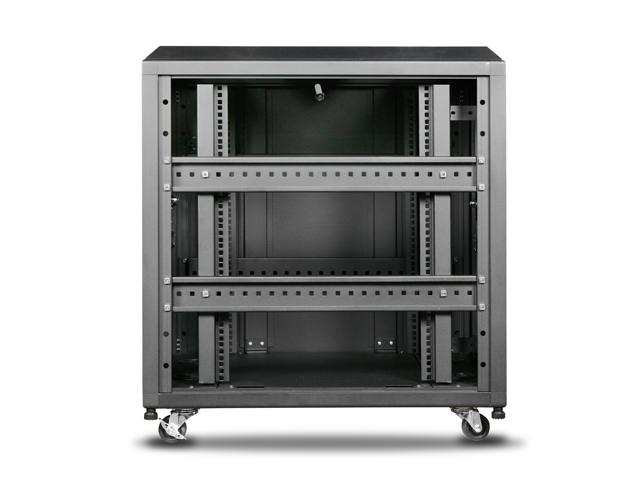

- Horizontally adjustable 19" mounting rails

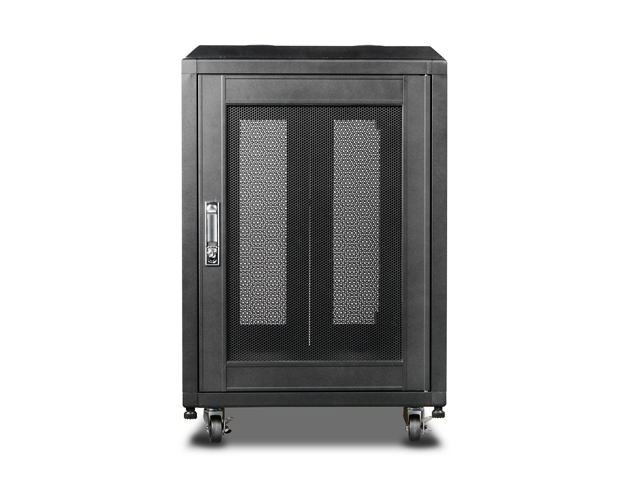

- Vented doors plus a pre-installed 120mm AC fan set (up to 3 sets, p/n WA-SF120-2FAN)
- Locking casters and 50 sets of M5 screws and cage nuts included
- Optional silk-screen front door for OEM branding
- Sliding-rail variant available as WN158-EX
Specifications
Technical specifications.
| Model Number | WN158 |
|---|---|
| Product Category | Server Cabinet |
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Industry Standard | EIA-310 |
| Color | Black (RAL9011) |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm |
| Cooling | Pre-installed 1 × 120mm 120V AC fan set · up to 3 sets on top (p/n WA-SF120-2FAN) |
| Security | Front, rear, and side-panel locks |
| Mounting | Fully adjustable 19" rails · 50× M5 screws and cage nuts included |
| Certification | RoHS compliant |
| Form Factor | 15U |
| Cabinet Depth | 800 mm (31.50") |
| Supported Chassis Depth | 27.5" and under |
| Internal Dimensions | Outer post-to-post 26.5" max (height and depth) |
| Dimensions | 23.50" × 35.25" × 31.50" · 596.9 mm × 895.4 mm × 800.1 mm |
| Notes | For HP/Dell/IBM servers with sliding rails, ask sales about WN158-EX. HTS code: 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WN158 is deployed.
Network Closet / IDF
15U × 800 mm footprint for MDF/IDF rooms that cannot accept a 1000 mm cabinet.
Shorter Rackmount Servers
Chassis 27.5" and under, with 26.5" max post-to-post clearance.
Branch / Edge IT
Lockable 19" housing with casters for labs and light industrial floors.
OEM/ODM Cabinet Programs
Silk-screen doors and rail kits on the WN158-EX sliding-rail option.
Customization Options
Adapt the WN158 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WN158 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WN158 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WN158 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
