Heavy-duty Network & Server Racks / WN3610
36U 1000mm Depth Rack-mount Server Cabinet
The deeper 36U Claytek WN cabinet: 1000 mm overall depth and 34" chassis clearance at full 36U height.
Product Overview
What the WN3610 is built for.
WN3610 keeps the 36U / 71.75" height of WN368 but is 1000 mm (39.50") deep — 23.50" × 71.75" × 39.50" (596.9 × 1,822.5 × 1,003.3 mm). Supported chassis depth is 34" and under; internal post-to-post is 34.25" max. Choose it when 800 mm is too short for longer servers and you want full-height 36U rather than 42U. Series locks, doors, fans, and casters are unchanged. Sliding-rail option: WN3610-EX. Optional WA-PLATE-HD for higher loading.
Key Features
Engineered for reliability and integration.
- 36U enclosed cabinet with 1000 mm (39.50") external depth
- Fits chassis 34" and under (internal post-to-post 34.25" max)
- Overall size 23.50" W × 71.75" H × 39.50" D (596.9 × 1,822.5 × 1,003.3 mm)
- Same 36U height as WN368, 200 mm deeper for longer servers

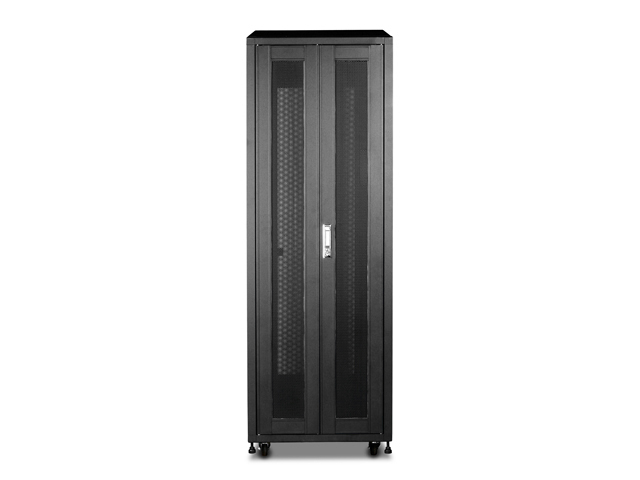

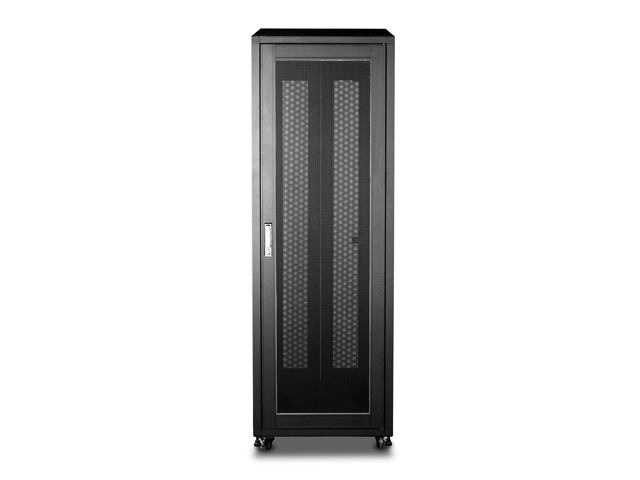

- Vented doors plus a pre-installed 120mm AC fan set (up to 3 sets, p/n WA-SF120-2FAN)

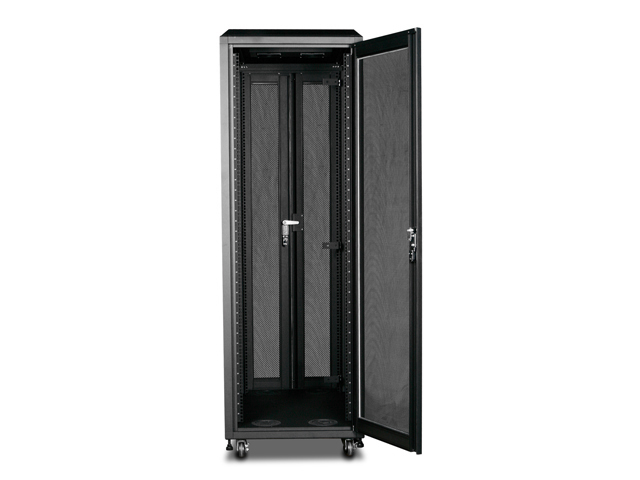

- Double rear doors for service access with less swing clearance
- Front, rear, and side-panel locks to prevent unauthorized access
- Cable entry from top/bottom and front/back

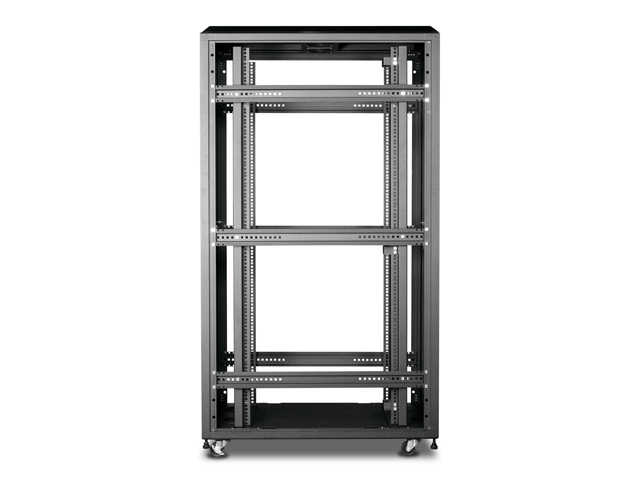

- Horizontally adjustable 19" mounting rails
- Locking casters and 50 sets of M5 screws and cage nuts included
- Optional silk-screen front door for OEM branding
- Sliding-rail variant available as WN3610-EX
- Optional WA-PLATE-HD to enhance loading capacity
Specifications
Technical specifications.
| Product Category | Server Cabinet |
|---|---|
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Industry Standard | EIA-310 |
| Color | Black (RAL9011) |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm |
| Cooling | Pre-installed 1 × 120mm 120V AC fan set · up to 3 sets on top (p/n WA-SF120-2FAN) |
| Security | Front, rear, and side-panel locks |
| Mounting | Fully adjustable 19" rails · 50× M5 screws and cage nuts included |
| Certification | RoHS compliant |
| Model Number | WN3610 |
| Form Factor | 36U |
| Cabinet Width | 600 mm class (23.50") |
| Cabinet Depth | 1000 mm (39.50") |
| Supported Chassis Depth | 34" and under |
| Internal Dimensions | Outer post-to-post 34.25" max (height and depth) |
| Dimensions | 23.50" × 71.75" × 39.50" · 596.9 mm × 1,822.5 mm × 1,003.3 mm |
| Notes | For HP/Dell/IBM servers with sliding rails, ask sales about WN3610-EX. Optional WA-PLATE-HD to enhance loading. HTS code: 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WN3610 is deployed.
Longer Rackmount Servers
34" chassis clearance in 36U for deeper 1U/2U enterprise servers.
Full-Height 1000 mm Rows
36U when 42U is more height than the room needs.
Data Center / Lab
Lockable 19" enclosure with 1000 mm depth for mixed gear.
OEM/ODM Cabinet Programs
Silk-screen doors; sliding-rail option WN3610-EX.
Customization Options
Adapt the WN3610 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WN3610 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WN3610 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WN3610 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
