Heavy-duty Network & Server Racks / WN368
36U 800mm Depth Rack-mount Server Cabinet
A full-height 36U Claytek WN cabinet at 800 mm depth — more RU than 22U without taking a 1000 mm footprint.
Product Overview
What the WN368 is built for.
WN368 is the 36U × 800 mm Claytek WN enclosed cabinet, measuring 23.50" × 71.75" × 31.50" (596.9 × 1,822.5 × 800.1 mm). Supported chassis depth is 27.5" and under, with internal post-to-post clearance of 26.5" max — the same depth class as WN158 and WN228, with 14 more RU than WN228. Use it for mixed server, switch, and PDU stacks in rooms that cannot take a 1000 mm cabinet. Loading is 2200 lbs static without casters (880 lbs with casters / 660 lbs dynamic); ask sales about P/N WA-PLATE-HD if you need higher capacity. Sliding-rail option: WN368-EX.

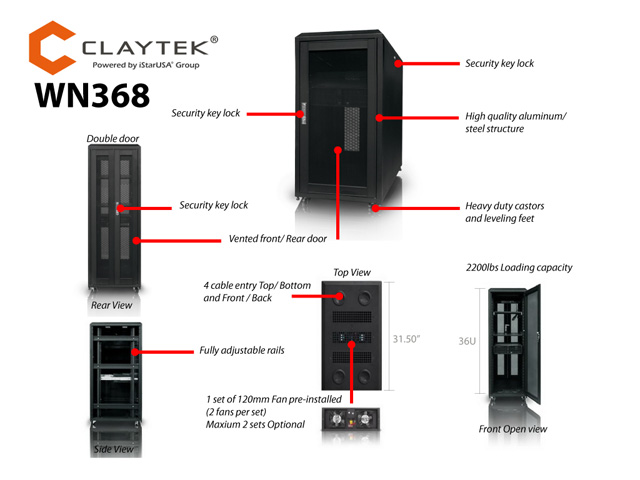

Key Features
Engineered for reliability and integration.
- 36U / 71.75" high enclosed cabinet, 800 mm (31.50") deep
- Fits chassis 27.5" and under (internal post-to-post 26.5" max)
- Overall size 23.50" W × 71.75" H × 31.50" D (596.9 × 1,822.5 × 800.1 mm)
- Same 800 mm depth class as WN228, 14 more RU

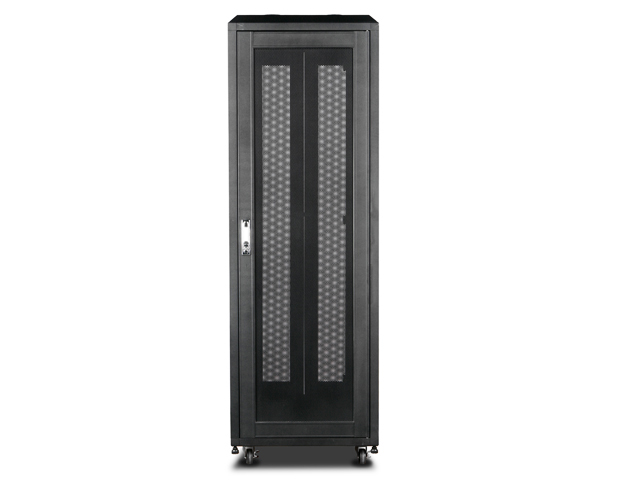

- Vented doors plus a pre-installed 120mm AC fan set (up to 3 sets, p/n WA-SF120-2FAN)

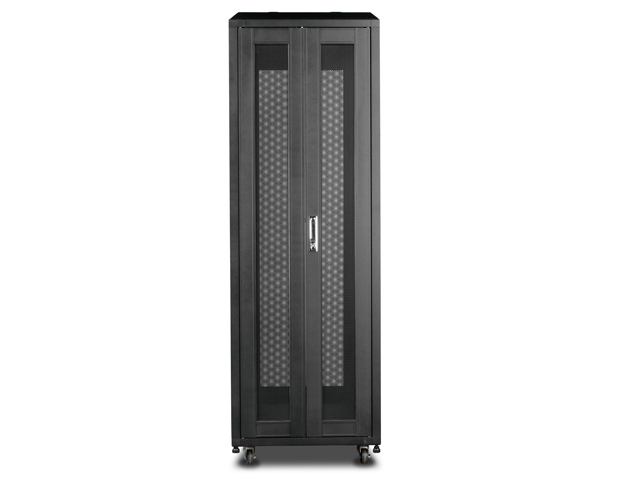

- Double rear doors for service access with less swing clearance

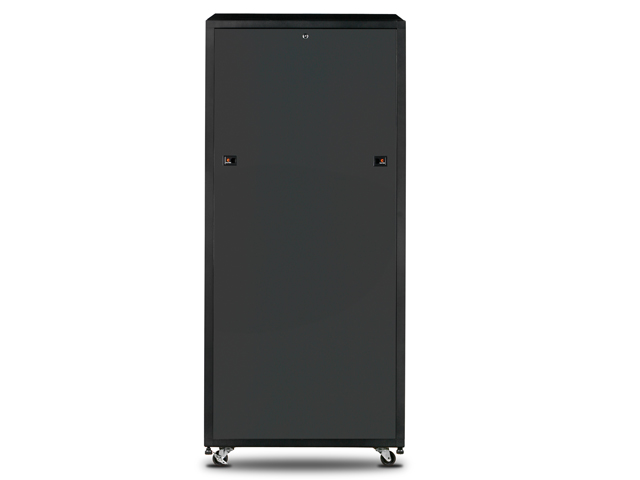

- Front, rear, and side-panel locks to prevent unauthorized access
- Cable entry from top/bottom and front/back

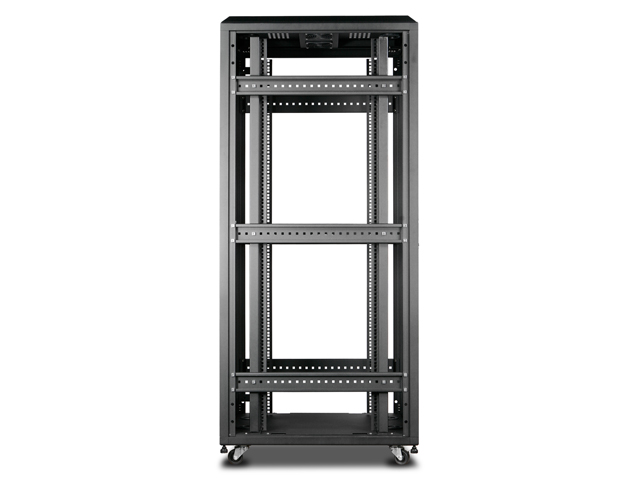

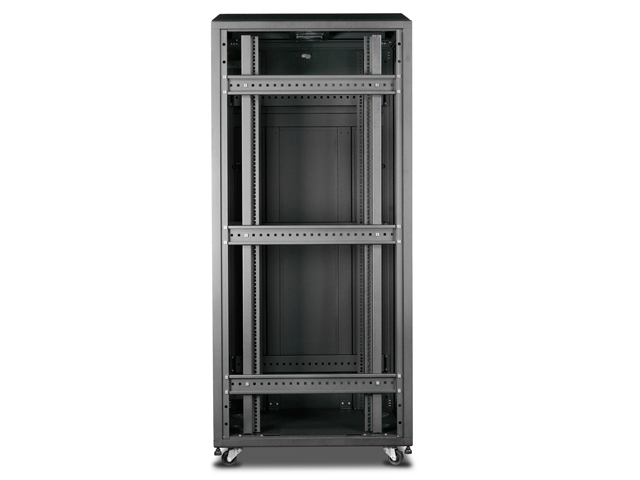

- Horizontally adjustable 19" mounting rails
- Locking casters and 50 sets of M5 screws and cage nuts included
- Optional silk-screen front door for OEM branding
- Sliding-rail variant available as WN368-EX
- Optional WA-PLATE-HD to enhance loading capacity
Specifications
Technical specifications.
| Product Category | Server Cabinet |
|---|---|
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Industry Standard | EIA-310 |
| Color | Black (RAL9011) |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm |
| Cooling | Pre-installed 1 × 120mm 120V AC fan set · up to 3 sets on top (p/n WA-SF120-2FAN) |
| Security | Front, rear, and side-panel locks |
| Mounting | Fully adjustable 19" rails · 50× M5 screws and cage nuts included |
| Certification | RoHS compliant |
| Model Number | WN368 |
| Form Factor | 36U |
| Cabinet Width | 600 mm class (23.50") |
| Cabinet Depth | 800 mm (31.50") |
| Supported Chassis Depth | 27.5" and under |
| Internal Dimensions | Outer post-to-post 26.5" max (height and depth) |
| Dimensions | 23.50" × 71.75" × 31.50" · 596.9 mm × 1,822.5 mm × 800.1 mm |
| Notes | For HP/Dell/IBM servers with sliding rails, ask sales about WN368-EX. Optional WA-PLATE-HD to enhance loading. HTS code: 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WN368 is deployed.
Full-Height Mixed Racks
36U of RU for servers, switches, and PDUs in an 800 mm-deep footprint.
Rooms That Cannot Take 1000 mm
Same 27.5" chassis class as WN158/WN228, with data-center height.
MDF / IDF
Lockable 19" cabinet when you need height more than depth.
OEM/ODM Cabinet Programs
Silk-screen doors; sliding-rail option WN368-EX.
Customization Options
Adapt the WN368 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WN368 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WN368 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WN368 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
