Heavy-duty Network & Server Racks / WN428
42U 800mm Depth Rack-mount Server Cabinet
A standard-height 42U Claytek WN cabinet at 800 mm depth — full data-center RU count in a shallow footprint.
Product Overview
What the WN428 is built for.
WN428 is the 42U × 800 mm Claytek WN enclosed cabinet, measuring 23.50" × 82.50" × 31.50" (596.9 × 2,095.5 × 800.1 mm). Supported chassis depth is 27.5" and under (internal 26.5" max). Use it when you need a conventional 42U rack height but the aisle or room cannot take 1000 mm or 1200 mm cabinets. Same WN locks, double rear doors, and 120 mm top fans as the 15U–36U 800 mm models. Sliding-rail option: WN428-EX. Optional WA-PLATE-HD for higher loading.

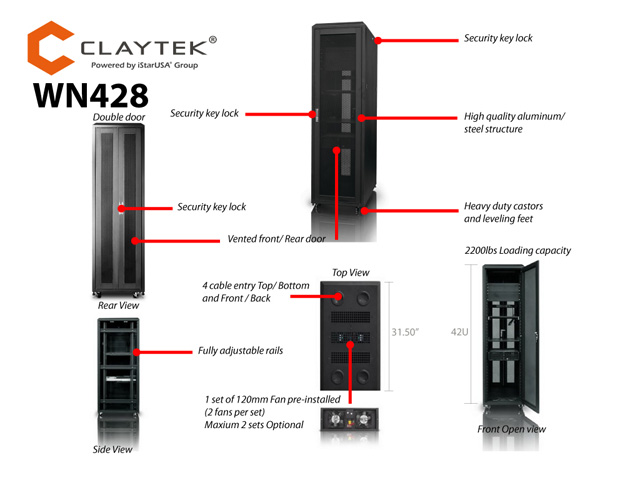

Key Features
Engineered for reliability and integration.
- 42U / 82.50" high enclosed cabinet, 800 mm (31.50") deep
- Fits chassis 27.5" and under (internal post-to-post 26.5" max)
- Overall size 23.50" W × 82.50" H × 31.50" D (596.9 × 2,095.5 × 800.1 mm)
- Standard 42U height at the same 800 mm depth as WN368
- Vented doors plus a pre-installed 120mm AC fan set (up to 3 sets, p/n WA-SF120-2FAN)

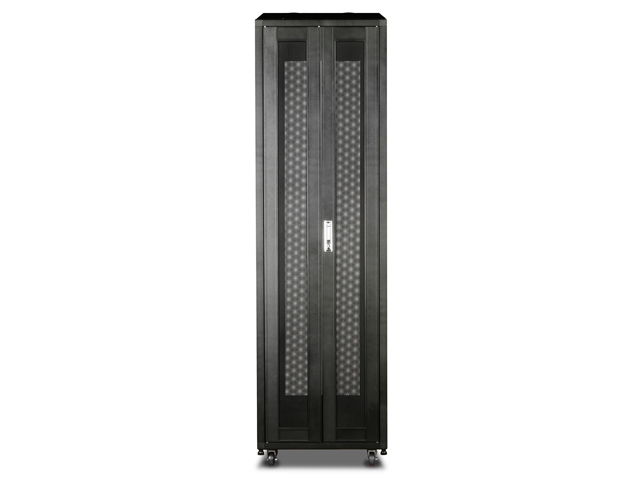

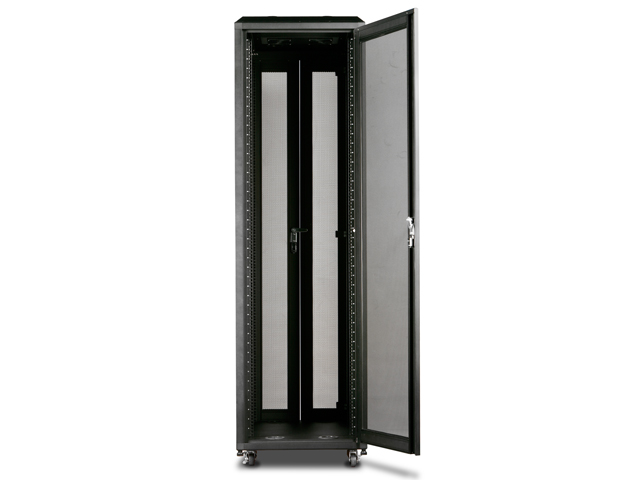

- Double rear doors for service access with less swing clearance
- Front, rear, and side-panel locks to prevent unauthorized access
- Cable entry from top/bottom and front/back

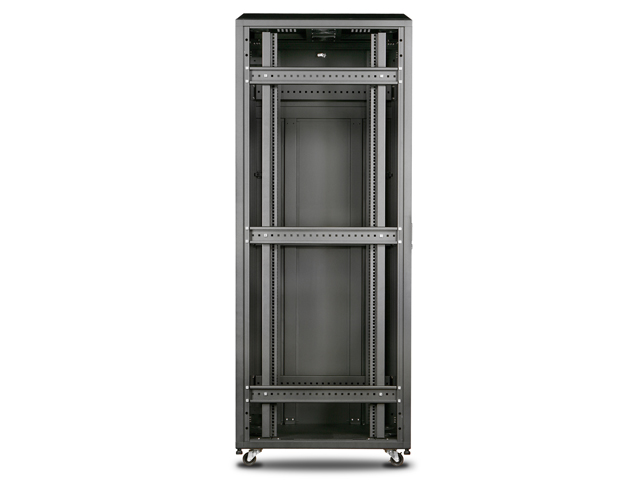

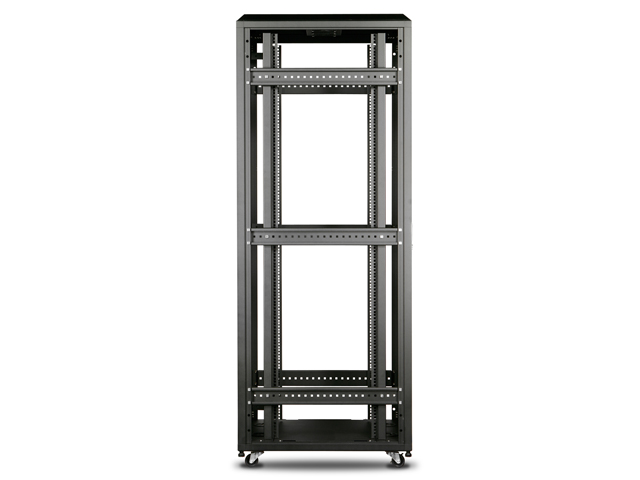

- Horizontally adjustable 19" mounting rails
- Locking casters and 50 sets of M5 screws and cage nuts included
- Optional silk-screen front door for OEM branding
- Sliding-rail variant available as WN428-EX
- Optional WA-PLATE-HD to enhance loading capacity
Specifications
Technical specifications.
| Product Category | Server Cabinet |
|---|---|
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Industry Standard | EIA-310 |
| Color | Black (RAL9011) |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm |
| Cooling | Pre-installed 1 × 120mm 120V AC fan set · up to 3 sets on top (p/n WA-SF120-2FAN) |
| Security | Front, rear, and side-panel locks |
| Mounting | Fully adjustable 19" rails · 50× M5 screws and cage nuts included |
| Certification | RoHS compliant |
| Model Number | WN428 |
| Form Factor | 42U |
| Cabinet Width | 600 mm class (23.50") |
| Cabinet Depth | 800 mm (31.50") |
| Supported Chassis Depth | 27.5" and under |
| Internal Dimensions | Outer post-to-post 26.5" max (height and depth) |
| Dimensions | 23.50" × 82.50" × 31.50" · 596.9 mm × 2,095.5 mm × 800.1 mm |
| Notes | For HP/Dell/IBM servers with sliding rails, ask sales about WN428-EX. Optional WA-PLATE-HD to enhance loading. HTS code: 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WN428 is deployed.
Standard 42U Rows
Full 42U RU count for colocation-style server and network stacks.
Shallow Aisles
800 mm depth / 27.5" chassis class when 1000 mm cabinets will not fit.
Data Center
Lockable 19" cabinet at conventional 42U height.
OEM/ODM Cabinet Programs
Silk-screen doors; sliding-rail option WN428-EX.
Customization Options
Adapt the WN428 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
