Heavy-duty Network & Server Racks / WN4210
42U 1000mm Depth Rack-mount Server Cabinet
A 42U × 1000 mm Claytek WN cabinet for longer enterprise chassis at conventional data-center height.
Product Overview
What the WN4210 is built for.
WN4210 is the 42U × 1000 mm Claytek WN enclosed cabinet — 23.50" × 82.50" × 39.50" (596.9 × 2,095.5 × 1,003.3 mm). Supported chassis depth is 34" and under; internal post-to-post is 34.25" max. It pairs WN428’s 42U height with WN3610’s extra depth for longer HP/Dell/IBM-class servers plus switches and PDUs. Sliding-rail option: WN4210-EX. Optional WA-PLATE-HD for higher loading.
Key Features
Engineered for reliability and integration.
- 42U high and 1000 mm (39.50") deep enclosed cabinet
- Fits chassis 34" and under (internal post-to-post 34.25" max)
- Overall size 23.50" W × 82.50" H × 39.50" D (596.9 × 2,095.5 × 1,003.3 mm)
- Same height as WN428, same depth class as WN3610

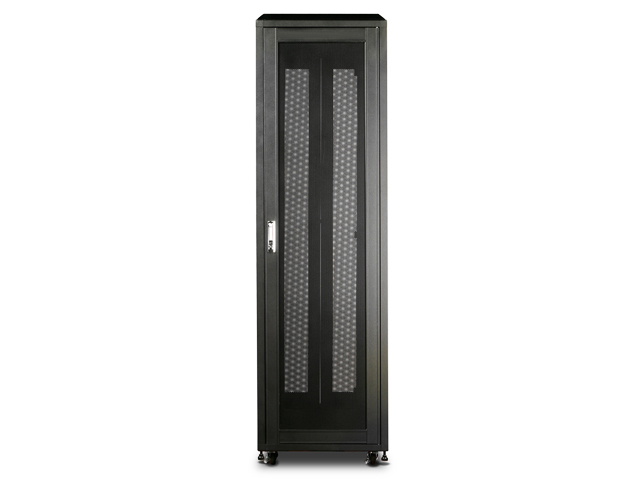

- Vented doors plus a pre-installed 120mm AC fan set (up to 3 sets, p/n WA-SF120-2FAN)

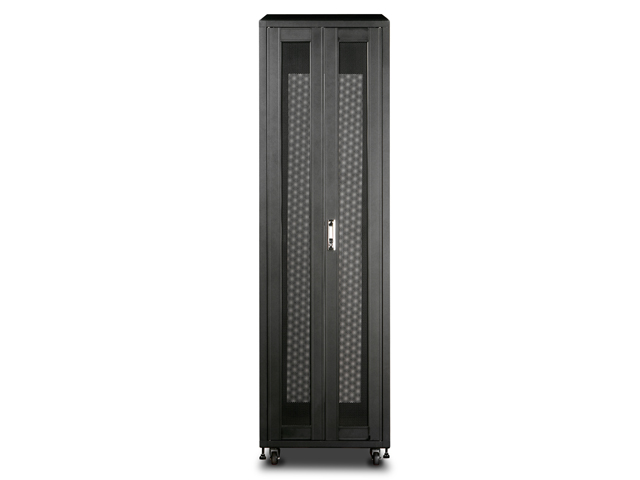

- Double rear doors for service access with less swing clearance

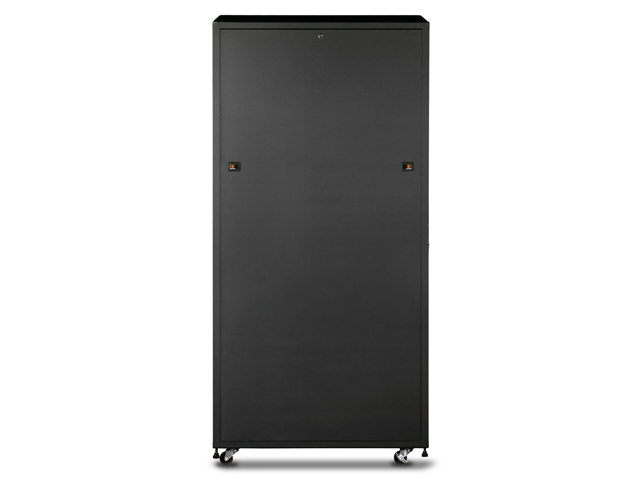

- Front, rear, and side-panel locks to prevent unauthorized access
- Cable entry from top/bottom and front/back

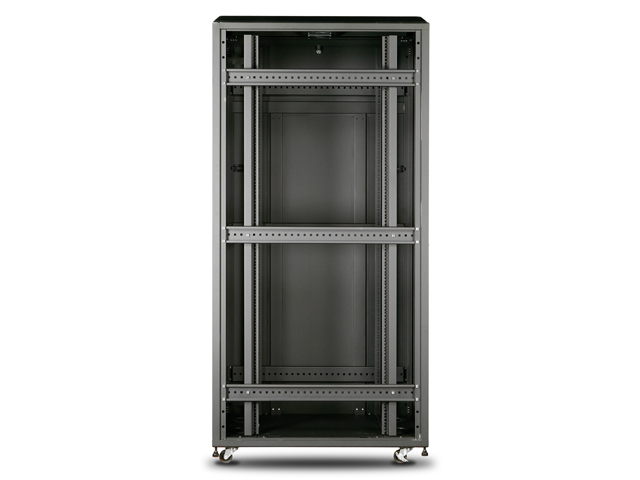

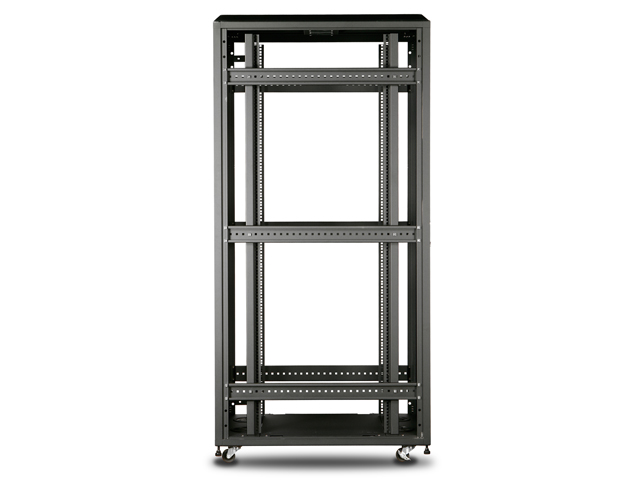

- Horizontally adjustable 19" mounting rails
- Locking casters and 50 sets of M5 screws and cage nuts included
- Optional silk-screen front door for OEM branding
- Sliding-rail variant available as WN4210-EX
- Optional WA-PLATE-HD to enhance loading capacity
Specifications
Technical specifications.
| Product Category | Server Cabinet |
|---|---|
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Industry Standard | EIA-310 |
| Color | Black (RAL9011) |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm |
| Cooling | Pre-installed 1 × 120mm 120V AC fan set · up to 3 sets on top (p/n WA-SF120-2FAN) |
| Security | Front, rear, and side-panel locks |
| Mounting | Fully adjustable 19" rails · 50× M5 screws and cage nuts included |
| Certification | RoHS compliant |
| Model Number | WN4210 |
| Form Factor | 42U |
| Cabinet Width | 600 mm class (23.50") |
| Cabinet Depth | 1000 mm (39.50") |
| Supported Chassis Depth | 34" and under |
| Internal Dimensions | Outer post-to-post 34.25" max (height and depth) |
| Dimensions | 23.50" × 82.50" × 39.50" · 596.9 mm × 2,095.5 mm × 1,003.3 mm |
| Notes | For HP/Dell/IBM servers with sliding rails, ask sales about WN4210-EX. Optional WA-PLATE-HD to enhance loading. HTS code: 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WN4210 is deployed.
Enterprise 42U Rows
34" chassis clearance at standard 42U height for longer servers.
Mixed Compute + Network
Depth for servers plus RU for switches and PDUs.
Data Center
Lockable 19" 42U × 1000 mm cabinet.
OEM/ODM Cabinet Programs
Silk-screen doors; sliding-rail option WN4210-EX.
Customization Options
Adapt the WN4210 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
