Heavy-duty Network & Server Racks / WN54120-SR
54U 600mm Width, 1200mm Depth Rack-mount Server Cabinet
A 54U anti-seismic server cabinet: 600 mm wide × 1200 mm deep — the narrow counterpart to WN54120 Network Rack.
Product Overview
What the WN54120-SR is built for.
WN54120 Server Rack is the 54U assembled server cabinet, 600 mm wide and 1200 mm deep — 23.62" × 113.38" × 47.24" (599.9 × 2,879.9 × 1,199.9 mm). Supported chassis depth is 34" and under. It shares the 54U × 1200 mm envelope with WN54120 Network Rack but is 200 mm narrower (600 mm vs 800 mm), matching the width class of WN428/WN4210. White finish, UL2416, GR-63 Zone 4 at 1763 lb, assembled SPCC steel, optional seismic rods. Test report available on request.
Specifications
Technical specifications.
| Model Number | WN54120 Server Rack |
|---|---|
| Product Category | Server Cabinet |
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Form Factor | 54U |
| Cabinet Width | 600 mm (23.62") |
| Cabinet Depth | 1200 mm (47.24") |
| Supported Chassis Depth | 34" and under |
| Industry Standard | EIA-310 · ANSI/EIA RS-310-C/D |
| Color | White |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs · GR-63 Zone 4: 1763 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm · assembled steel structure |
| Certification | RoHS · UL2416 · GR-63 Zone 4 |
| Dimensions | 23.62" × 113.38" × 47.24" · 599.9 mm × 2,879.9 mm × 1,199.9 mm |
| Notes | Official P/N: WN54120 Server Rack (not the 800 mm Network Rack). Optional seismic rods. 10 cm drop test at 2204 lb. Test report available upon request. |
Key Features
Engineered for reliability and integration.
- 54U server cabinet — 600 mm (23.62") wide × 1200 mm (47.24") deep
- Fits chassis 34" and under
- Overall size 23.62" W × 113.38" H × 47.24" D (599.9 × 2,879.9 × 1,199.9 mm)
- Same 54U × 1200 mm class as WN54120 Network Rack, 200 mm narrower
- Width class of WN4210 (≈600 mm), with 12 more RU and 200 mm more depth
- UL2416 certified · GR-63 Zone 4 at 1763 lb loading

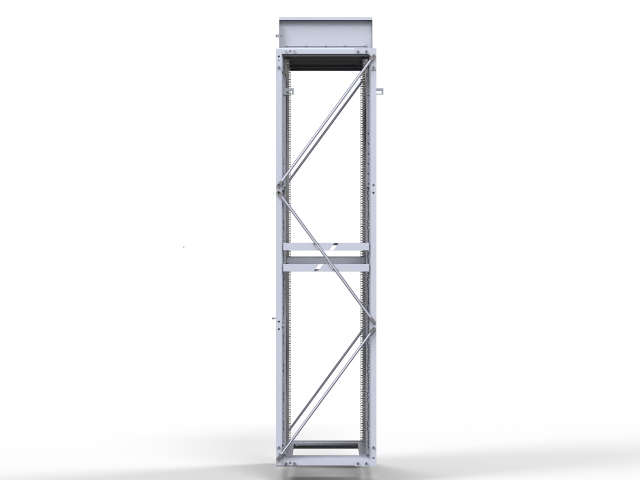

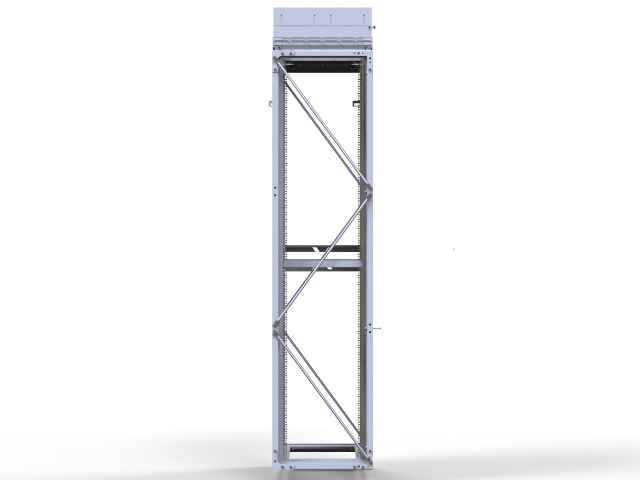

- Assembled SPCC steel; optional 4 detachable molded rods
- White finish · fully customizable · test report on request
Applications
Where the WN54120-SR is deployed.
High Server Rows
54U at 600 mm width for compute-dense racks in 1200 mm-deep aisles.
Seismic Data Centers
UL2416 and GR-63 Zone 4 certified assembled structure.
Standard 600 mm Grid
Matches WN428/WN4210 width; extra height and depth.
OEM/ODM Cabinet Programs
Fully customizable; test report available upon request.
Customization Options
Adapt the WN54120-SR to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WN54120-SR is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WN54120-SR with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WN54120-SR and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
