Heavy-duty Network & Server Racks / WN5212DP
52U 1200mm Depth Dual Panels Rackmount Server Cabinet
A 52U dual-panel Claytek cabinet, 1200 mm deep, for extra-high mixed racks (not compatible with HP/Dell/IBM sliding rails).
Product Overview
What the WN5212DP is built for.
WN5212DP is a 52U dual-panel rackmount server cabinet, 1200 mm deep — 29.50" × 99.80" × 47.20" (749.3 × 2,534.9 × 1,198.9 mm). Supported chassis depth is 28" and under — shallower than the 34" 1000/1200 mm WN models. Dual panels distinguish it from single-door 42U/54U cabinets. Official notes: not compatible with HP/Dell/IBM servers equipped with sliding rails; contact sales for assembly and shipping method. 120 mm AC cooling fans are part of the WN feature set. Loading 2200 / 880 / 660 lbs.
Key Features
Engineered for reliability and integration.
- 52U dual-panel enclosed cabinet, 1200 mm (47.20") deep
- Fits chassis 28" and under — not the 34" class of WN4210 / WN54120
- Overall size 29.50" W × 99.80" H × 47.20" D (749.3 × 2,534.9 × 1,198.9 mm)
- Dual-panel construction vs single-door 42U/54U WN cabinets
- 120mm AC cooling fans for cabinet-level air circulation

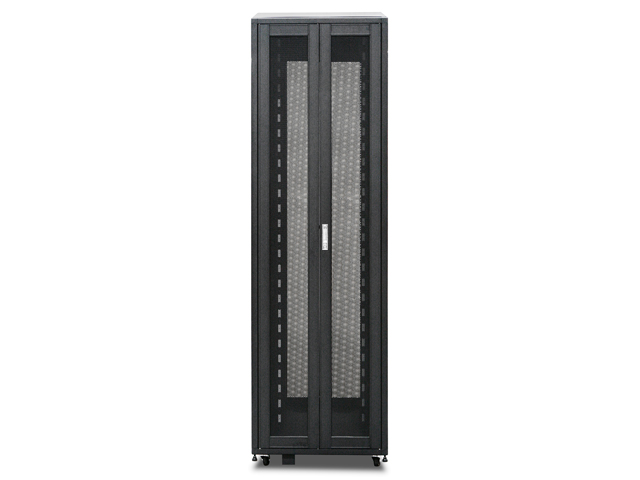

- Double rear doors for service access with less swing clearance
- Front, rear, and side-panel locks to prevent unauthorized access
- Cable entry from top/bottom and front/back
- Horizontally adjustable 19" mounting rails
- Locking casters and 50 sets of M5 screws and cage nuts included
- Optional silk-screen front door for OEM branding
- Not compatible with HP/Dell/IBM sliding-rail servers
- Contact sales for assembly and shipping method
Specifications
Technical specifications.
| Product Category | Server Cabinet |
|---|---|
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Industry Standard | EIA-310 |
| Color | Black (RAL9011) |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm |
| Cooling | Pre-installed 1 × 120mm 120V AC fan set · up to 3 sets on top (p/n WA-SF120-2FAN) |
| Security | Front, rear, and side-panel locks |
| Mounting | Fully adjustable 19" rails · 50× M5 screws and cage nuts included |
| Certification | RoHS compliant |
| Model Number | WN5212DP |
| Form Factor | 52U |
| Cabinet Width | 29.50" (749.3 mm) |
| Cabinet Depth | 1200 mm (47.20") |
| Supported Chassis Depth | 28" and under |
| Dimensions | 29.50" × 99.80" × 47.20" · 749.3 mm × 2,534.9 mm × 1,198.9 mm |
| Notes | Not compatible with HP/Dell/IBM servers with sliding rails. Contact sales for assembly and shipping. HTS code: 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WN5212DP is deployed.
Extra-High Mixed Racks
52U when 42U is not enough RU and 54U is more height than needed.
1200 mm Deep Rows
47.20" depth for deeper layouts; chassis 28" and under.
Data Center / Lab
Lockable dual-panel 19" cabinet.
OEM/ODM Cabinet Programs
Silk-screen doors; confirm shipping/assembly with sales.
Customization Options
Adapt the WN5212DP to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
