Heavy-duty Network & Server Racks / WN54120-NR
54U 800mm Width, 1200mm Depth Rack-mount Network Server Cabinet
A 54U anti-seismic network cabinet: 800 mm wide × 1200 mm deep, UL2416 and GR-63 Zone 4 certified.
Product Overview
What the WN54120-NR is built for.
WN54120 Network Rack is the 54U assembled network cabinet, 800 mm wide and 1200 mm deep — 31.50" × 113.38" × 47.24" (800.1 × 2,879.9 × 1,199.9 mm). Supported chassis depth is 34" and under. It is the taller counterpart to WN42120 (same 800 mm width / 1200 mm depth, 12 more RU). White finish, UL2416, GR-63 Zone 4 at 1763 lb, assembled SPCC steel, optional molded seismic rods, 10 cm drop test at 2204 lb. Distinct from WN54120 Server Rack, which is 600 mm wide. Test report available on request.
Key Features
Engineered for reliability and integration.
- 54U network cabinet — 800 mm (31.50") wide × 1200 mm (47.24") deep
- Fits chassis 34" and under
- Overall size 31.50" W × 113.38" H × 47.24" D (800.1 × 2,879.9 × 1,199.9 mm)
- Same 800 mm width as WN42120, 12 more RU (54U vs 42U)
- 200 mm wider than WN54120 Server Rack (600 mm) at the same 54U × 1200 mm envelope
- UL2416 certified · GR-63 Zone 4 at 1763 lb loading

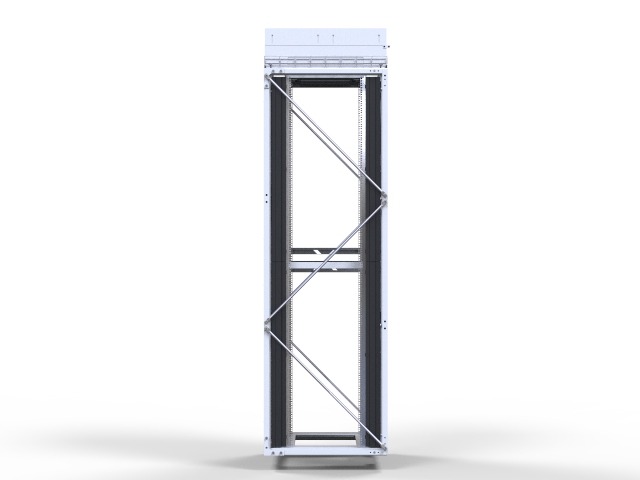

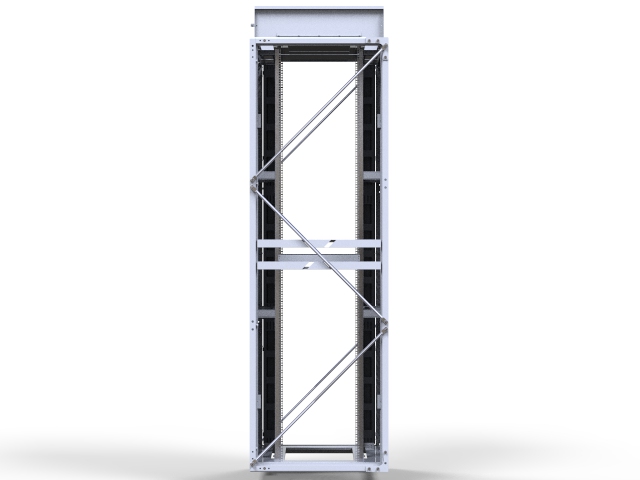

- Assembled SPCC steel; optional 4 detachable molded rods for seismic dissipation
- White finish · fully customizable · test report on request
Specifications
Technical specifications.
| Model Number | WN54120 Network Rack |
|---|---|
| Product Category | Network Cabinet |
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Form Factor | 54U |
| Cabinet Width | 800 mm (31.50") |
| Cabinet Depth | 1200 mm (47.24") |
| Supported Chassis Depth | 34" and under |
| Industry Standard | EIA-310 · ANSI/EIA RS-310-C/D |
| Color | White |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs · GR-63 Zone 4: 1763 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm · assembled steel structure |
| Certification | RoHS · UL2416 · GR-63 Zone 4 |
| Dimensions | 31.50" × 113.38" × 47.24" · 800.1 mm × 2,879.9 mm × 1,199.9 mm |
| Notes | Official P/N: WN54120 Network Rack (not the 600 mm Server Rack). Optional seismic rods. 10 cm drop test at 2204 lb. Test report available upon request. |
Applications
Where the WN54120-NR is deployed.
High Network / Patch Rows
54U and 800 mm width for dense cable, PDU, and switch layouts.
Seismic Data Centers
UL2416 and GR-63 Zone 4 certified assembled structure.
1200 mm Deep Aisles
Same depth class as WN42120, with more vertical RU.
OEM/ODM Cabinet Programs
Fully customizable; test report available upon request.
Customization Options
Adapt the WN54120-NR to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WN54120-NR is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WN54120-NR with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WN54120-NR and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
