Heavy-duty Network & Server Racks / WN42120
42U 800mm Width, 1200mm Depth Rack-mount Network Server Cabinet
A 42U anti-seismic network cabinet: 800 mm wide × 1200 mm deep, UL2416 and GR-63 Zone 4 certified.
Product Overview
What the WN42120 is built for.

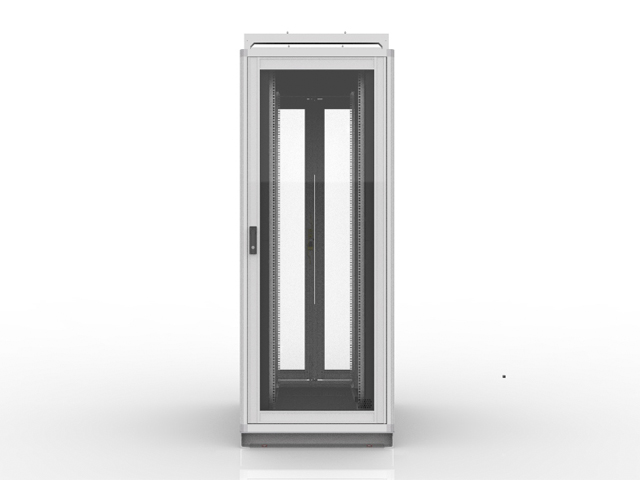

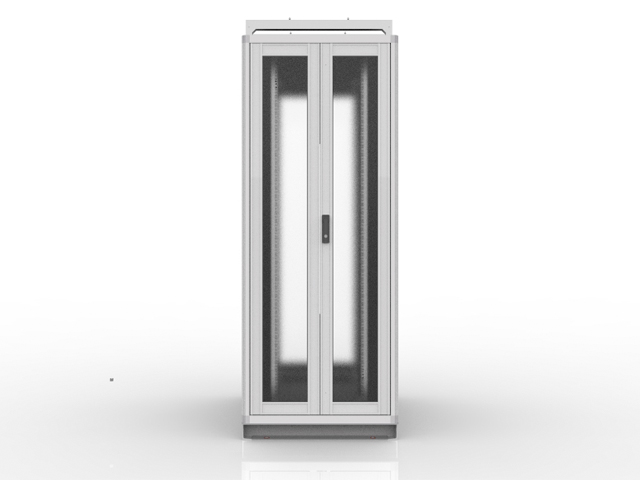

WN42120 Network Rack is a 42U assembled network cabinet, 800 mm wide and 1200 mm deep — 31.50" × 82.50" × 47.24" (800.1 × 2,095.5 × 1,199.9 mm). Supported chassis depth is 34" and under. Unlike the 600 mm-wide WN428/WN4210 server cabinets, this SKU is 800 mm wide for extra side space (cable, PDU, and airflow). It is UL2416 certified, GR-63 Zone 4 certified at 1763 lb, finished in white, and uses an assembled SPCC steel structure with optional detachable molded rods for seismic energy dissipation. Official gallery publishes three product photos for this SKU. Test report available on request.
Key Features
Engineered for reliability and integration.
- 42U network cabinet — 800 mm (31.50") wide × 1200 mm (47.24") deep
- Fits chassis 34" and under
- Overall size 31.50" W × 82.50" H × 47.24" D (800.1 × 2,095.5 × 1,199.9 mm)
- 200 mm wider than WN428/WN4210 (600 mm-class) at the same 42U height
- UL2416 certified · GR-63 Zone 4 at 1763 lb loading
- Assembled SPCC steel structure; optional 4 detachable molded rods for seismic dissipation
- Vertical 10 cm drop test with 2204 lb loading without structural damage (per official notes)
- White finish · ANSI/EIA RS-310-C/D · fully customizable
- Test report available upon request
Specifications
Technical specifications.
| Model Number | WN42120 Network Rack |
|---|---|
| Product Category | Network Cabinet |
| Brand | Claytek |
| Series | WN — Cloud Server IT Rack |
| Form Factor | 42U |
| Cabinet Width | 800 mm (31.50") |
| Cabinet Depth | 1200 mm (47.24") |
| Supported Chassis Depth | 34" and under |
| Industry Standard | EIA-310 · ANSI/EIA RS-310-C/D |
| Color | White |
| Loading Capacity | Static without casters: 2200 lbs · Static with casters: 880 lbs · Dynamic: 660 lbs · GR-63 Zone 4: 1763 lbs |
| Material | Side panel: SPCC 0.8mm · Horizontal rails: SPCC 2.0mm · Vertical rails: SPCC 2.0mm · Top panel: SPCC 1.2mm · assembled steel structure |
| Security | Lockable enclosure (WN series) |
| Certification | RoHS · UL2416 · GR-63 Zone 4 |
| Dimensions | 31.50" × 82.50" × 47.24" · 800.1 mm × 2,095.5 mm × 1,199.9 mm |
| Notes | Fully customizable. Optional 4 detachable molded rods for seismic dissipation. 10 cm vertical drop test at 2204 lb. Test report available upon request. |
Applications
Where the WN42120 is deployed.
Network / Patch Rows
800 mm width gives extra side room for cable and PDU compared with 600 mm server cabinets.
Seismic Data Centers
UL2416 and GR-63 Zone 4 certified assembled structure.
Deep 1200 mm Aisles
47.24" depth and 34" chassis clearance for longer network gear.
OEM/ODM Cabinet Programs
Fully customizable assembled steel cabinet.
Customization Options
Adapt the WN42120 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WN42120 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WN42120 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WN42120 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
